M3SR Series 4100 Operating Concept
3.6 Operating Manual 6175.4760.02 – 01
3.2.1 Radio Front Panel
The front panel contains several buttons, volume controls and the ERASE button, which are
used to make a limited number of radio settings. LEDs are available to indicate the status of
the radio.

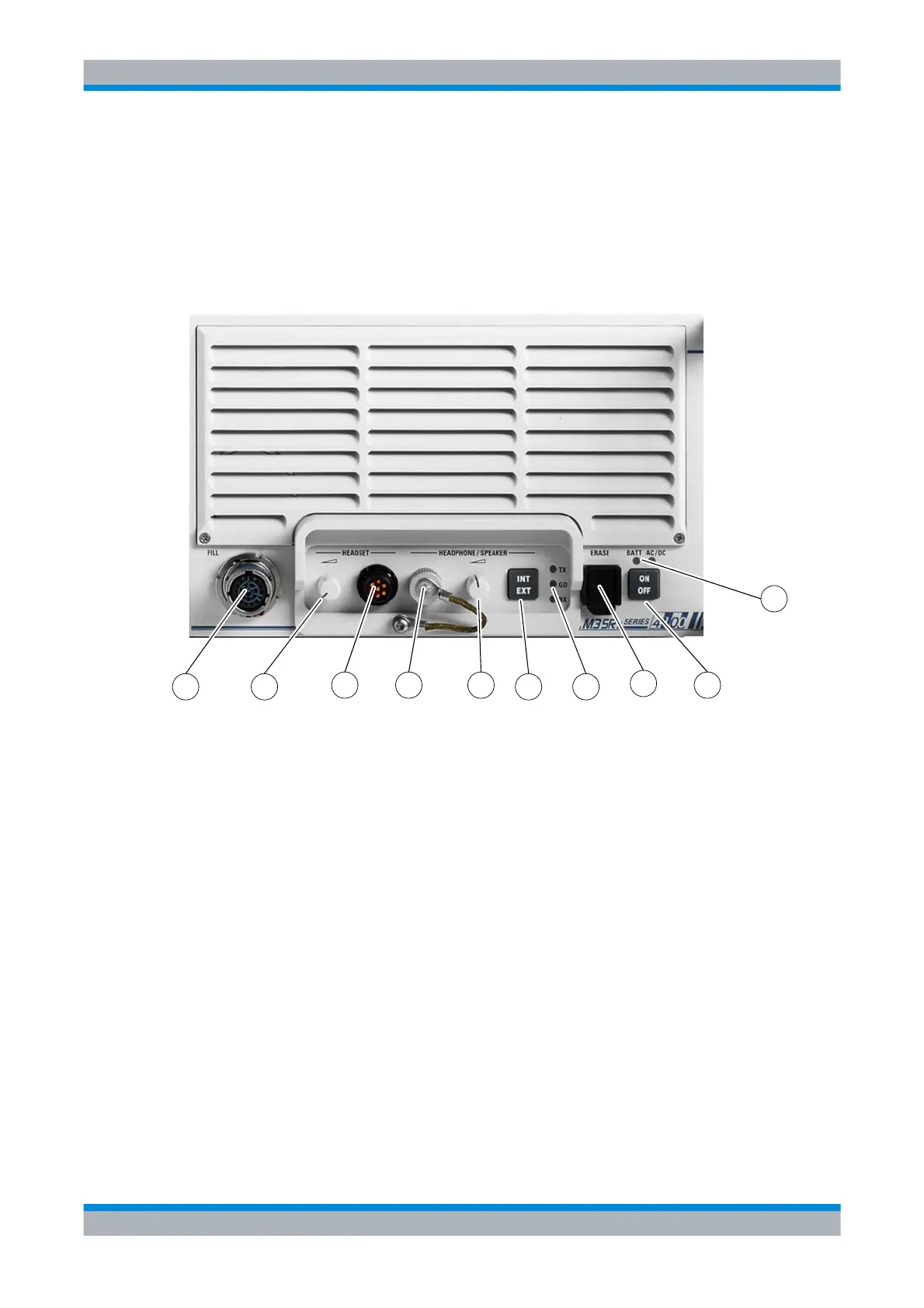

Figure 3.4 Front Panel
1 Indicators for used power supply (battery, AC/DC)
2 ON/OFF button
3 ERASE button
4 Radio status indicators (TX, GO, RX)
5 INT/EXT button
6 Volume control (loudspeaker / headphone)
7 Connector for the loudspeaker / headphone
8 Connector for the headset
9 Volume control (headset)
10 Connector for fillgun
ICN-4D-C-231000-R-D0894-00100-A-01-1
1
2
3
45
6
7
8
9 10
