2.3 Installing a drum protection sheet
1. Pull out the EPU tray.
P. 4-91"4.6.1 Pulling out the process unit (EPU tray)"

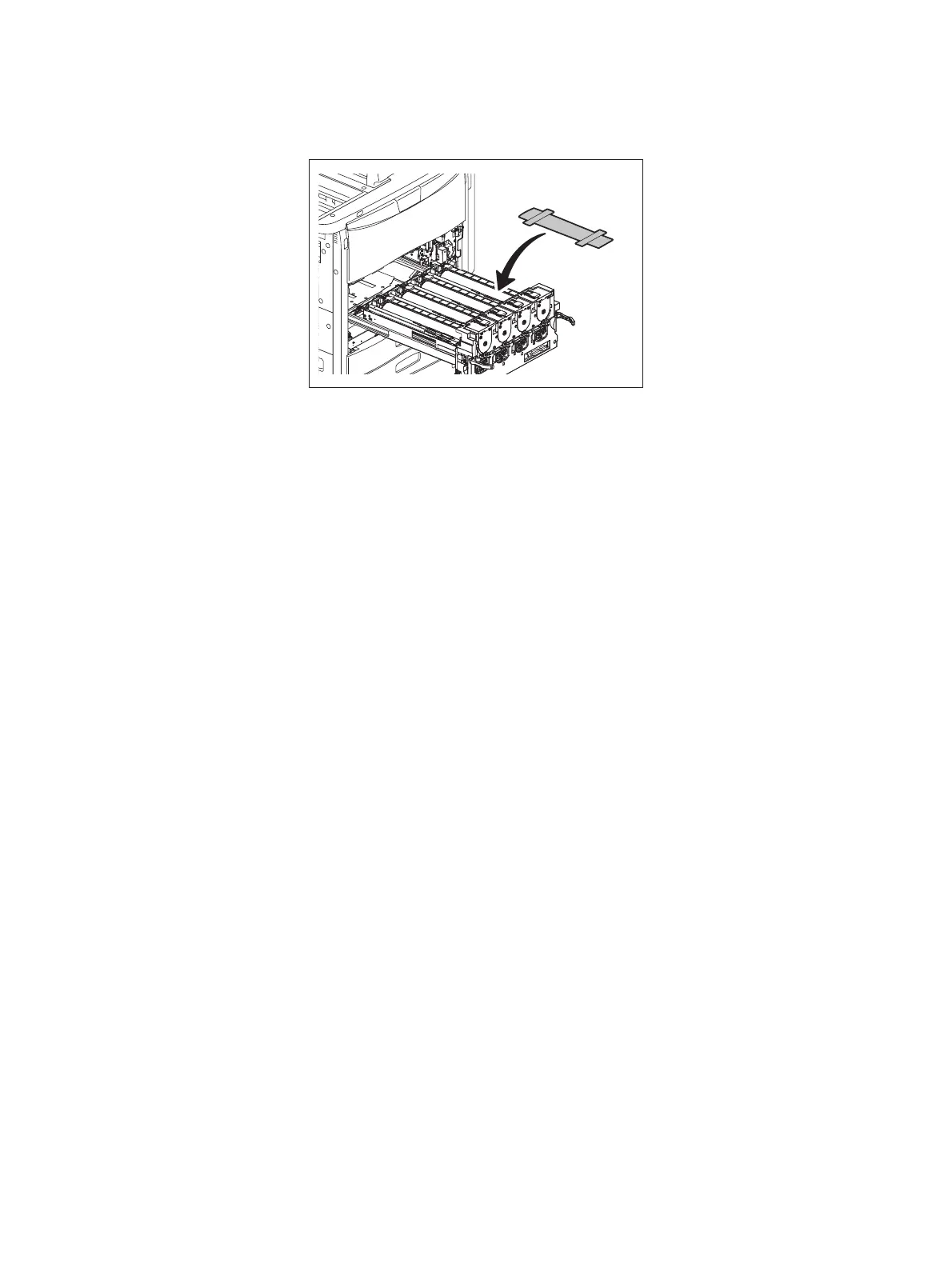

2. Install a drum protection sheet on the K drum.
3. Push the EPU tray in, and then reassemble the equipment in the procedure reverse to
disassembly.
Notes:
• It is recommended to keep the drum protection sheet removed at unpacking.
• Store the drum protection sheet in a place without high temperature and humidity, direct
sunlight or dust.
• Do not scratch or bend the drum protection sheet. Avoid adhesion of dust, dirt or foreign
matter, especially things that may damage the surface of the drums or the transfer belt (e.g.
hard matter or matter that is highly adhesive, organic or chemical matter, grease) to the drum
protection sheet.
• Do not use a drum protection sheet that is damaged or deformed, or one with any
abnormality.
