4
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
DISASSEMBLY and REPLACEMENT
4 - 101

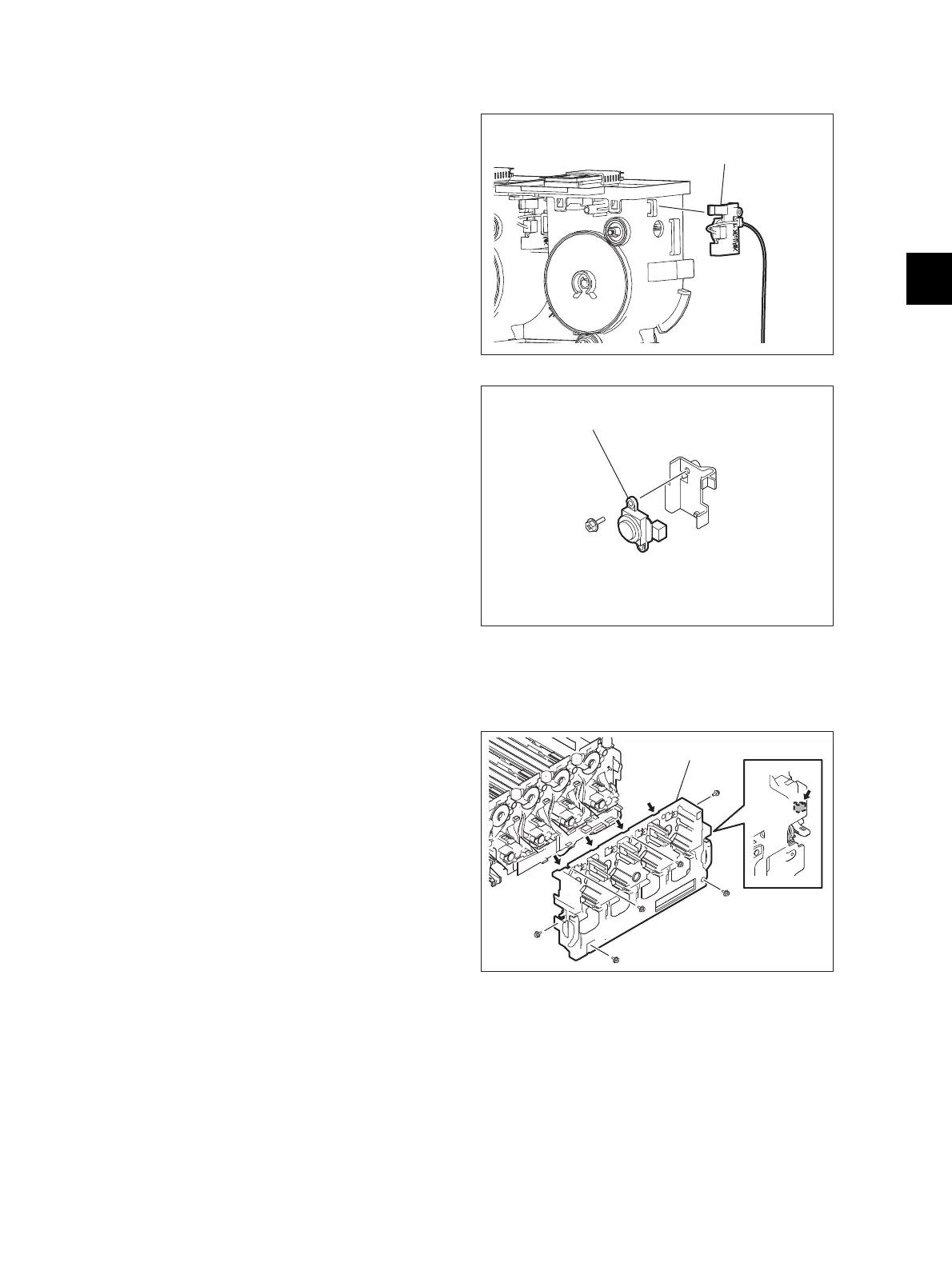

4.6.12 Sub-hopper toner sensor (S38/S39/S40/S41)
4.6.13 EPU cover
(1) Take off the sub-hopper.
P. 4-100"4.6.11 Sub-hopper"
(2) Discharge toner.
Notes:
When taking off the sensor while toner is still
in the sub-hopper, be careful not to spill the
toner out of the sub-hopper.
If the toner surface is higher than the sensor
installation position, it is recommended to
mix the toner by rotating the gear.
(3) Release 1 lock and take off the holder by
tilting it.
Fig. 4-294
(4) Disconnect 1 connector and remove 1 screw.
Then take off the sub-hopper toner sensor.
Fig. 4-295
(1) Take off the sub-hopper.
P. 4-100"4.6.11 Sub-hopper"
(2) Remove 6 screws and release 5 latches.
Then pull out the EPU cover toward you.
Fig. 4-296
To Next Page
