Toshiba e-STUDIO 6550C e-STUDIO 5560C User Manual

e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY and REPLACEMENT
4 - 132
4.6.48 Ozone suctioning fan (F24)
(1) Take off the left lower cover.
 P. 4-4"4.1.11 Left lower cover"
(2) Take off the ozone filter-1.
 P. 4-125"4.6.41 Ozone filter-1"
(3) Take off the waste toner case.
 P. 4-123"4.6.38 Waste toner amount
detection sensor (S13)"

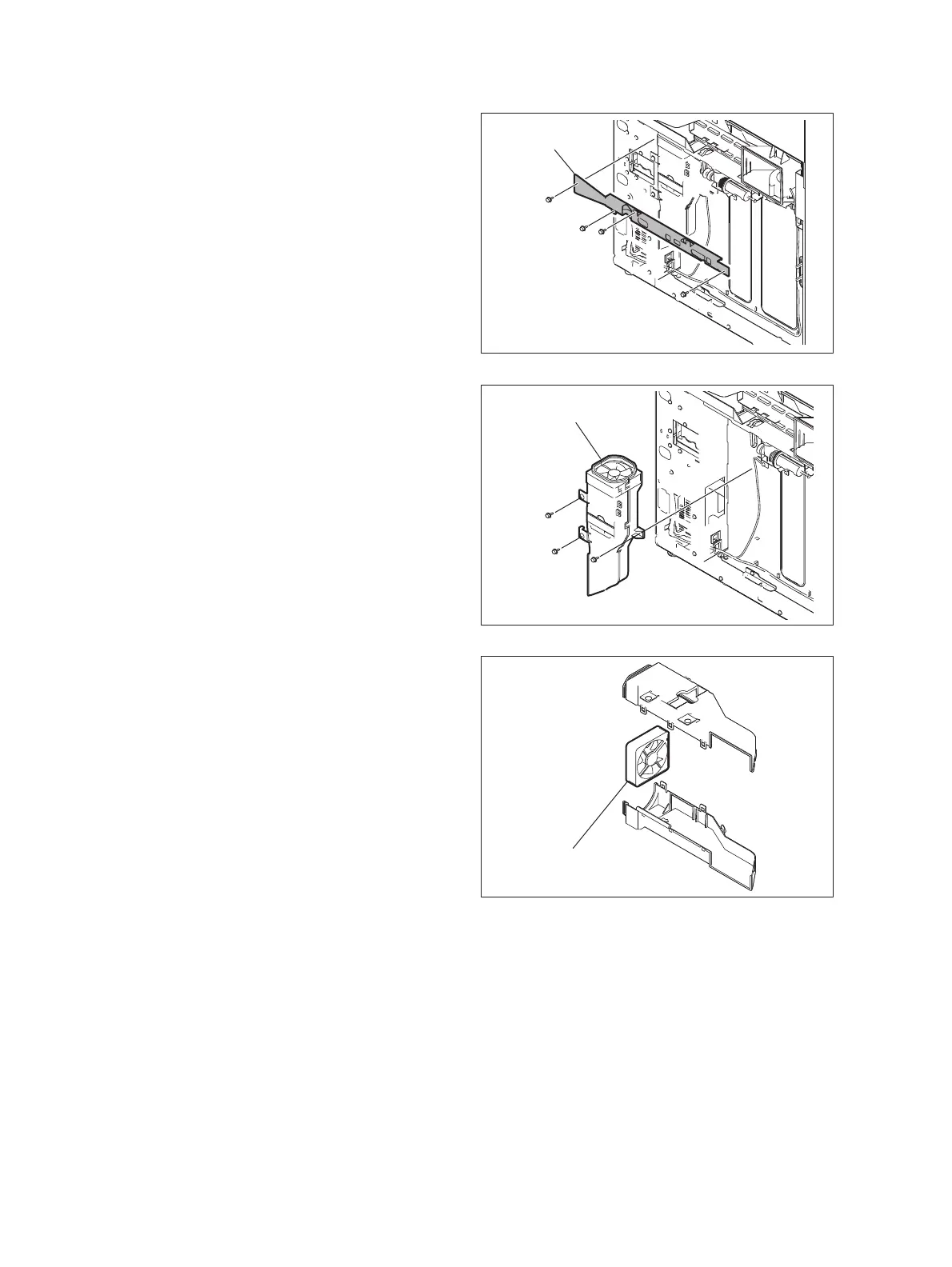

(4) Remove 4 screws, and then take off the stay.
Fig. 4-386
(5) Remove 3 screws, disconnect 1 connector,
and then take off the duct.
Fig. 4-387
(6) Release 7 latches to separate the duct from
the fan. Then take off the ozone suctioning
fan (F24).
Fig. 4-388
Stay
Duct
Ozone suctioning fan
