DISASSEMBLY and REPLACEMENT
4 - 230

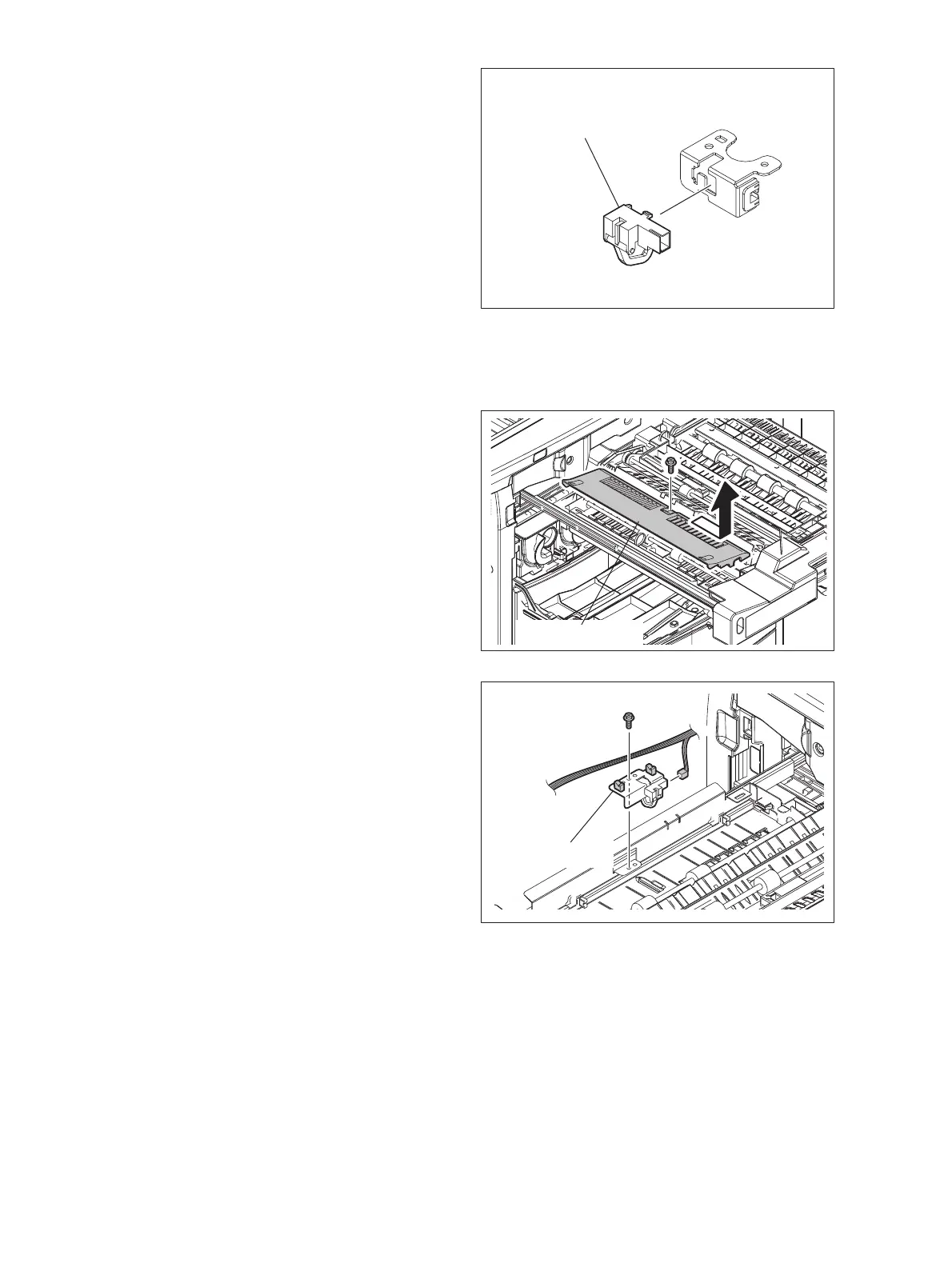

4.10.26 Bridge unit path exit sensor (S56)
(5) Take off the bridge unit path entrance sensor
from the sensor bracket.
Fig. 4-667
(1) Open the front cover and then pull out the
bridge unit.
(2) Remove 1 screw and then take off transport
guide-4 by sliding it.
Fig. 4-668
(3) Release the harness from 2 clamps and then
disconnect the connector.
(4) Take off the sensor bracket by removing 1
screw.
Fig. 4-669
Bridge unit path entrance sensor
Transport guide-4
Sensor bracket
