Toshiba e-STUDIO 6550C e-STUDIO 5560C User Manual

e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY and REPLACEMENT
4 - 30

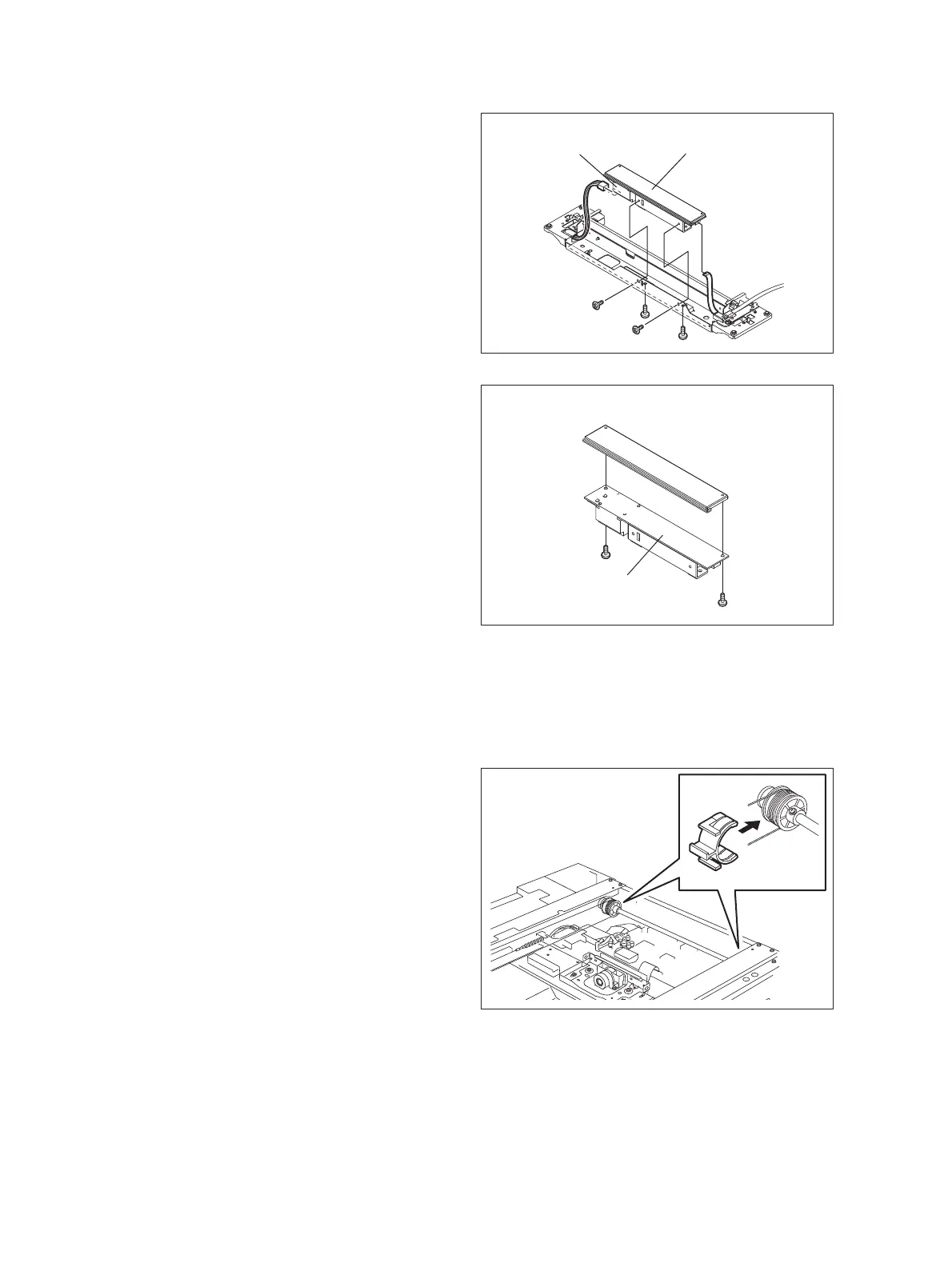

4.3.14 Inverter board (INV)
4.3.15 Carriage wire / carriage-2
[A] Carriage wire / carriage-2
(1) Take off the carriage-1.
 P. 4-28"4.3.13 Carriage-1"
(2) Disconnect 2 connectors.
(3) Remove 4 screws and take off the inverter
cover and inverter board.
Fig. 4-82
(4) Remove 2 screws and take off the inverter
board.
Fig. 4-83
(1) Take off the carriage-1.
 P. 4-28"4.3.13 Carriage-1"
(2) Attach the wire holder jigs to the pulleys to
prevent the wires from loosening.
Fig. 4-84
Inverter cover
Inverter board
Inverter board

Toshiba e-STUDIO 6550C e-STUDIO 5560C Specifications

General

Category	All in One Printer
Print Speed (Color)	55 ppm
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Paper Capacity	3, 700 sheets
Maximum Paper Size	A3
Type	Color
Scan Resolution	600 dpi
Connectivity	USB, Ethernet
Supported Paper Sizes	A4, A5, B5
