4.10.14 Bridge unit transport entrance motor (M4) / Reverse motor (M3)
(1) Take off the bridge unit.
 P. 4-213"4.10.11 Bridge unit"
(2) Remove 1 screw and the ground wire. Then
release the ground wire from 2 clamps.
(3) Release the harness from 2 clamps and then
disconnect 2 connectors.
(4) Disconnect the connector from the reverse
motor.

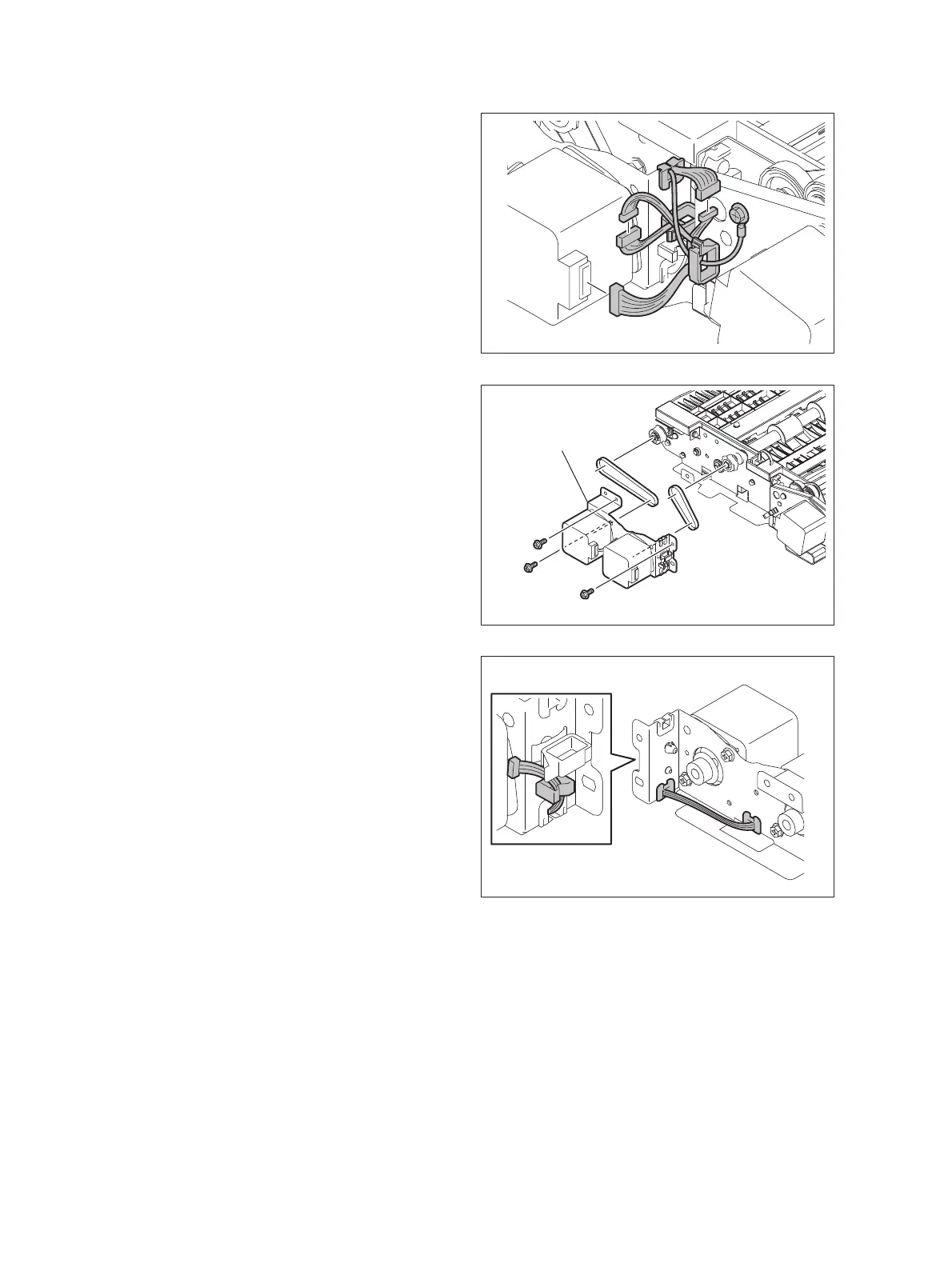

Fig. 4-626
(5) Remove 3 screws and then take off the
motor bracket.
Fig. 4-627
(6) Release the harness from 3 clamps.
Fig. 4-628
Motor bracket
