Toshiba e-STUDIO 6550C e-STUDIO 5560C User Manual

4
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
DISASSEMBLY and REPLACEMENT
4 - 3
4.1.6 Top left cover
4.1.7 FAX cover
4.1.8 Receiving tray

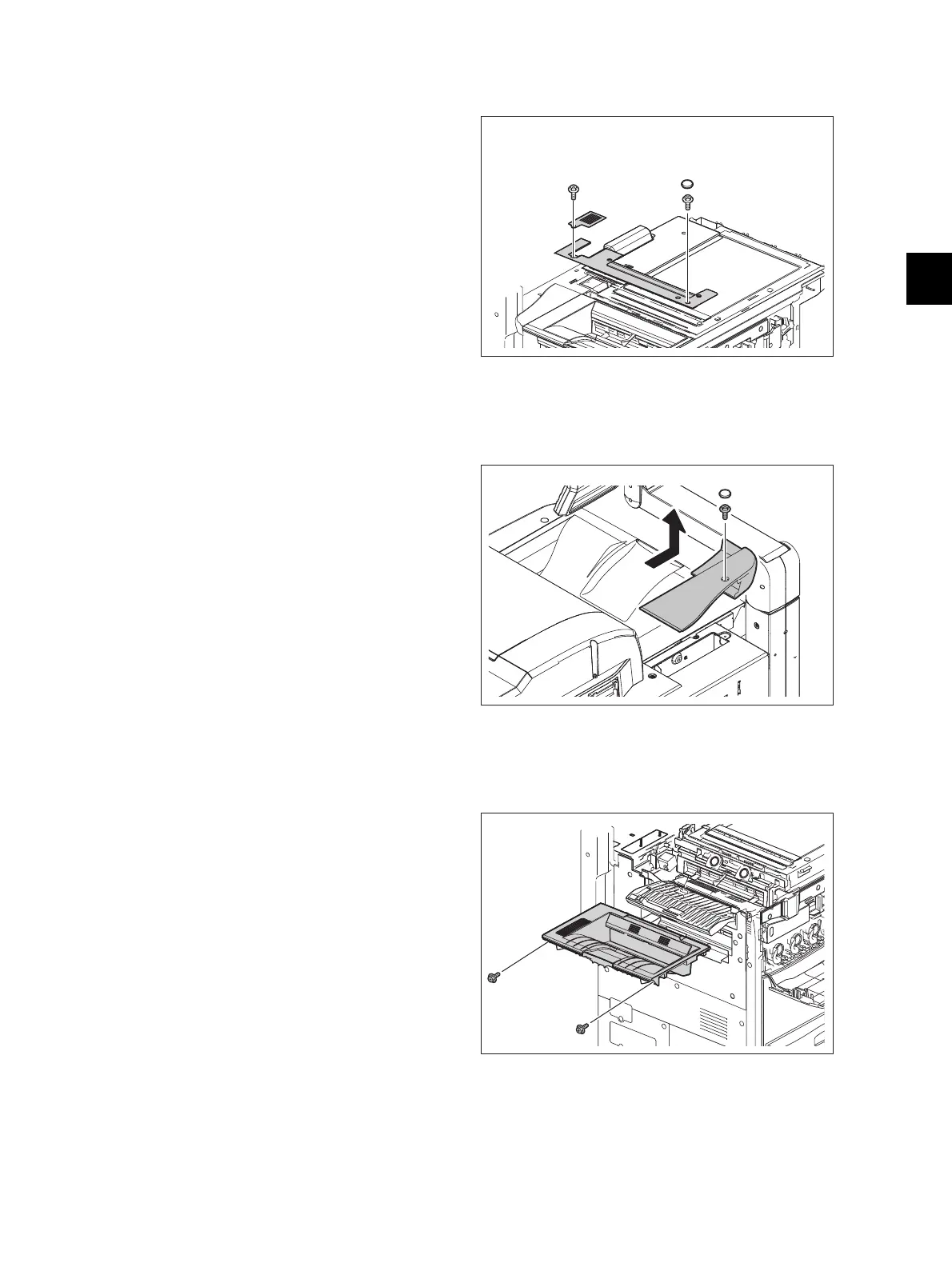

(1) Remove 2 screws and take off the filter cover
and top left cover.
Fig. 4-6
(1) Remove 1 screw and take off the FAX cover.
Notes:
When the optional FAX Unit (GD-1270) has
been installed, take off the modular cable
cover before the FAX cover.
Fig. 4-7
(1) Take off the top front cover.
 P. 4-2"4.1.5 Top front cover"
(2) Take off the top left cover.
 P. 4-3"4.1.6 Top left cover"
(3) Take off the FAX cover.
 P. 4-3"4.1.7 FAX cover"
(4) Open the reverse path cover.
(5) Remove 2 screws and take off the receiving
tray.
Fig. 4-8

Toshiba e-STUDIO 6550C e-STUDIO 5560C Specifications

General

Category	All in One Printer
Print Speed (Color)	55 ppm
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Paper Capacity	3, 700 sheets
Maximum Paper Size	A3
Type	Color
Scan Resolution	600 dpi
Connectivity	USB, Ethernet
Supported Paper Sizes	A4, A5, B5
