DISASSEMBLY and REPLACEMENT

4 - 107

4.6.21 V0 sensor shutter solenoid (K) (SOL) (e-STUDIO6550C/6570C

only)

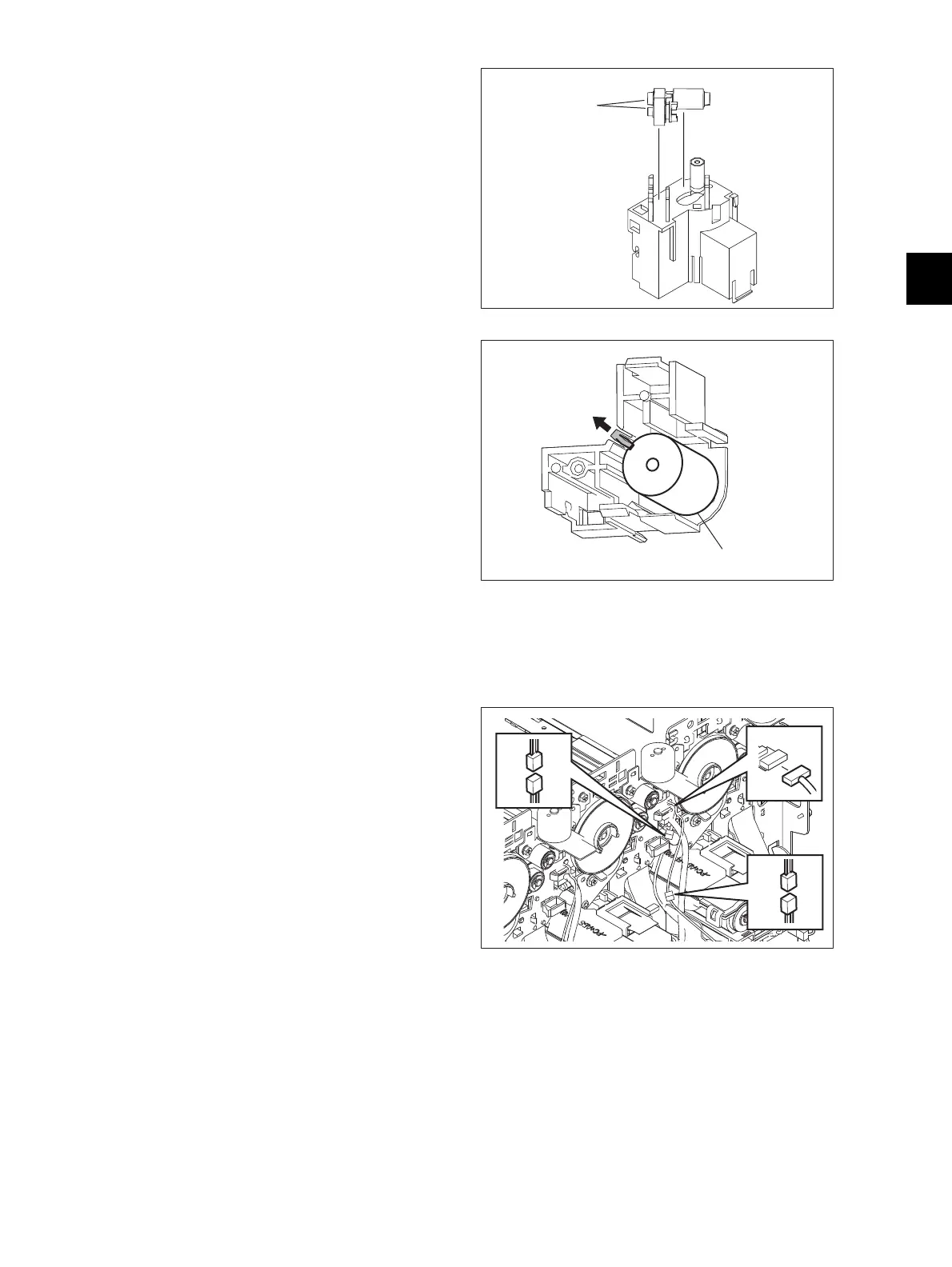

(5) Remove 2 gears.

Fig. 4-311

(6) Release 1 lock and then take off the needle

electrode cleaner motor.

Notes:

When installing the motor, engage the

locking part with the recessed part of the

motor.

Fig. 4-312

(1) Take off the EPU cover

 P. 4-101"4.6.13 EPU cover"

(2) Disconnect 3 connectors.

Fig. 4-313

Gear

Needle electrode cleaner motor
