4
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
DISASSEMBLY and REPLACEMENT
4 - 275

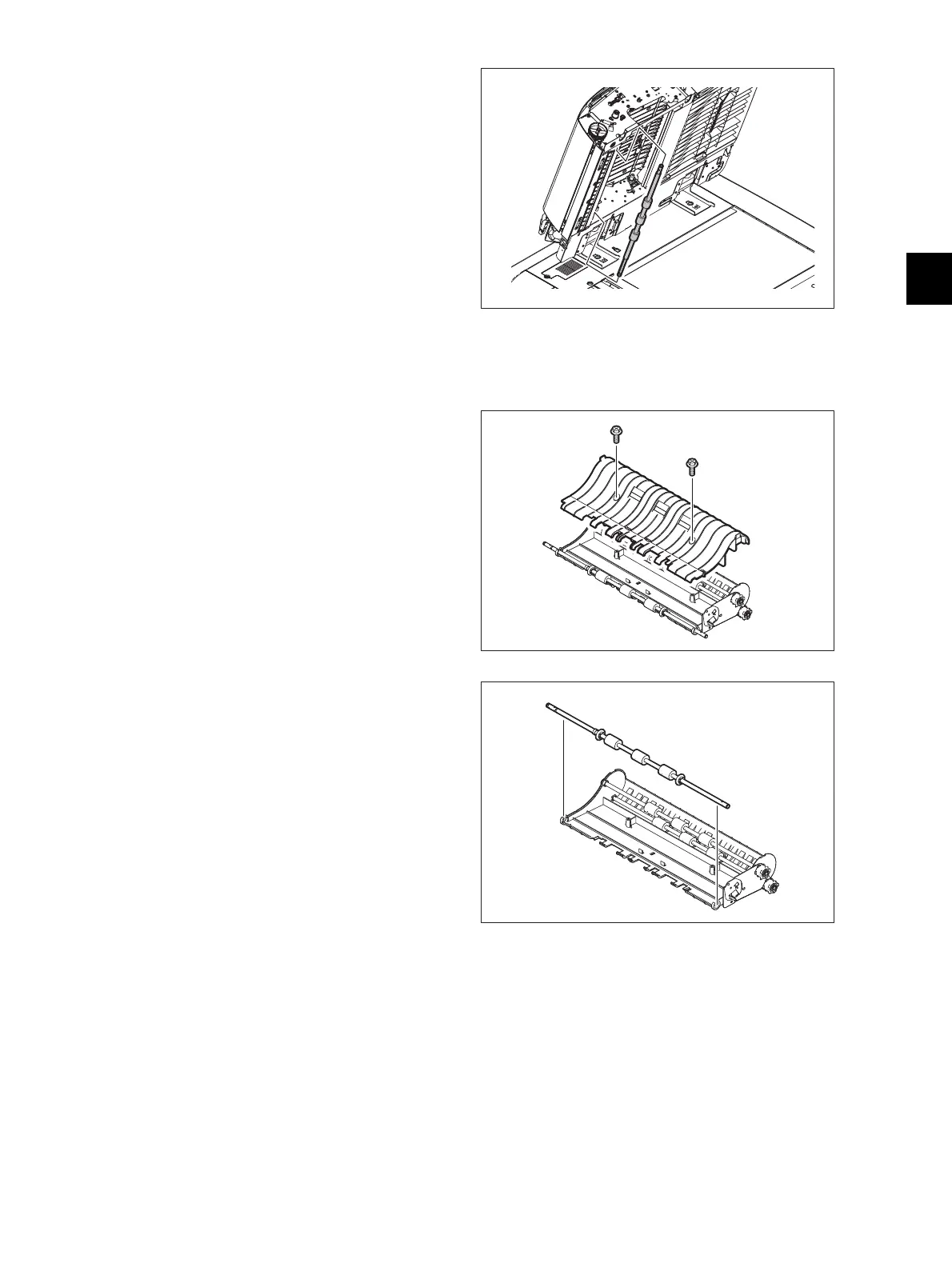

4.11.20 Exit roller
(6) Take off the reading end guide.
P. 4-264"4.11.11 Exit guide / Exit/reverse
guide / Reading end guide"
(7) Take off the reading end roller.
Notes:
When installing the reading end roller, refix
the loosened screw and tighten the belt
tension.
Fig. 4-802
(1) Take off the reading end guide.
P. 4-264"4.11.11 Exit guide / Exit/reverse
guide / Reading end guide"
(2) Remove 2 screws and take off the guide.
Fig. 4-803
(3) Take off the exit roller.
Fig. 4-804
To Next Page
