Toshiba e-STUDIO 6550C e-STUDIO 5560C User Manual

e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY and REPLACEMENT
4 - 280

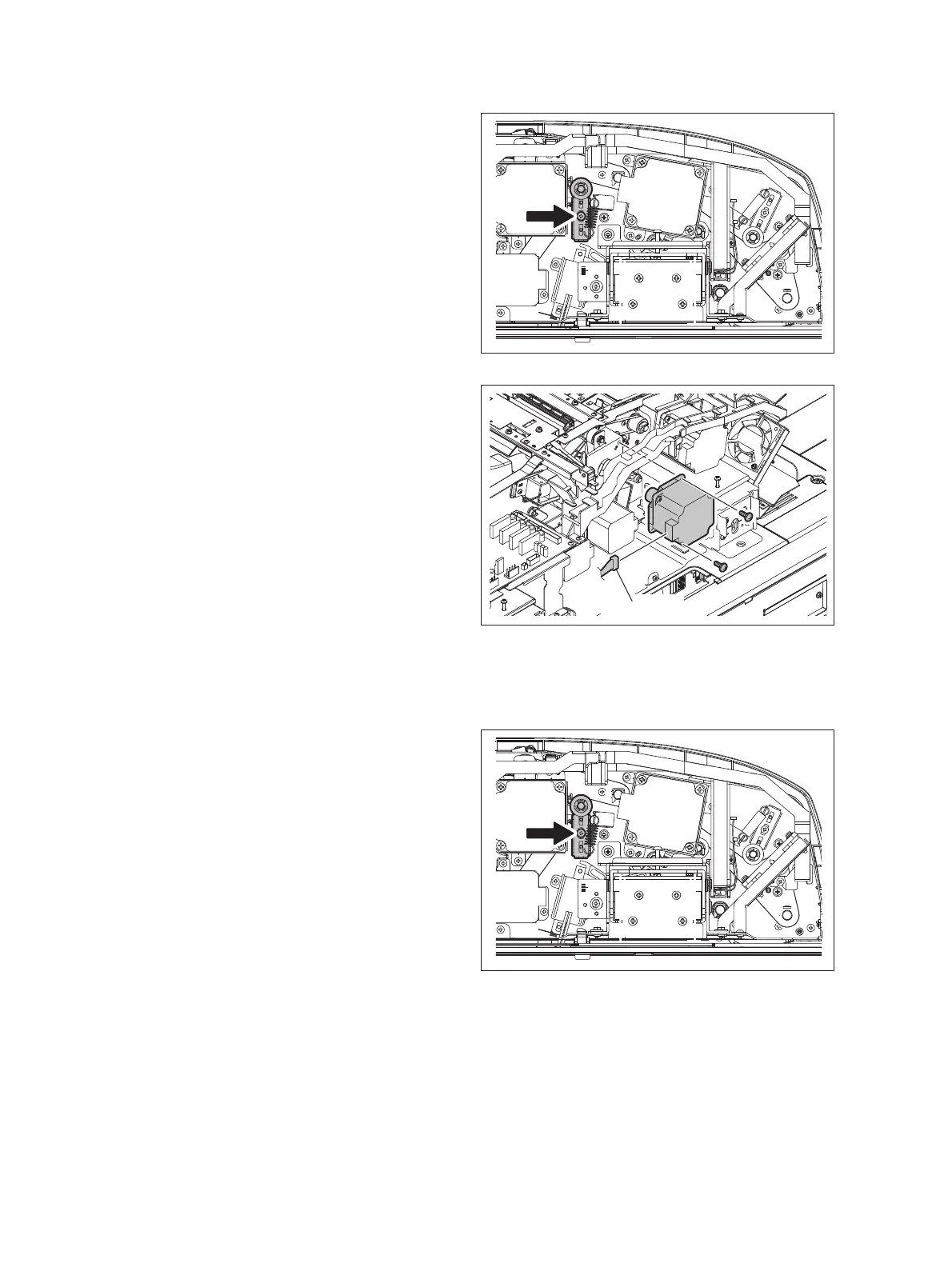

4.11.24 Original feed motor (MR1)
4.11.25 Original feed motor bracket
(1) Take off the RADF rear cover.
 P. 4-258"4.11.3 RADF rear cover"
(2) Loosen 1 screw.
Fig. 4-816
(3) Disconnect 1 connector, remove 2 screws
and take off the original feed motor.
Fig. 4-817
(1) Take off the RADF rear cover.
 P. 4-258"4.11.3 RADF rear cover"
(2) Loosen 1 screw.
Fig. 4-818
Connector
