OUTLINE OF THE MACHINE
3 - 70
<Tandem LCF model>
The composition of the 1st and the 2nd drawers of the Tandem LCF model is the same as that of the 4-
drawer model.
The 3rd and the 4th drawers are not installed but instead the Tandem LCF is installed.

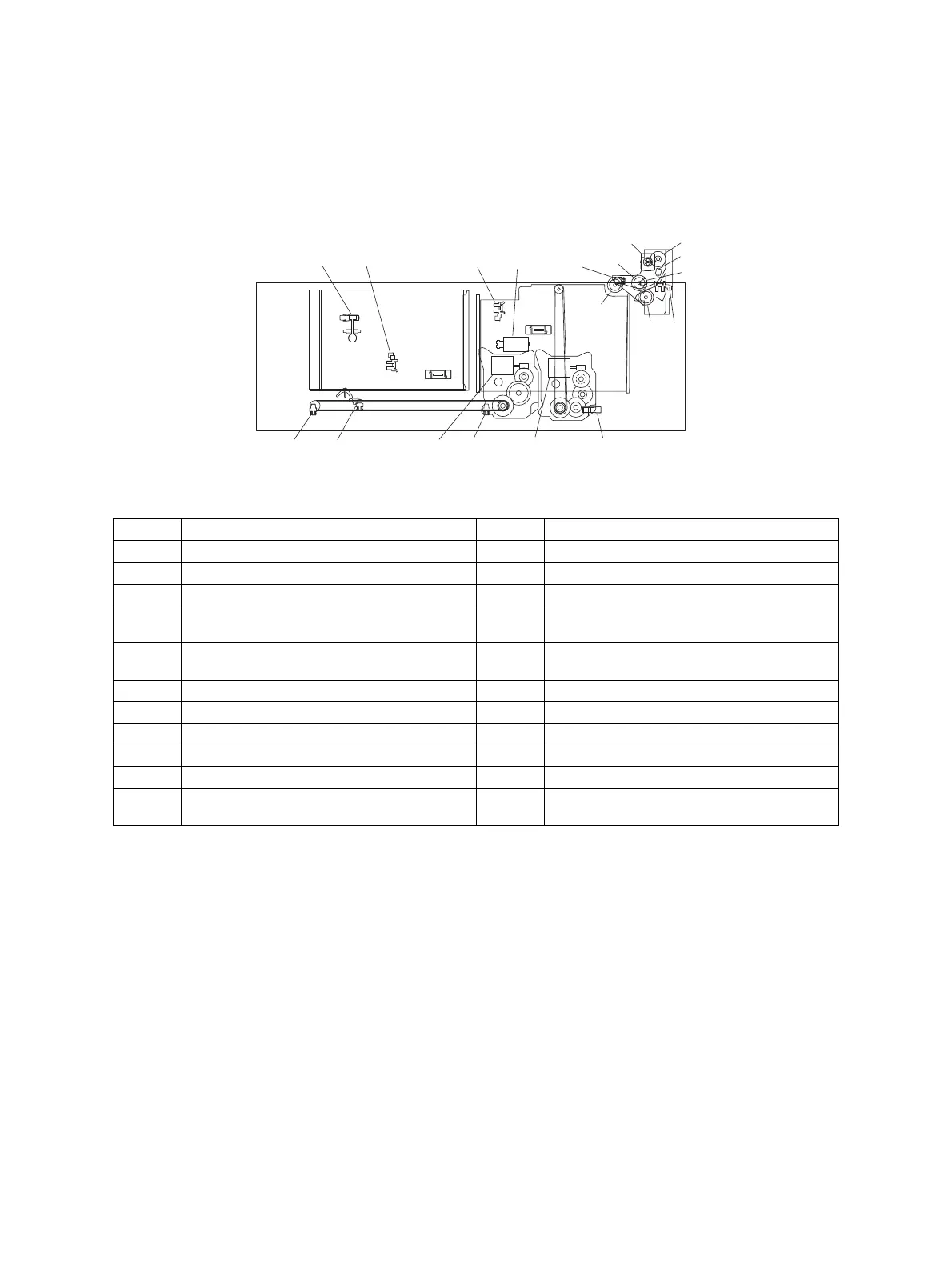

Fig. 3-42
No. Name No. Name
T1 Tandem LCF feed roller T12 Tandem LCF bottom sensor
T2 Tandem LCF separation roller T13 Standby side tray detection sensor
T3 Tandem LCF pickup roller T14 Standby side empty sensor
T4 Tandem LCF transport roller T15 Stopper opening/closing detection sensor
(front)
T5 Tandem LCF detection sensor T16 Stopper opening/closing detection sensor
(rear)
T6 Tandem LCF empty sensor T17 End fence home position sensor
T7 Tandem LCF tray-up sensor T18 End fence stop position sensor
T8 Tandem LCF transport sensor T19 Stopper opening/closing solenoid (front)
T9 Tandem LCF feed sensor T20 Stopper opening/closing solenoid (rear)
T10 Tandem LCF solenoid T21 Tandem LCF tray-up motor
T11 Standby side tray paper amount detection
sensor
T22 Tandem LCF end fence motor
T15
T16
T19
T20
T5
T6
T7
T18 T21
T8
T9
T10
T11
T12
T13
T14T17 T22
T4
T3
T2
T1
