Toshiba e-STUDIO 6550C e-STUDIO 5560C User Manual

e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY and REPLACEMENT
4 - 208

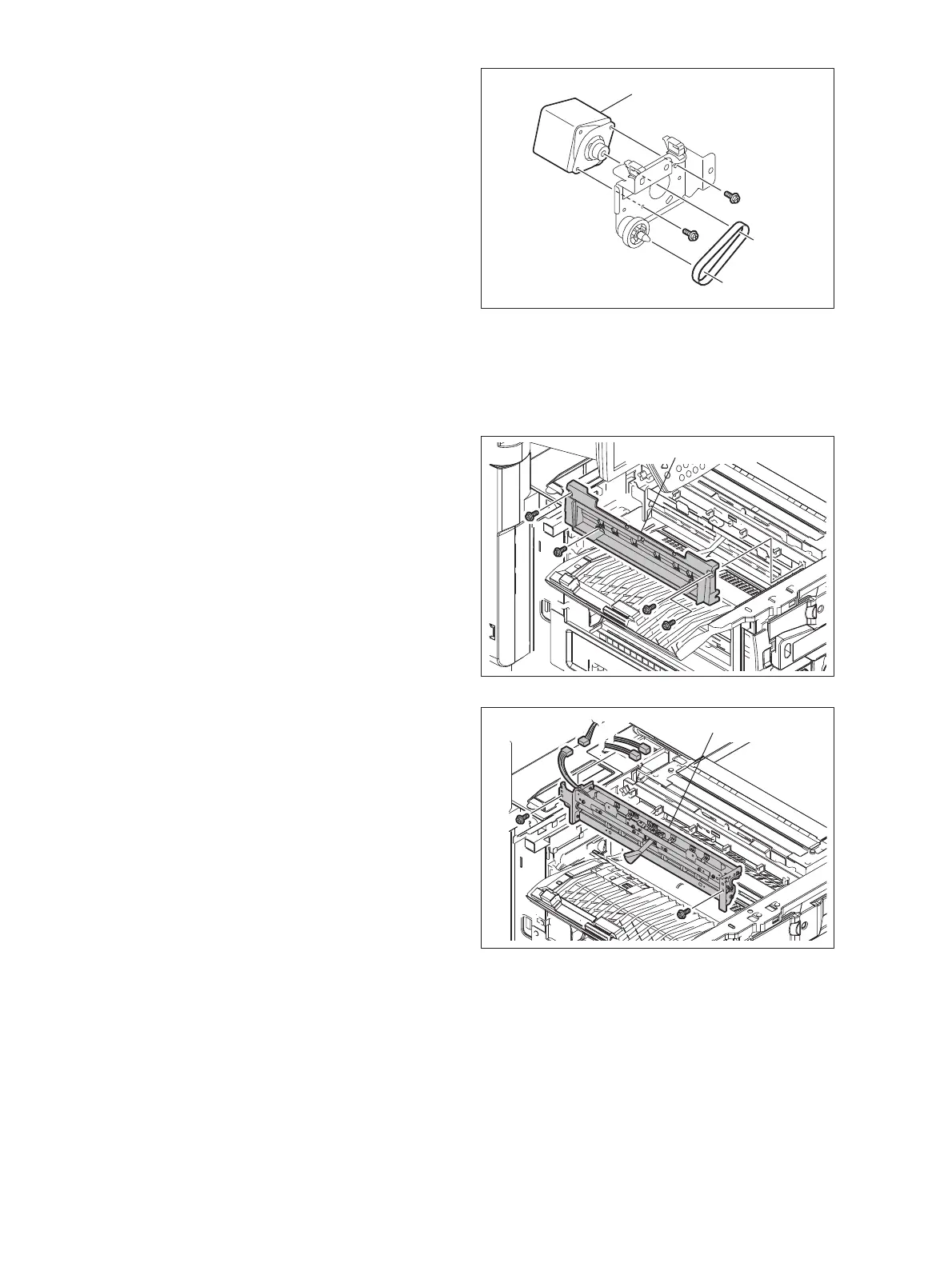

4.10.5 Upper paper exit sensor (S61) / Upper exit tray paper full
detection sensor (S62)
(7) Remove 2 screws and take off the exit motor
from the motor bracket.
Fig. 4-602
(1) Take off the upper exit section fan unit.
 P. 4-206"4.10.1 Upper exit section cooling
fan-1(F32) / Upper exit section cooling fan-2
(F33)"
(2) Take off the exit motor.
 P. 4-207"4.10.4 Exit motor (M2)"
(3) Remove 4 screws to take off the upper exit
cover.
Fig. 4-603
(4) Remove 2 screws and then take off the
upper paper exit roller unit.
(5) Disconnect 1 connector and then release a
harness from a clamp.
Fig. 4-604
Exit motor
Upper exit cover
Upper paper exit roller unit
