DISASSEMBLY and REPLACEMENT
4 - 125
4.6.40 Waste toner box detection sensor (S16)
4.6.41 Ozone filter-1
(1) Take off the sensor cover.
 P. 4-123"4.6.38 Waste toner amount
detection sensor (S13)"
(2) Disconnect 1 connector, release 3 latches
and take off the waste toner box detection
sensor.

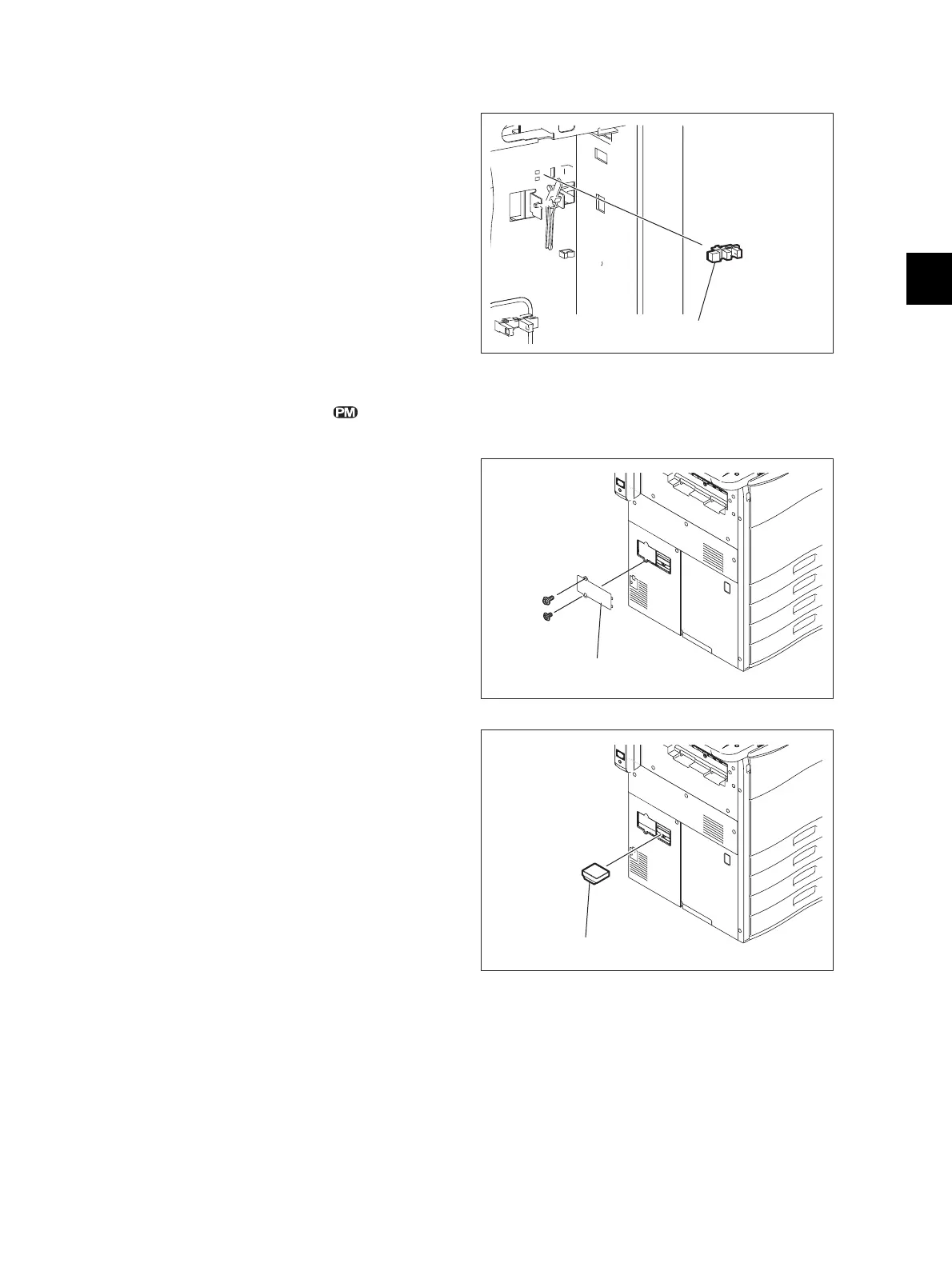

Fig. 4-367
(1) Remove 2 screws and take off the filter
cover.
Fig. 4-368
(2) Take off the ozone filter-1.
Fig. 4-369
Waste toner detection sensor
Filter cover
Ozon filter-1
