DISASSEMBLY and REPLACEMENT
4 - 42

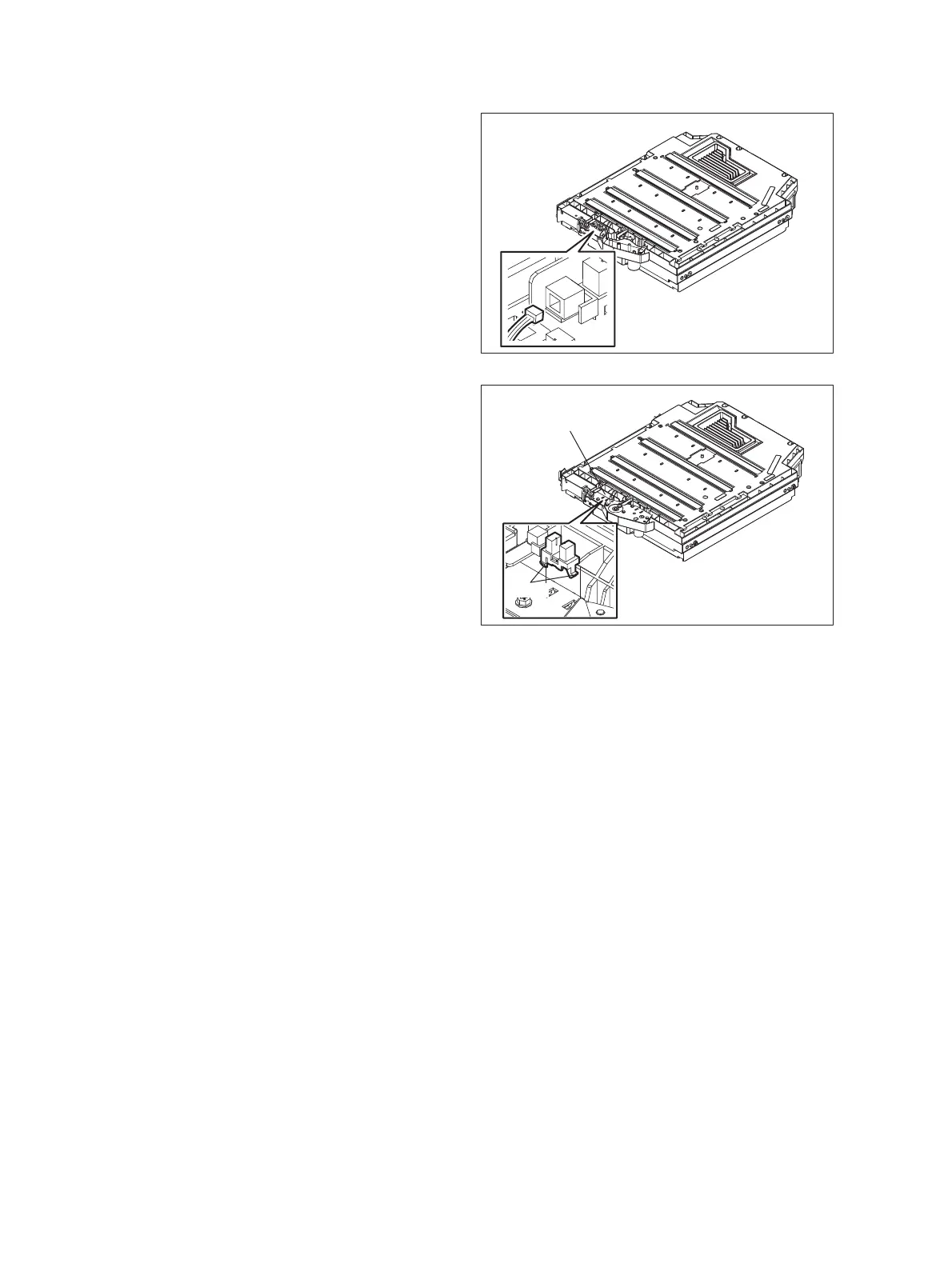

4.4.6 Shutter sensor (home position)
(1) Remove the laser optical unit.
 P. 4-35"4.4.1 Laser optical unit"
(2) Remove the shutter.
 P. 4-41"4.4.4 Shutter"
(3) Disconnect 1 connector.‘
Fig. 4-119
(4) Release 2 latches and take off the shutter
sensor (home position).
Fig. 4-120
Shutter sensor
(home position)
Latch
