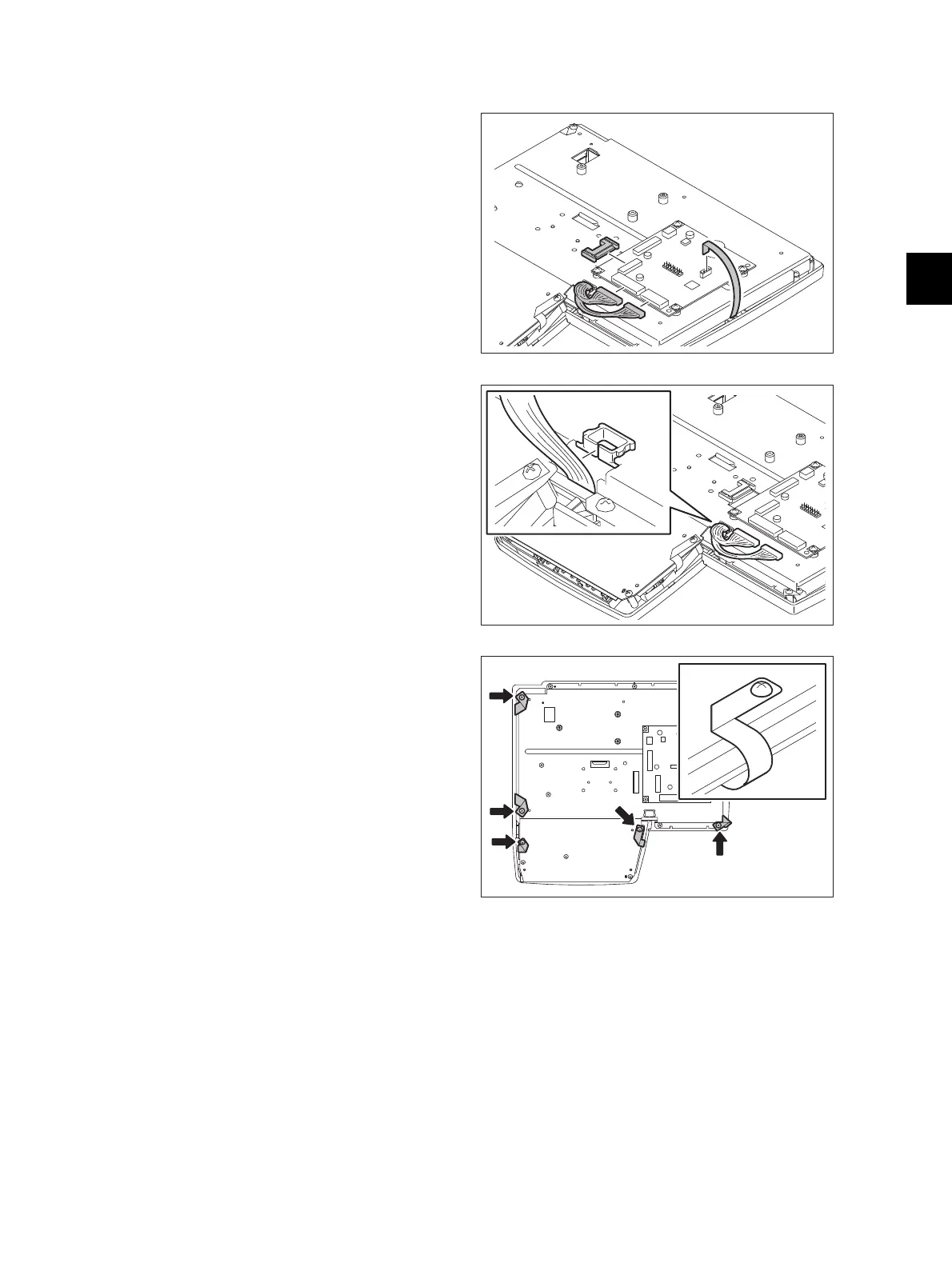

4.2.4 Shielding plate
(1) Disconnect 4 connectors.
Fig. 4-29
(2) Release the harness from 1 harness clamp.
Fig. 4-30
(3) Remove 5 screws.
Fig. 4-31
