DISASSEMBLY and REPLACEMENT
4 - 292
4.11.38 Original jam access cover opening/closing sensor (SR13)
4.11.39 Feeder lower guide unit

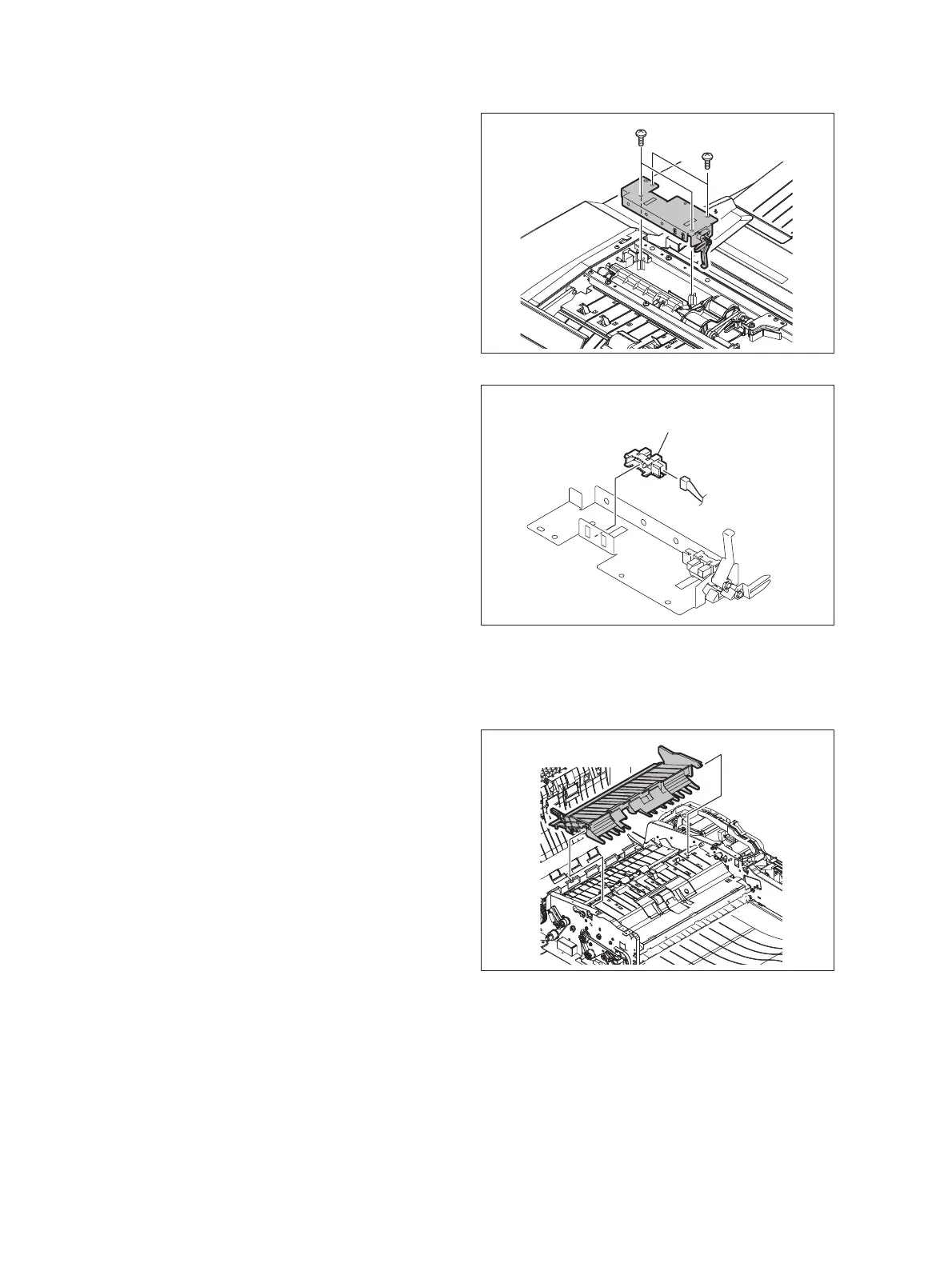

(1) Open the original jam access cover.
(2) Remove 4 screws and take off the sensor
bracket.
Fig. 4-851
(3) Disconnect 1 connector. Release 2 latches
and take off the original jam access cover
opening/closing sensor.
Fig. 4-852
(1) Take off the original tray.
 P. 4-260"4.11.6 Original tray"
(2) Take off the guide.
Fig. 4-853
Original jam access cover
opening/closing sensor
