DISASSEMBLY and REPLACEMENT
4 - 274

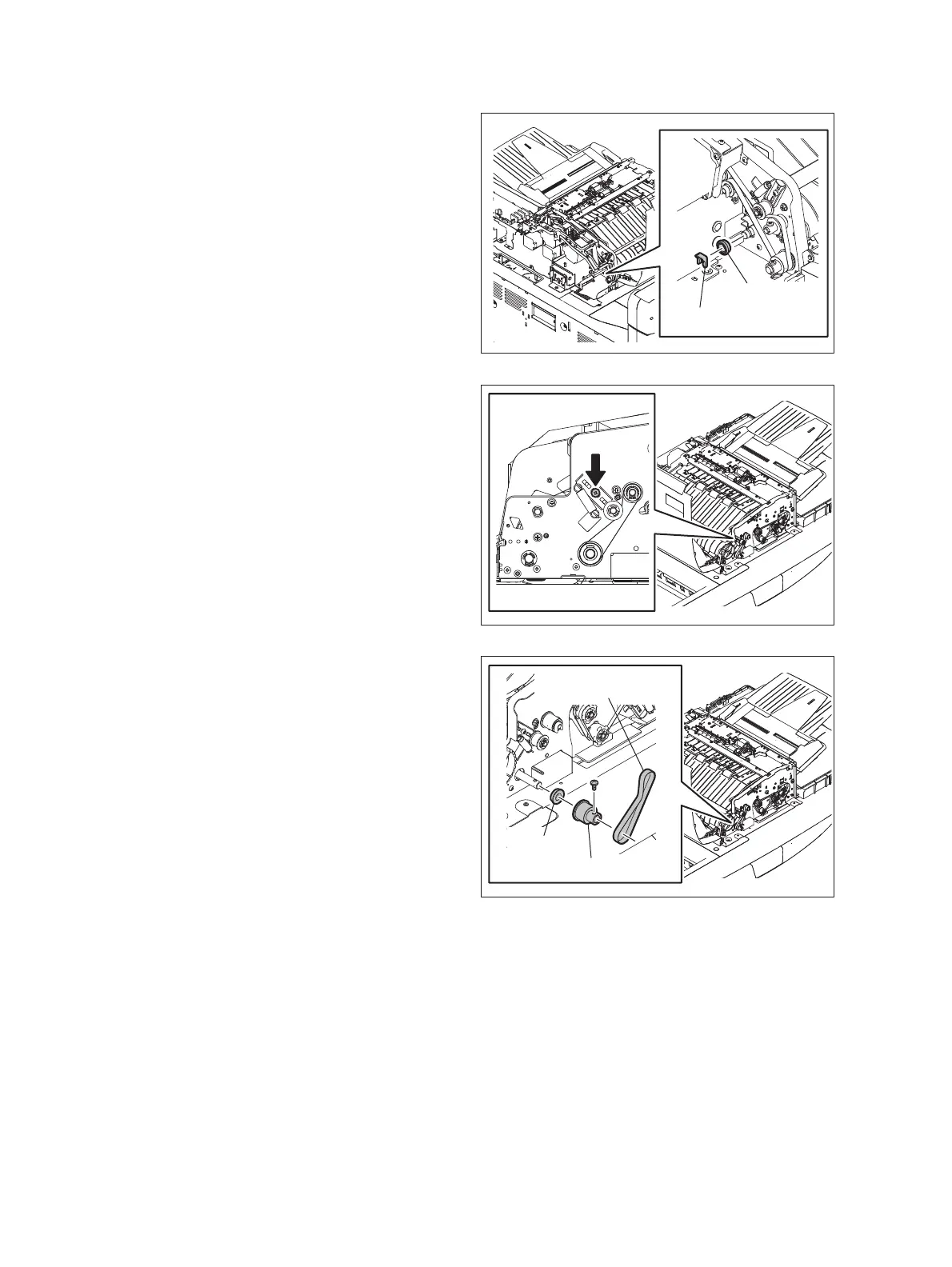

4.11.19 Reading end roller
(1) Take off the RADF front cover.
 P. 4-257"4.11.2 RADF front cover"
(2) Take off the RADF rear cover.
 P. 4-258"4.11.3 RADF rear cover"
(3) Remove 1 clip and 1 bushing.
Fig. 4-799
(4) Loosen 1 screw.
Fig. 4-800
(5) Remove 1 screw, 1 pulley, 1 bearing and 1
timing belt.
Fig. 4-801
Clip
Bushing
Bearing
Pulley
Timing belt
