Toshiba e-STUDIO 6550Ce-STUDIO 5560C - Toner Motor (K;C;M;Y)

e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY and REPLACEMENT
4 - 128
4.6.44 Toner motor (K/C/M/Y) (M15/M16/M17/M18)
(1) Take off the front cover.
 P. 4-1"4.1.2 Front cover"
(2) Take off the switch cover.
 P. 4-135"4.6.52 Toner motor interlock
switch (SW3)"

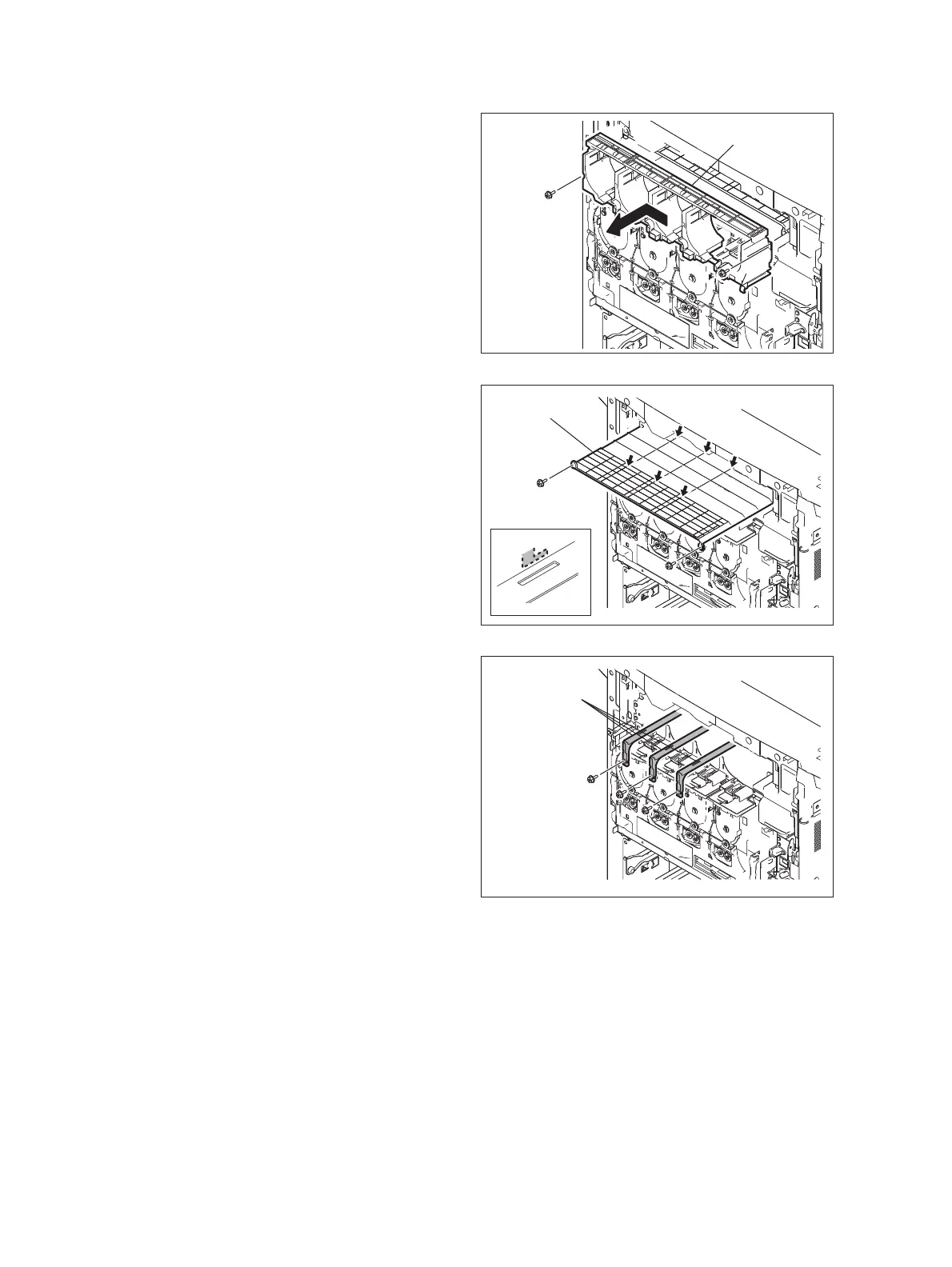

(3) Remove 2 screws and take off the toner
guide by sliding it to the left and pulling it out
toward you.
Fig. 4-374
(4) Remove 2 screws and pull the toner cover a
little toward you to release the hook. Then
take off the toner cover by lifting it up a little.
Fig. 4-375
(5) Remove 3 screws and 3 stays.
Fig. 4-376
Toner guide
Toner cover
Stay
