e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY and REPLACEMENT
4 - 130
4.6.45 Toner cartridge paddle rotation detection sensor-K/C/M/Y (S8/S9/
S10/S11)
4.6.46 Waste toner transport motor (M33)
(1) Take off the toner motor assembly.
P. 4-128"4.6.44 Toner motor (K/C/M/Y)
(M15/M16/M17/M18)"
(2) Disconnect 1 connector and release 3
latches. Then take off the toner cartridge
paddle rotation detection sensor.

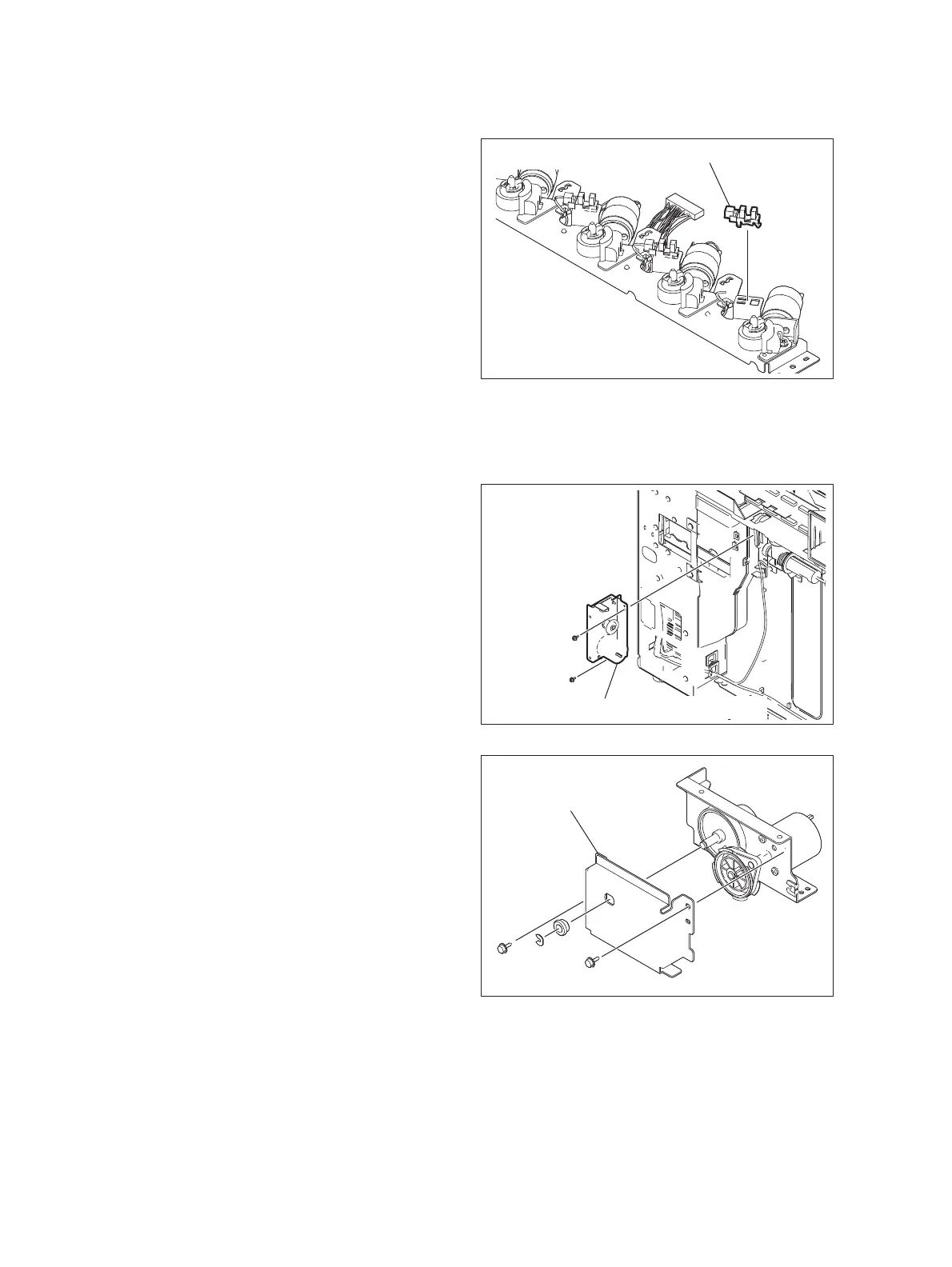

Fig. 4-380
(1) Take off the left lower cover.
P. 4-4"4.1.11 Left lower cover"
(2) Remove 2 screws, separate the belt from
the pulley, and then take off the motor drive
unit.
Fig. 4-381
(3) Remove 2 screws, 1 C-ring and 1 bushing,
and then take off the bracket.
Fig. 4-382
Toner cartridge paddle rotation detection sensor-K
Waste toner transport motor drive unit
To Next Page
