DISASSEMBLY and REPLACEMENT
4 - 13
4.2.5 Key PC board-1 (KEY1)
4.2.6 Key PC board-2 (KEY2)
4.2.7 Touch panel (TCP)
(1) Take off the shielding plate.
 P. 4-11"4.2.4 Shielding plate"
(2) Remove a sheet.
(3) Remove 9 screws and then take off the key
PC board-1.

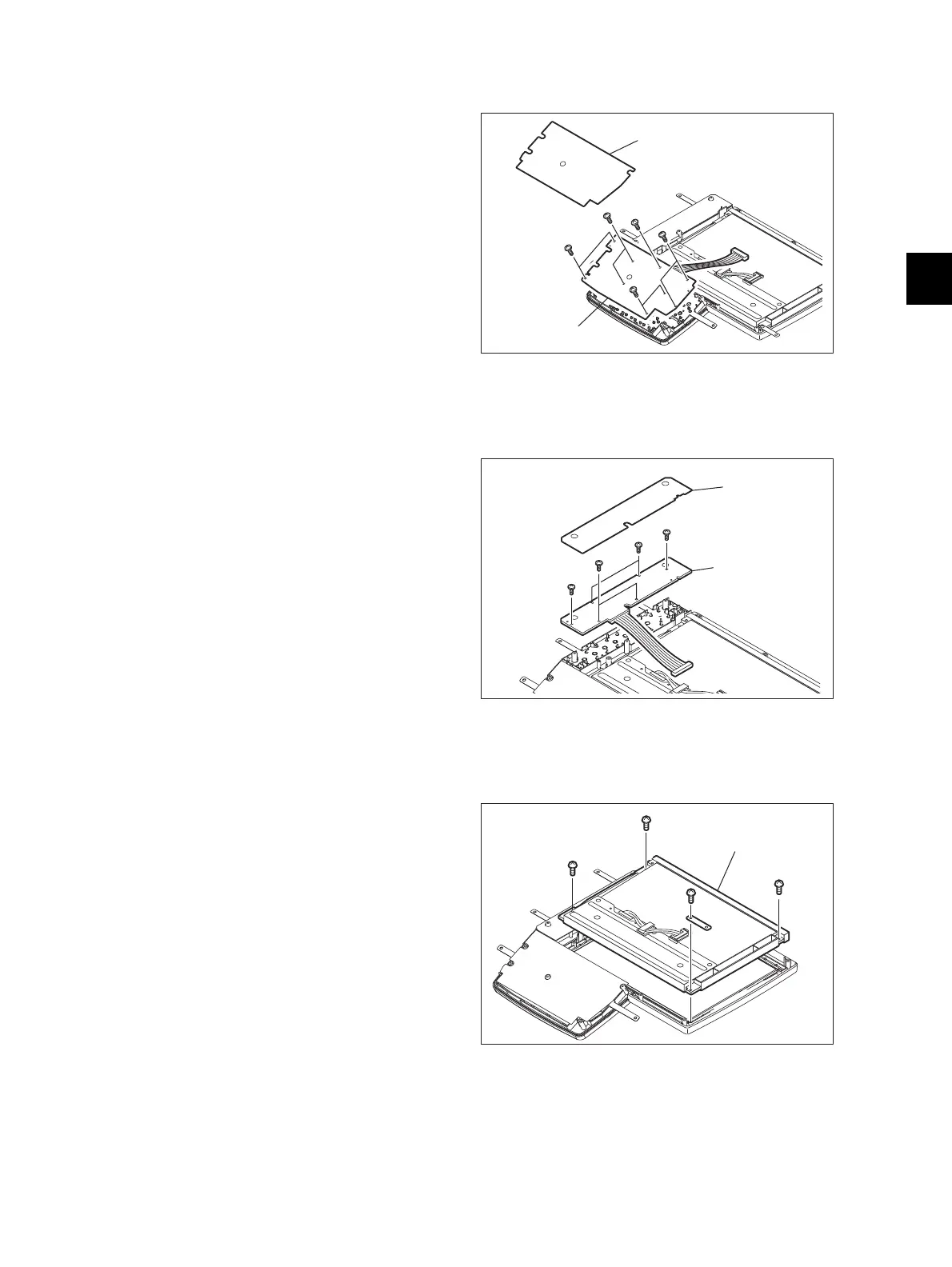

Fig. 4-35
(1) Take off the shielding plate.
 P. 4-11"4.2.4 Shielding plate"
(2) Remove a sheet.
(3) Remove 6 screws and then take off the key
PC board-2.
Fig. 4-36
(1) Take off the shielding plate.
 P. 4-11"4.2.4 Shielding plate"
(2) Remove 4 screws and then take off the touch
panel.
Fig. 4-37
Sheet
Key PC board-1
Sheet
Key PC board-2
Touch panel
