DISASSEMBLY and REPLACEMENT
4 - 81
4.5.51 Tandem LCF standby unit
(7) Release 4 latches and then take off the
tandem LCF end fence motor.

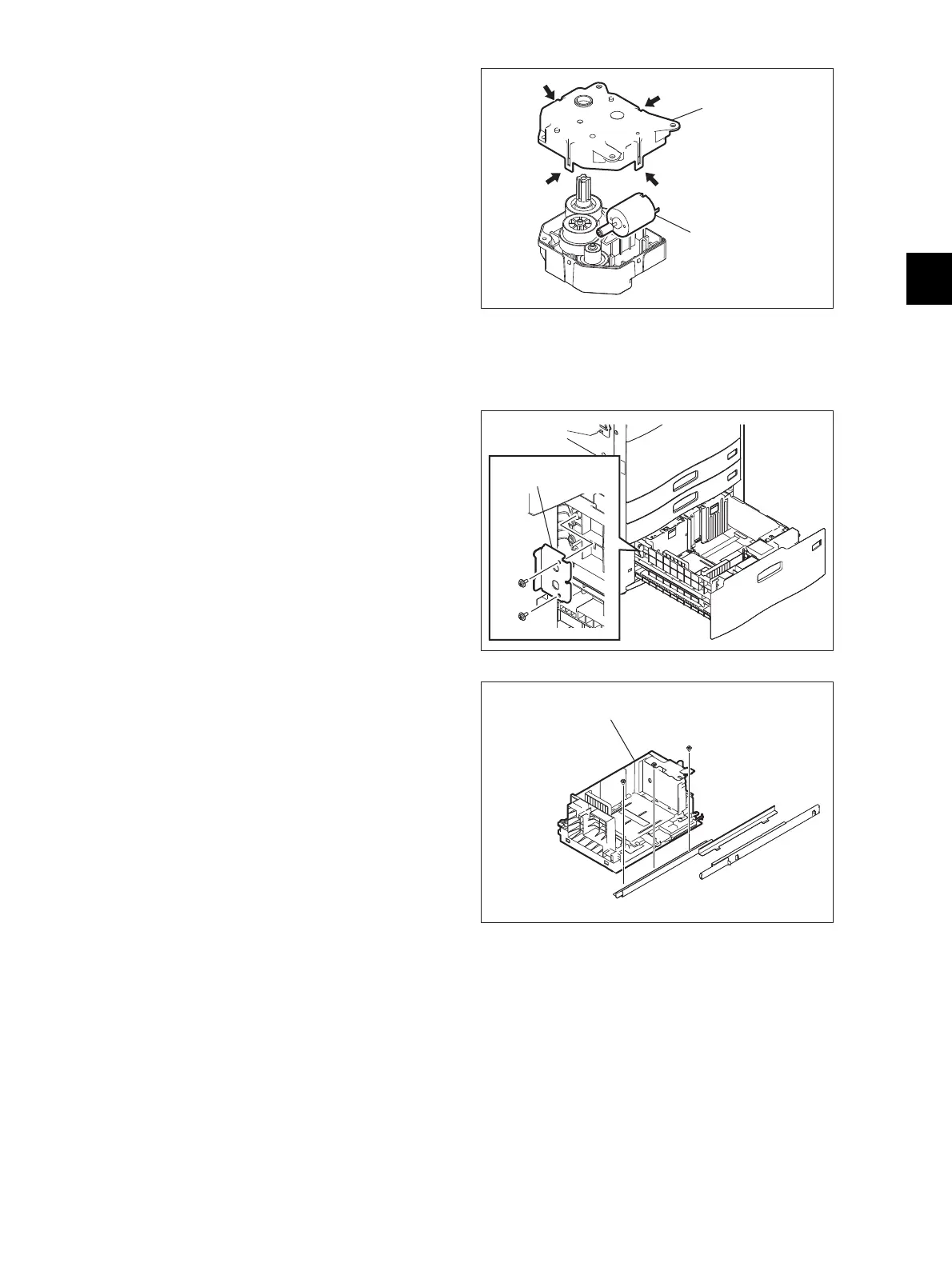

Fig. 4-236
(1) Pull out the tandem LCF.
(2) Remove 2 screws, and then take off the
stopper plate.
Fig. 4-237
(3) Insert the tandem LCF feeding unit.
(4) Remove 3 screws, and then take off the
tandem LCF standby unit.
Fig. 4-238
Cover
Tandem LCF
end fence motor
Stopper plate
Tandem LCF standby unit
