Toshiba e-STUDIO 6550Ce-STUDIO 5560C - Tray-Up Motor-2

4
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
DISASSEMBLY and REPLACEMENT
4 - 77

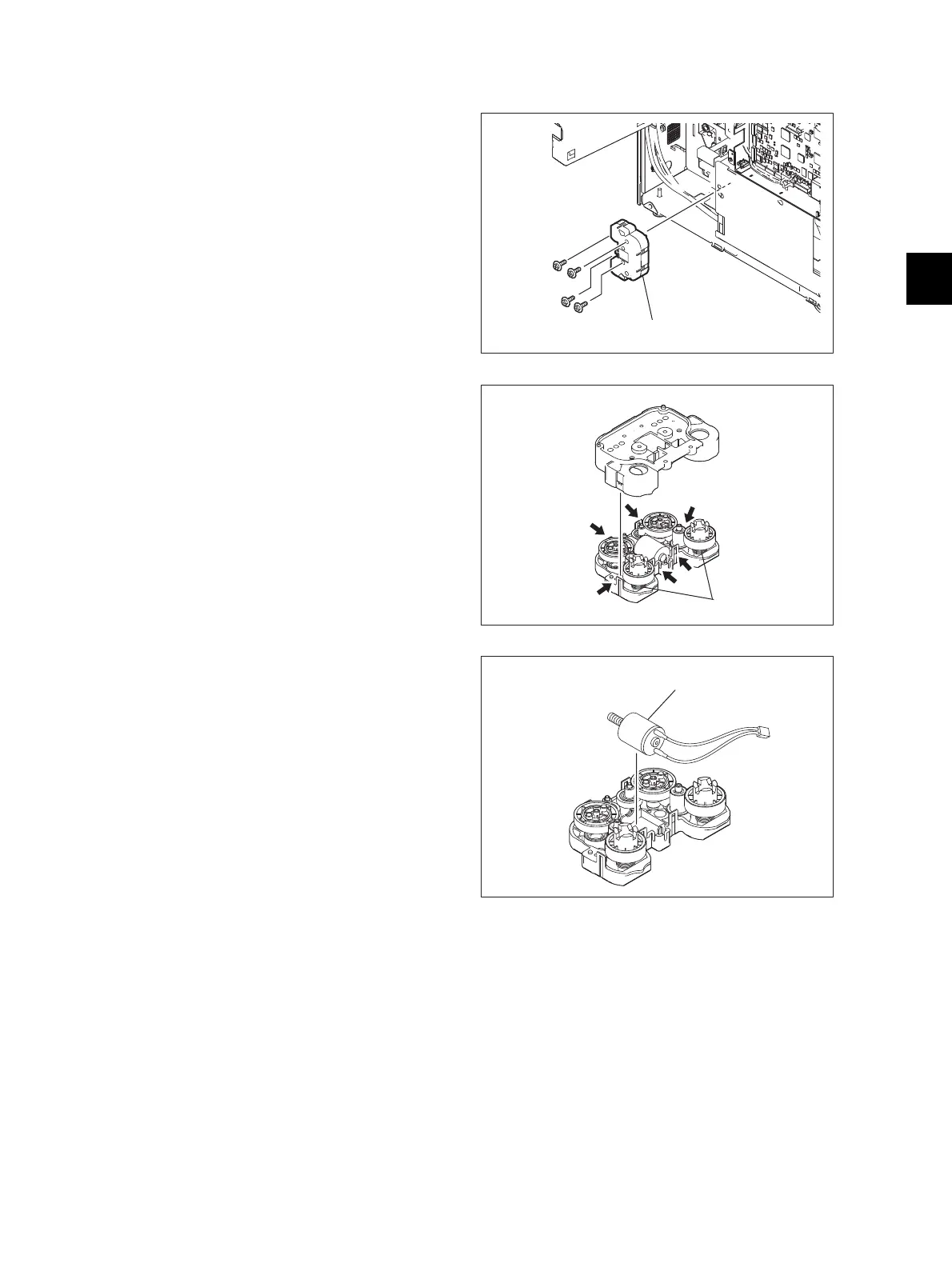

4.5.47 Tray-up motor-2 (M45)
(1) Remove the 3rd and 4th drawers or tandem
LCF.
(2) Take off the FIL board case.
 P. 9-21"9.1.18 FIL board"
(3) Disconnect 1 connector and remove 3
screws. Then take off the tray drive unit [1].
Fig. 4-224
(4) Place the unit with its coupling up and
release 6 latches to take off the cover.
Notes:
Be careful in taking off the cover because
there is a spring in the tray drive unit.
Fig. 4-225
(5) Take off the tray-up motor.
Fig. 4-226
[
1
]
Spring
Tray-up motor
