Toshiba e-STUDIO 6550C e-STUDIO 5560C User Manual

4
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
DISASSEMBLY and REPLACEMENT
4 - 61
4.5.22 Drawer empty sensor (S75/S83/S91/S99)
4.5.23 Drawer tray-up sensor (S76/S84/S92/S100)

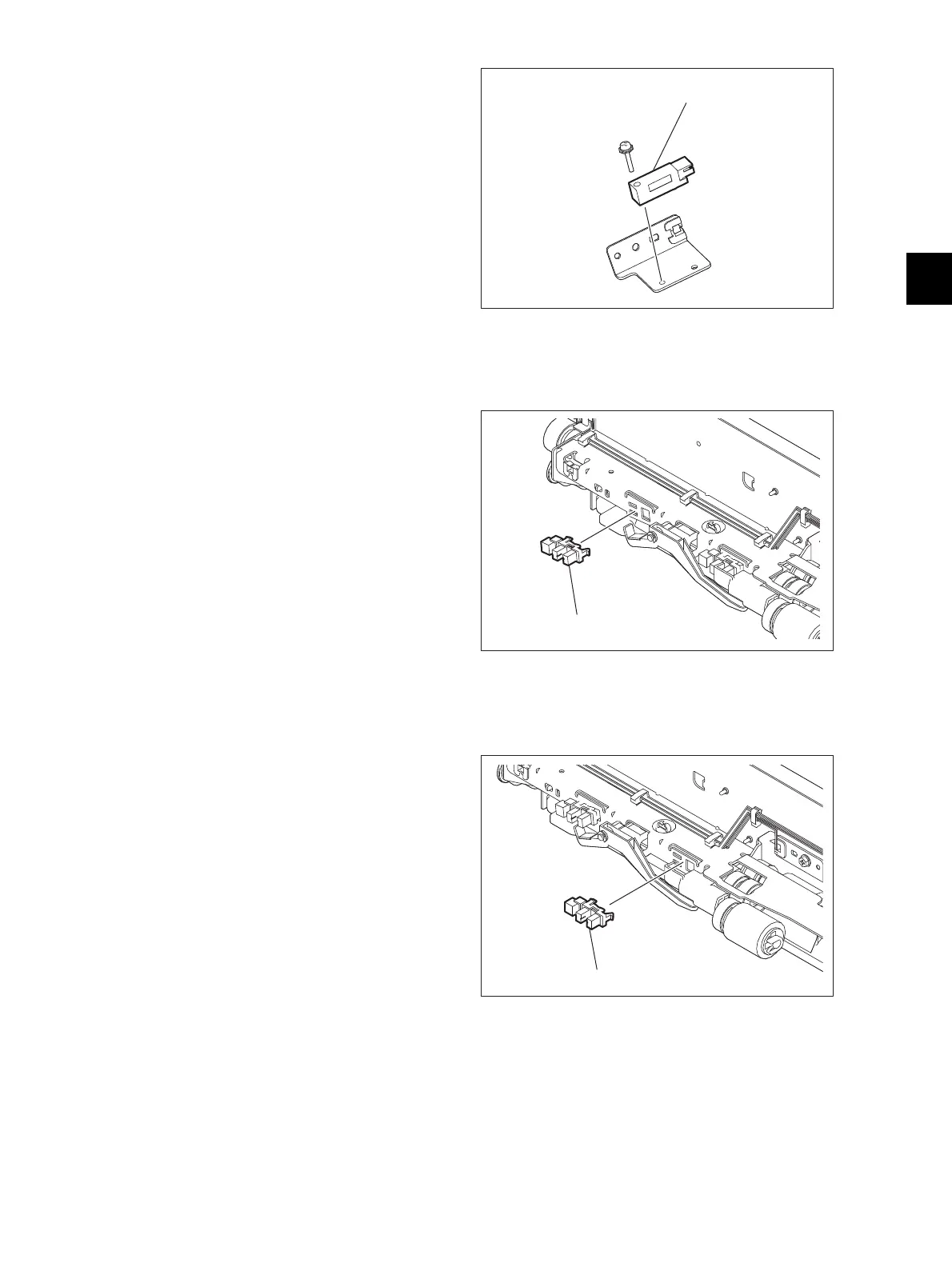

(3) Disconnect 1 connector and remove 1 screw.
Then take off the drawer transport sensor.
Notes:
When installing the sensors, make sure that
the protrusion of each sensor is inserted into
the hole of the bracket securely.
Fig. 4-175
(1) Take off the drawer feeding unit.
 P. 4-55"4.5.14 Drawer feeding unit"
(2) Disconnect 1 connector and release 3
latches. Then take off the drawer empty
sensor.
Fig. 4-176
(1) Take off the drawer feeding unit.
 P. 4-55"4.5.14 Drawer feeding unit"
(2) Disconnect 1 connector and release 3
latches. Then take off the drawer tray-up
sensor.
Fig. 4-177
Drawer transport sensor
Drawer empty sensor
Drawer tray-up sensor

Toshiba e-STUDIO 6550C e-STUDIO 5560C Specifications

General

Category	All in One Printer
Print Speed (Color)	55 ppm
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Paper Capacity	3, 700 sheets
Maximum Paper Size	A3
Type	Color
Scan Resolution	600 dpi
Connectivity	USB, Ethernet
Supported Paper Sizes	A4, A5, B5
