DISASSEMBLY and REPLACEMENT
4 - 62

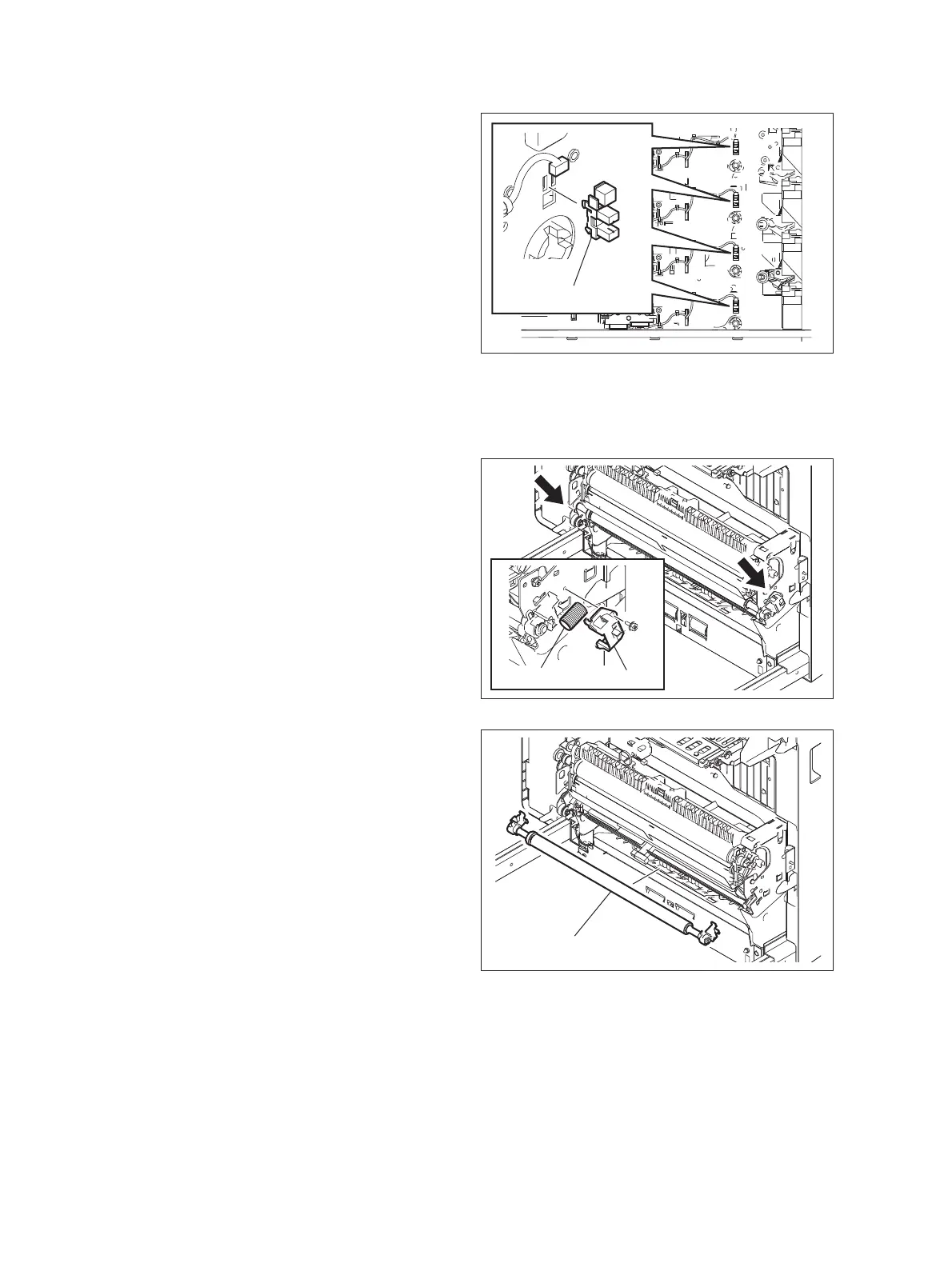

4.5.24 Drawer bottom sensor (S74/S82/S90/S98)
4.5.25 Registration roller (Rubber)
(1) Take off all the drawers.
 P. 4-68"4.5.33 Drawer"
(2) Disconnect 1 connector and release 3
latches. Then take off the drawer bottom
sensor.
Fig. 4-178
(1) Take off the 2nd transfer roller front guide.
 P. 4-154"4.7.14 2nd transfer unit (TRU)"
(2) Remove 2 screws 2 springs and 2 holders.
Fig. 4-179
(3) Take off the registration roller (rubber).
Fig. 4-180
Drawer bottom sensor
Holder
Spring
Registration roller (rubber)
