DISASSEMBLY and REPLACEMENT
4 - 195
4.9.15 Pressure roller center thermostat (THMO2) / Pressure roller side
thermostat (THMO3)
(1) Take off the pressure roller cover.
 P. 4-173"4.9.2 Pressure roller cover"
(2) Take off the entrance guide cover.
 P. 4-175"4.9.5 Entrance guide cover"
(3) Release the harnesses of the pressure roller
thermistors (center, side and edge) from the
hook of the harness guide.

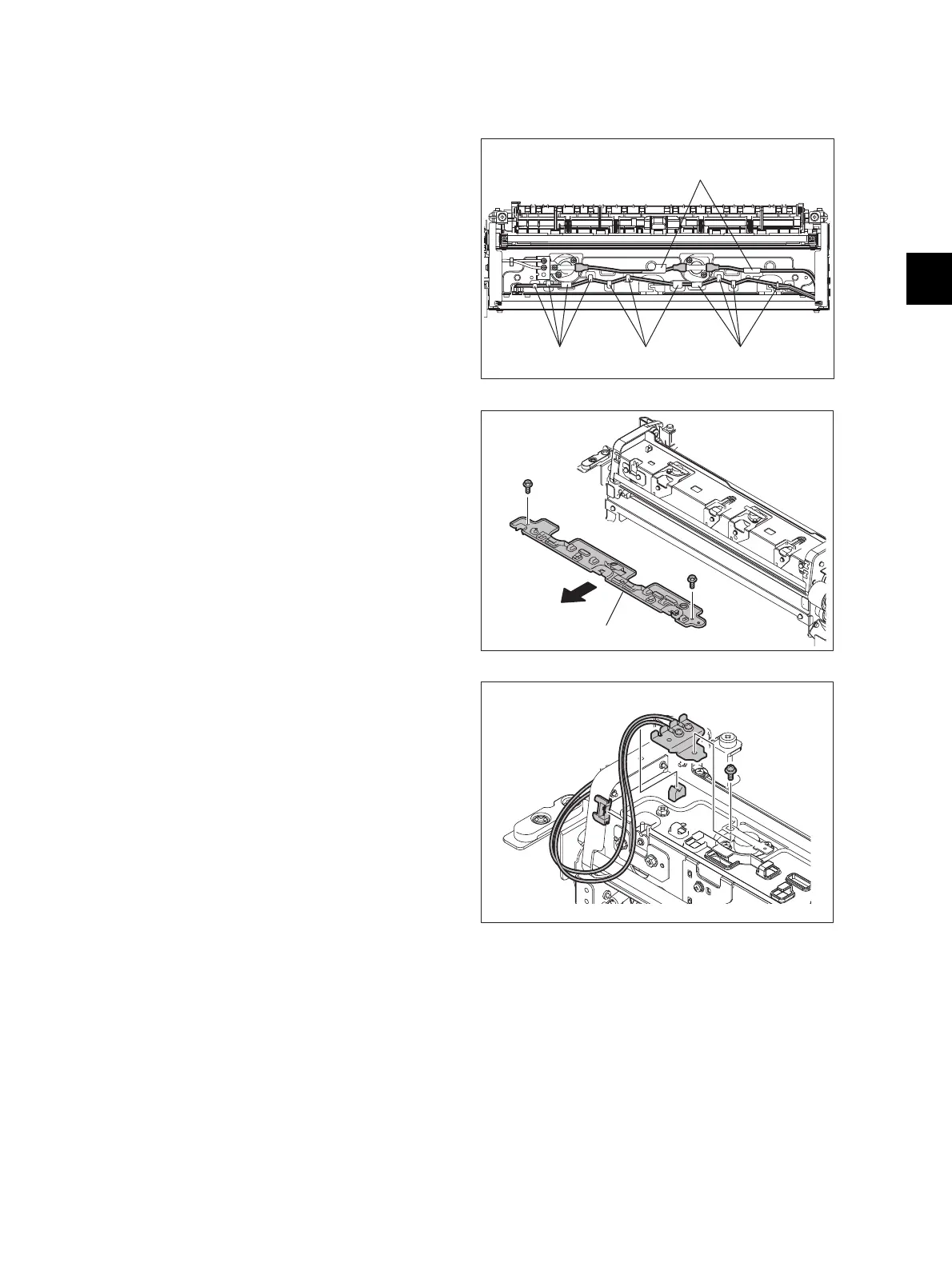

Fig. 4-564
(4) Remove 2 screws and take off the harness
guide [1].
Notes:
When installing, be sure to fix the harness
with the hooks of the harness guide [1].
Fig. 4-565
(5) Remove 1 screw and take off the terminal
plate from the pressure roller side
thermostat.
(6) Release the harness from 2 clamps.
Notes:
• When installing, be sure to fix the harness
securely with 3 clamps
• The pressure roller heater lamp has 3
harnesses for MJC and MJD destinations,
and 2 harnesses for the others.
Fig. 4-566
Hook Hook
Hook
Hook
[
1
]
