4
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
DISASSEMBLY and REPLACEMENT
4 - 287

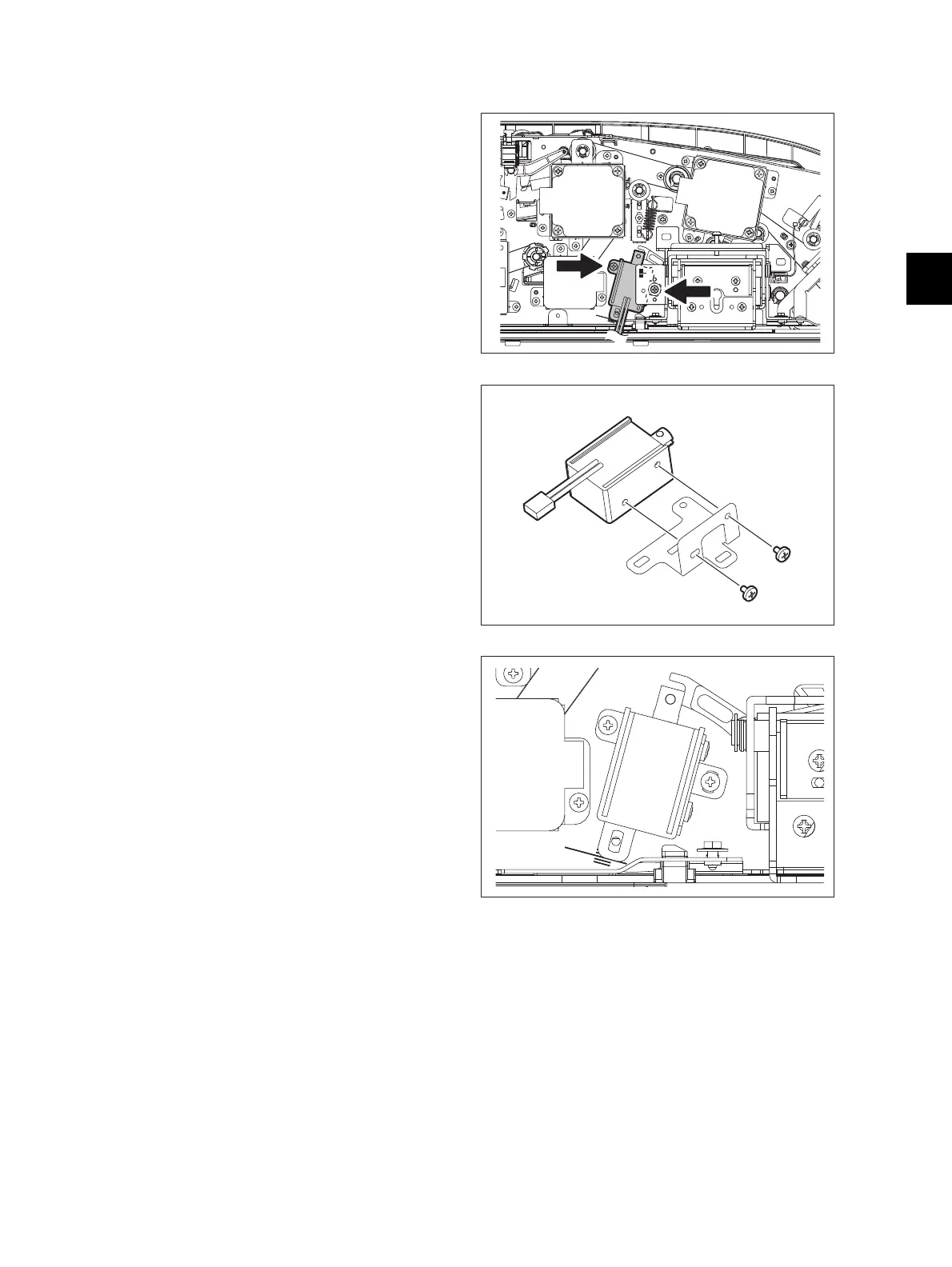

4.11.32 Original reverse solenoid (SOLR2)
(1) Take off the RADF rear cover.
P. 4-258"4.11.3 RADF rear cover"
(2) Disconnect 1 connector.
(3) Remove 2 screws and take off the original
reverse solenoid with the bracket.
Fig. 4-836
(4) Remove 2 screws and take off the bracket
from the original reverse solenoid.
Fig. 4-837
Notes:
Before taking off the solenoid, read the scale.
When reinstalling, align it with the
corresponding position on the scale.
Fig. 4-838
To Next Page
