DISASSEMBLY and REPLACEMENT
4 - 227
4.10.22 Bridge unit exit roller-2
4.10.23 Transport path switching solenoid-1 (SOL1)
(1) Take off the bridge unit.
 P. 4-213"4.10.11 Bridge unit"
(2) Take off the bridge unit front cover.
 P. 4-214"4.10.12 Bridge unit front cover"
(3) Remove 1 screw and take off transport
guide-4 by sliding it toward you.

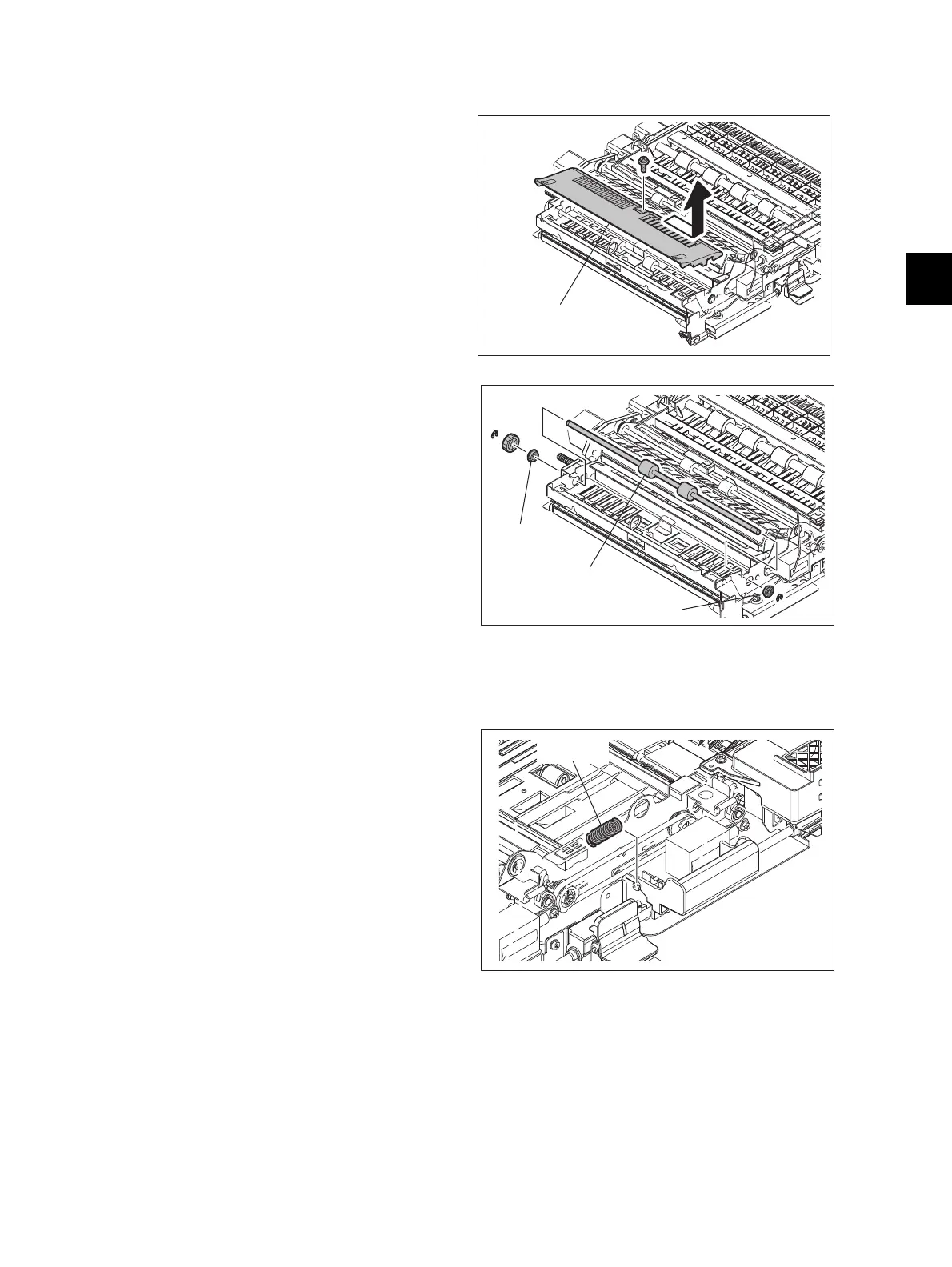

Fig. 4-658
(4) Remove 2 E-rings, 1 gear and 2 bearings.
Then take off bridge unit exit roller-2.
Fig. 4-659
(1) Take off the bridge unit front cover.
 P. 4-214"4.10.12 Bridge unit front cover"
(2) Remove 1 spring.
Fig. 4-660
Transport guide-4
Bridge unit exit roller-2
Bearing
Bearing
Spring
