DISASSEMBLY and REPLACEMENT

4 - 25

4.3.10 Upper exhaust fan (right) (F30)

(1) Take off the top rear cover.

 P. 4-7"4.1.20 Top rear cover"

(2) Disconnect 1 connector.

Notes:

When connecting the connector of the upper

exhaust fan (right), be sure that you do not

use the wrong one.

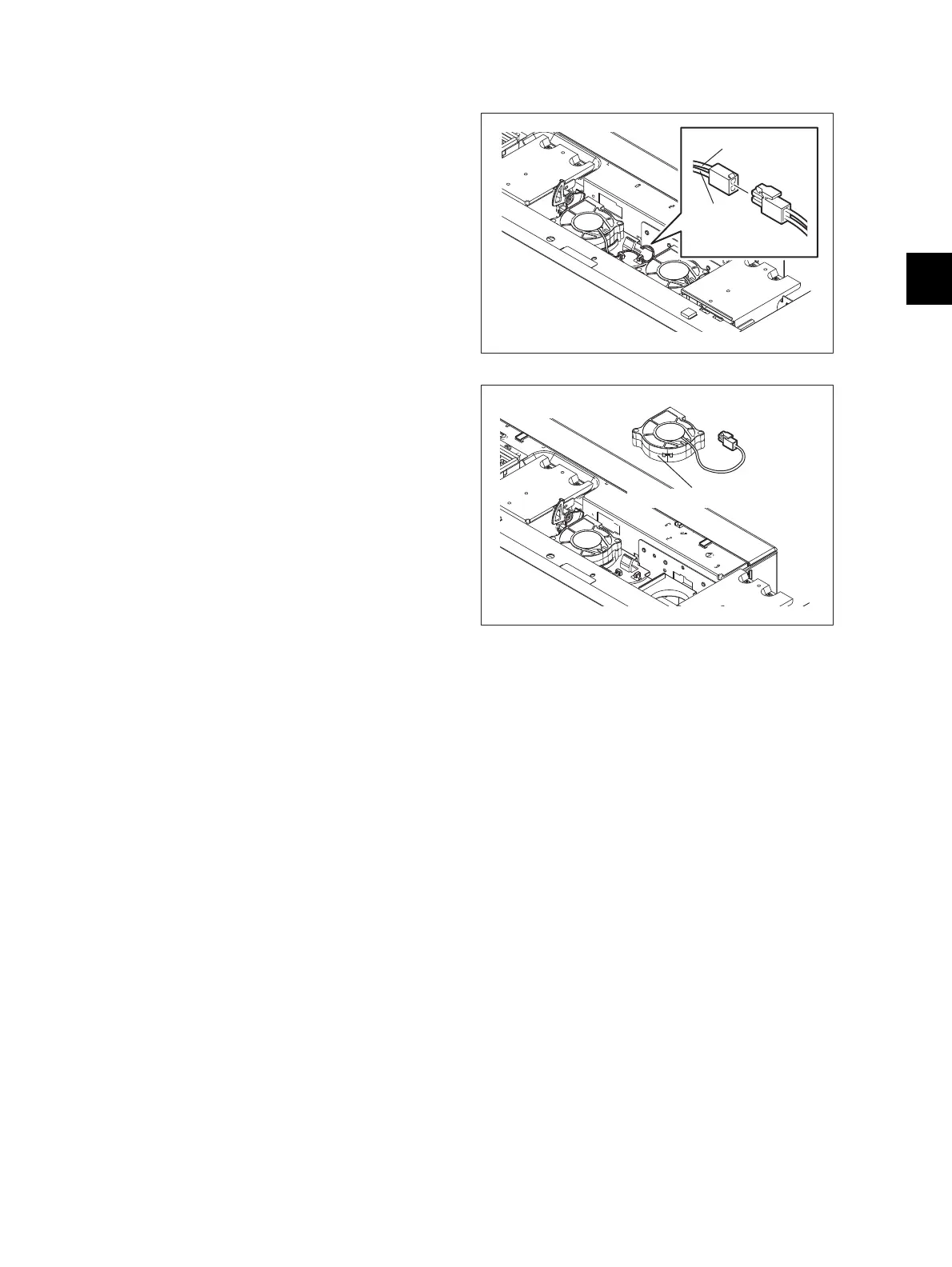

Fig. 4-67

(3) Take off the upper exhaust fan (right).

Fig. 4-68

Black

Upper exhaust fan (right)
