Toshiba e-STUDIO 6550C e-STUDIO 5560C User Manual

4
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
DISASSEMBLY and REPLACEMENT
4 - 131

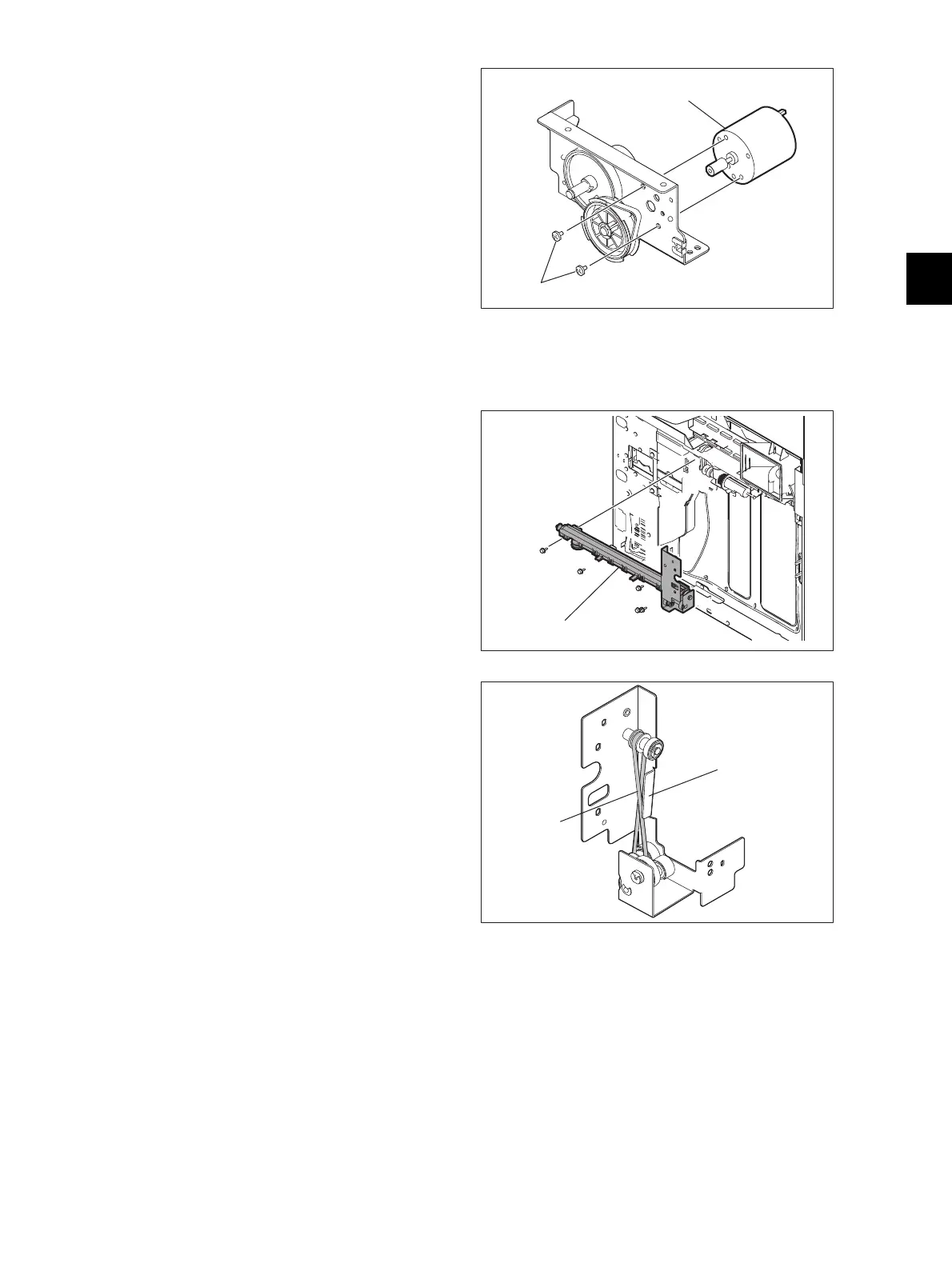

4.6.47 Waste toner transport unit
(4) Remove 2 screws, separate the belt from
the pulley, and then take off the waste toner
transport motor.
Notes:
Pay attention to the size (length) of the
screws. If incorrect ones are used, the motor
could be damaged.
Fig. 4-383
(1) Take off the waste toner transport motor.
 P. 4-130"4.6.46 Waste toner transport
motor (M33)"
(2) Remove the stay.
 P. 4-132"4.6.48 Ozone suctioning fan
(F24)"
(3) Remove 5 screws and then take off the
waste toner transport unit.
Fig. 4-384
Notes:
When you reinstall the removed belt of the
waste toner drive unit, check that the belt
does not contact a plate.
Fig. 4-385
Waste toner transport motor
Screw
Waste toner transport unit
Plate
Belt
