Toshiba e-STUDIO 6550Ce-STUDIO 5560C - High-Voltage Transformer-2 (HVT2)

e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved
REPLACEMENT OF PC BOARDS/HDD
9 - 20

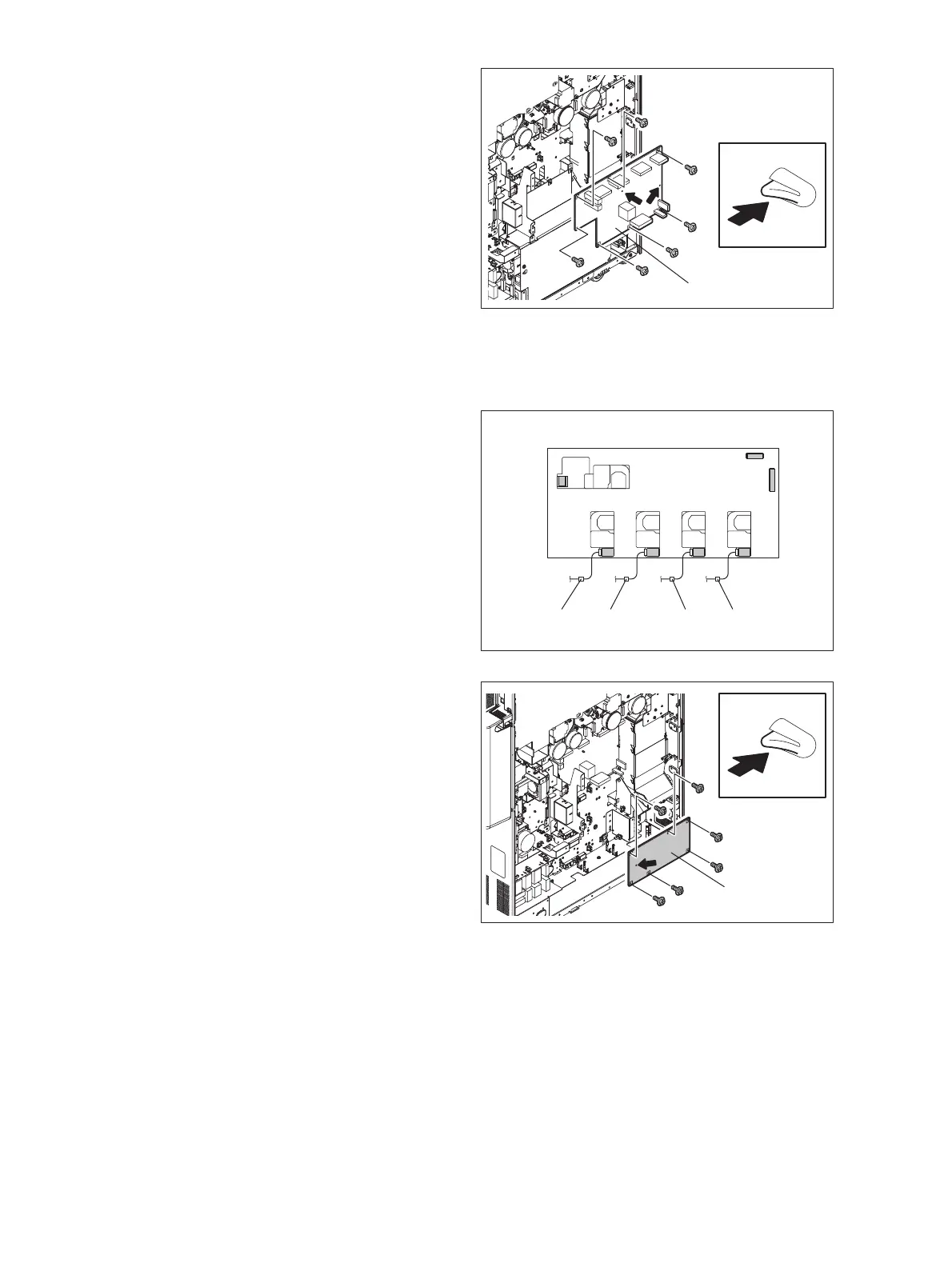

9.1.17 High-voltage transformer-2 (HVT2)
(4) Remove 7 screws, release 2 locking
supports and then take off the high-voltage
transformer-1.
Fig. 9-58
(1) Take off the LGC board case.
 P. 9-6"9.1.7 LGC board case"
(2) Take off the PFC board case.
 P. 9-8"9.1.9 PFC board case"
(3) Take off the switching regulator.
 P. 9-18"9.1.15 Switching regulator (PS)"
(4) Disconnect 7 connectors.
Fig. 9-59
(5) Remove 6 screws, release 1 locking support
and then take off the high-voltage
transformer-2.
Fig. 9-60
High-voltage transformer-1
YellowRedBlueBlack
High-voltage
transformer-2
