4
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
DISASSEMBLY and REPLACEMENT
4 - 295

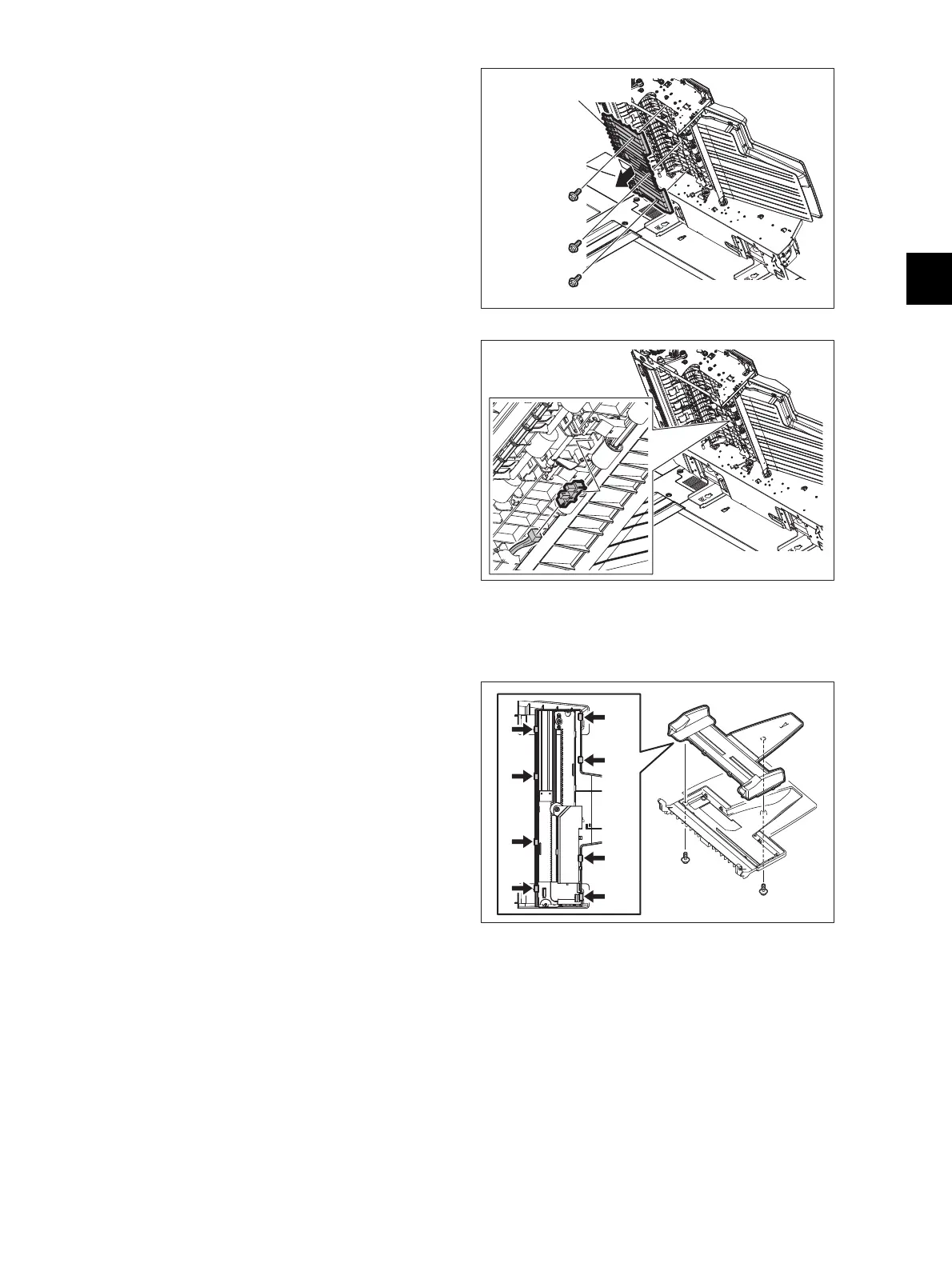

4.11.45 Original tray sensor (SR1)
(3) Remove 3 screws and take off the upper
reverse guide.
Fig. 4-860
(4) Disconnect 1 connector. Release 2 latches
and take off the original exit sensor.
Fig. 4-861
(1) Take off the original reverse tray.
P. 4-261"4.11.7 Original reverse tray"
(2) Remove 2 screws and release 8 latches to
take off the original side guide unit.
Fig. 4-862
Upper reverse guide
