DISASSEMBLY and REPLACEMENT

4 - 9

4.2 Control Panel

4.2.1 Control panel unit

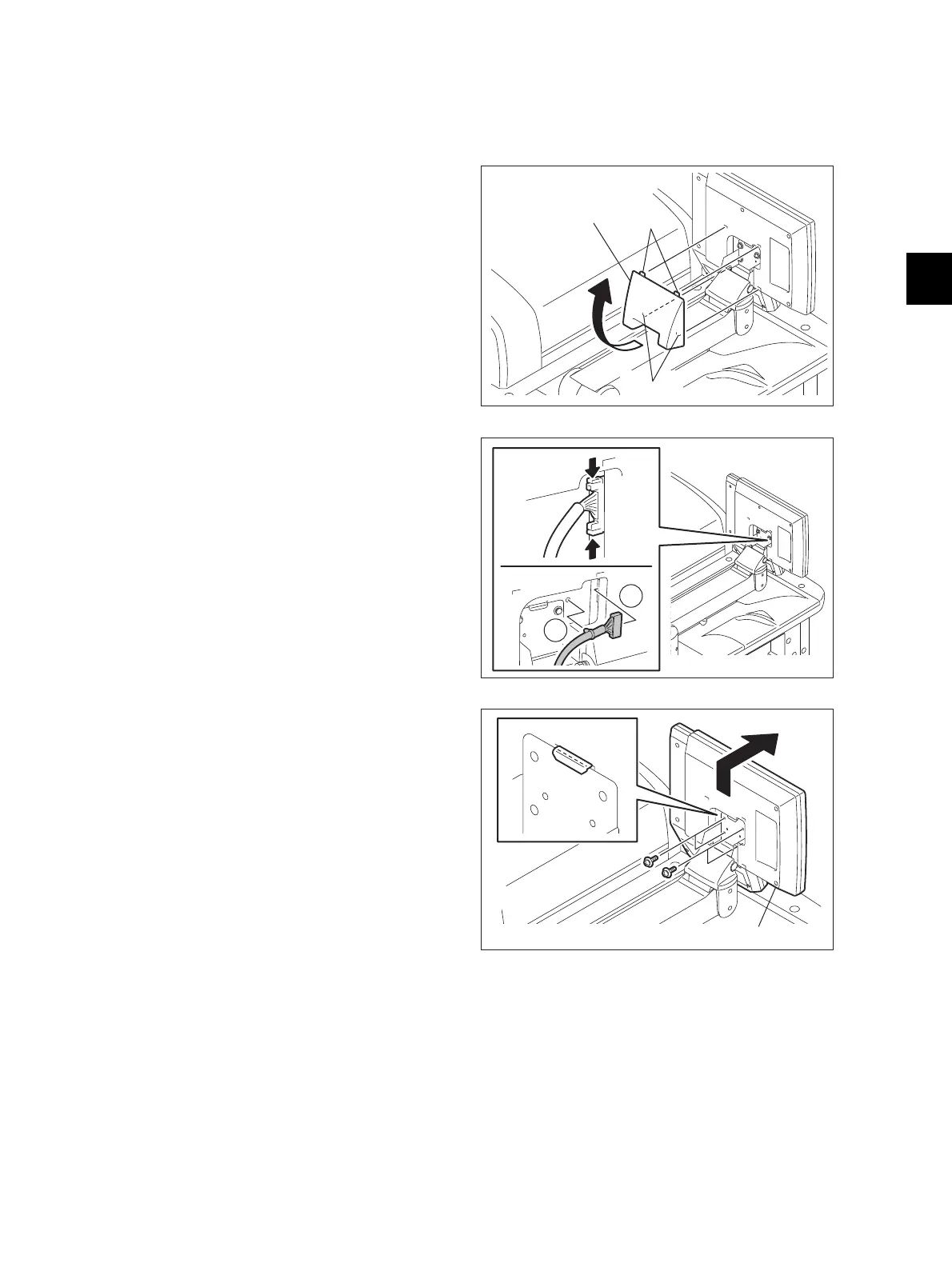

(1) Release 4 latches and then take off the

control panel hinge cover.

Fig. 4-23

(2) Disconnect 1 connector and release 1 clamp.

Fig. 4-24

(3) Remove 4 screws.

(4) Take off the control panel unit by lifting it up.

Fig. 4-25

Control panel

hinge cover

Latch

Control panel unit

Service Manual1
