DISASSEMBLY and REPLACEMENT
4 - 88
4.5.58 End fence stop position sensor (S113)
(1) Pull out the standby unit.
(2) Remove 2 screws, and then take off the front
fence.

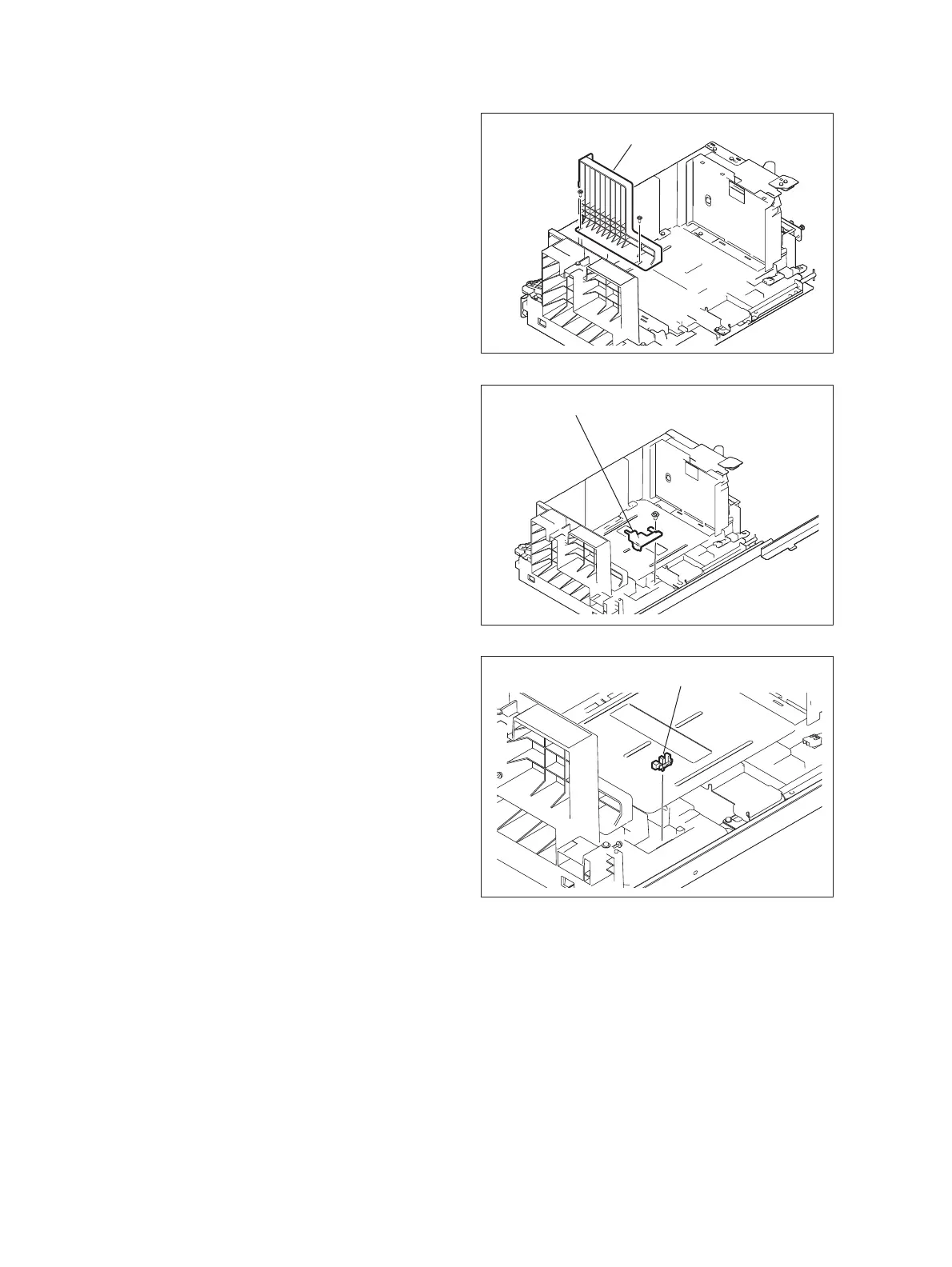

Fig. 4-257
(3) Remove 1 screw, and then take off the
sensor cover.
Fig. 4-258
(4) Disconnect 1 connector and release 3
latches. Then take off the end fence stop
position sensor.
Fig. 4-259
Front fence
Sensor cover
End fence stop position sensor
