DISASSEMBLY and REPLACEMENT

4 - 167

4.8.6 Image quality shutter solenoid (SOL3)

(1) Take off the image quality control unit

 P. 4-165"4.8.1 Image quality control unit"

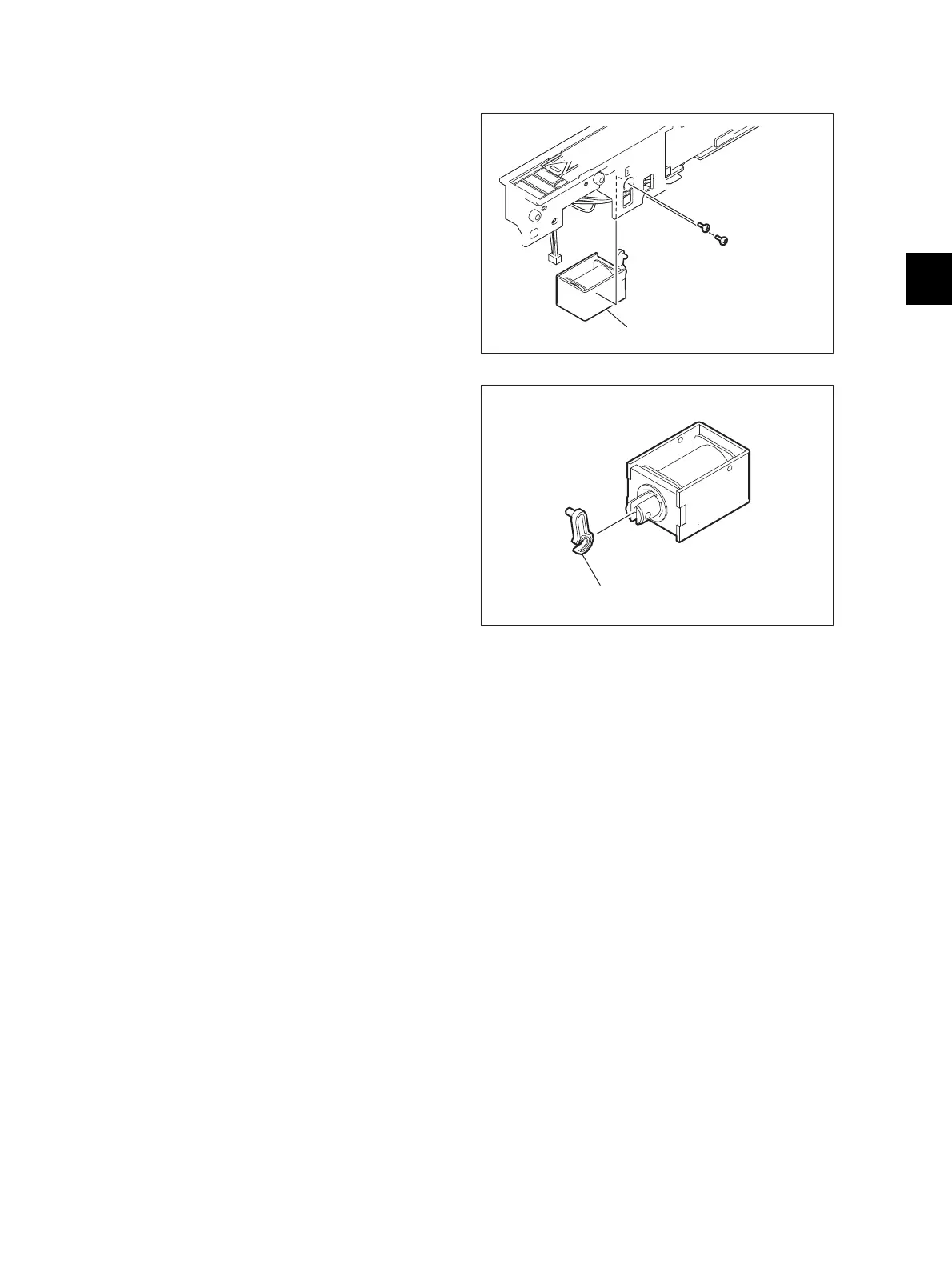

(2) Remove 2 screws and take off the Image

quality shutter solenoid.

Fig. 4-489

(3) Take off the link arm of the solenoid.

Fig. 4-490

Image quality shutter solenoid

Link arm

Service Manual1
