e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved
PREVENTIVE MAINTENANCE (PM)
7 - 32

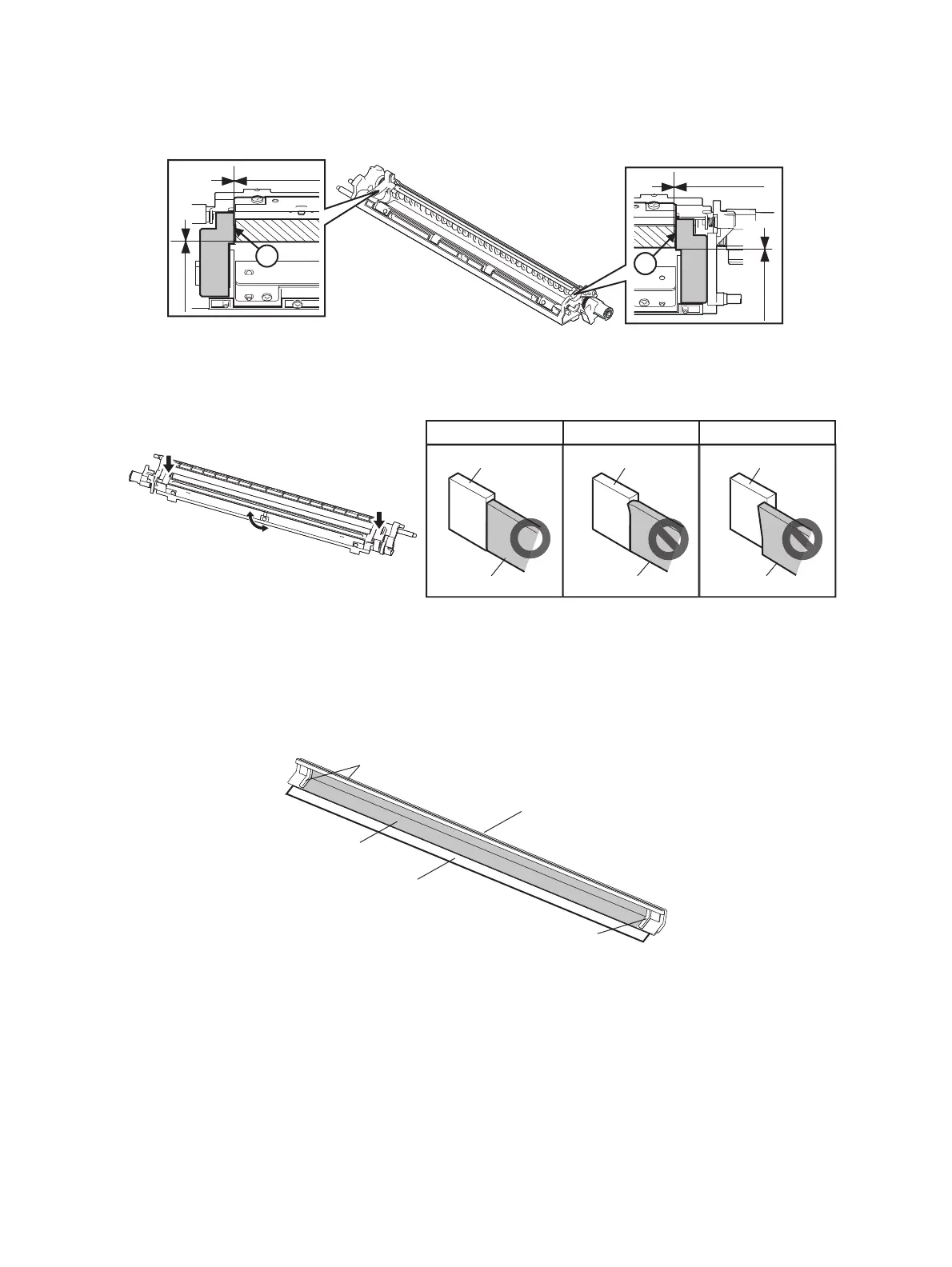

* l10: Transfer belt cleaner side seal
Be sure to attach the transfer belt cleaner side seals according to the criteria in the figure below.
Part A: Pay attention to the following. If the blade is caught by the side seal or comes up on to it,
the blade may turn up. If the gap between the blade and the side seal is too wide, this will cause
toner scattering.
Fig. 7-31
After the side seals are attached, move the bracket retaining the blade and check that it is neither
caught nor comes up on to the side seal.
Fig. 7-32
When replacing the transfer belt cleaner side seal, check if the molded part on the back side of
the removed recovery blade is dirty. Clean it if required.
Notes:
• Do not use alcohol because urethane foam will be removed.
• Cleaning on the back side of the Mylar is not necessary even if it is dirty.
Fig. 7-33
0~0.5 mm
0~0.5 mm
0~1 mm
0~1 mm
A
A
Side seal
Blade
Normal
Side seal
Blade
Side seal
Blade
Being caught Coming up on
Recovery blade
Mylar
Cleaning
Urethane foam
Urethane foam
To Next Page
