3
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
OUTLINE OF THE MACHINE
3 - 95
[ 2 ] Difference for Destination of Fuser Unit
The fuser unit for the MJD/MJC destination was developed for e-STUDIO5540C/6540C/6550C.
However, it has been integrated with the ASD/AUD destination for e-STUDIO5560C/6560C/6570C.

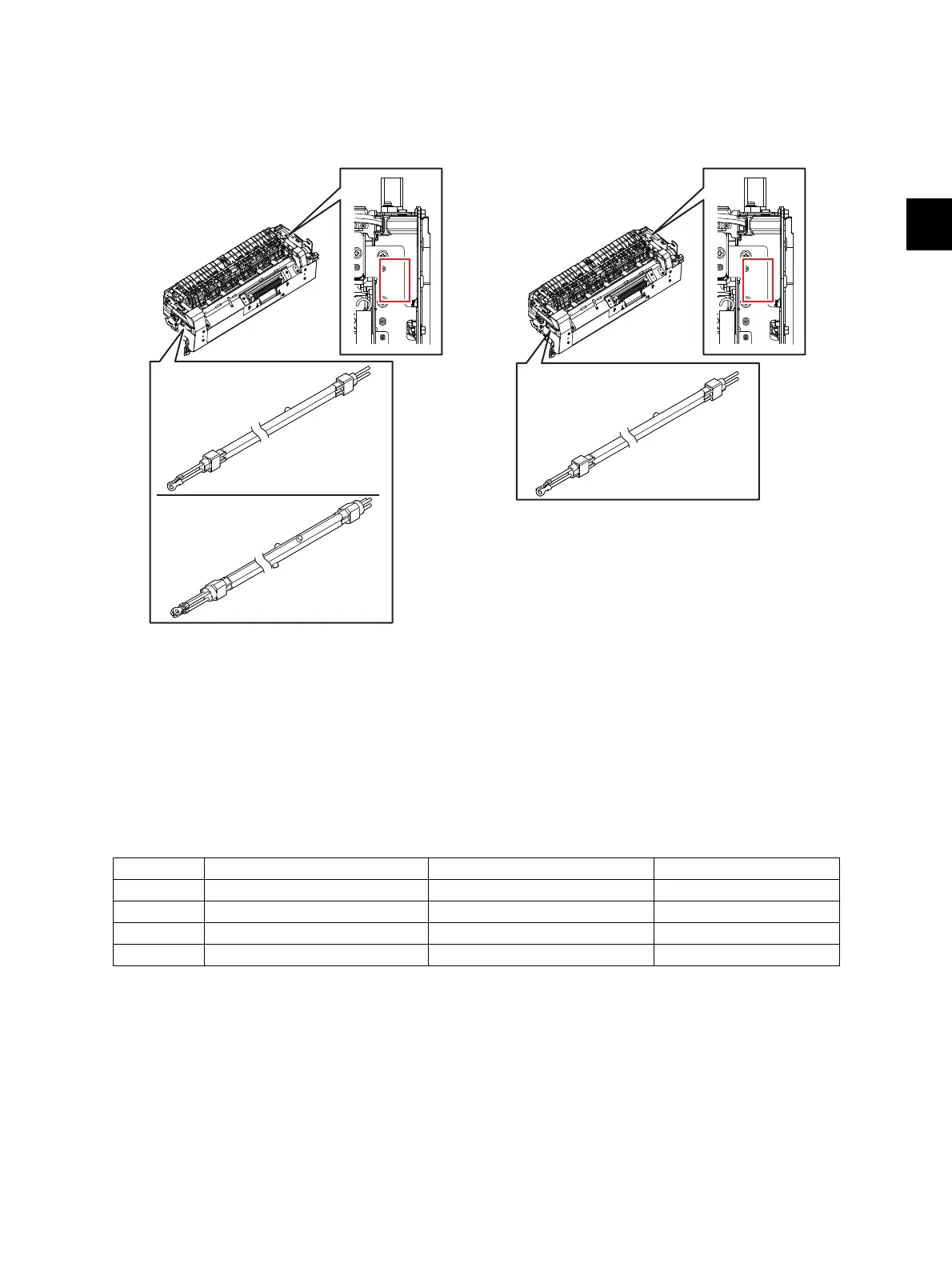

Fig. 3-55
Notes:
• The fuser unit (FUSER-FC65-220M) for the MJD/MJC destination for e-STUDIO5540C/
6540C/6550C is not available for e-STUDIO5560C/6560C/6570C. If the non-corresponding
fuser unit is installed mistakenly, a service call “C4B1” error will occur due to the incorrect
destination.
• Moreover, be sure not to install the fuser unit (FUSER-FC65-220A) with two heater lamps in
e-STUDIO5540C/6540C/6550C for the MJD/MJC destination. Otherwise, a service call
“C4B1” error will occur.
Combination of the mark and destination
Mark e-STUDIO5540C/6540C/6550C e-STUDIO5560C/6560C/6570C Remarks
115 NAD NAD
200A ASD, AUD, CND ASD, AUD, MJD/MJC
200M MJD/MJC N/A 3 heater lamps
200C N/A CND
ASD, AUD
(Mark: 200A)
ASD, AUD,MJD/MJC
(Mark: 200A)
MJD/MJC
(Mark: 200M)
Center heater lamp
Side heater lamp
Center heater lamp
Side heater lamp
Sub heater lamp
Center heater lamp
Side heater lamp
e-STUDIO5540C/6540C/6550C e-STUDIO5560C/6560C/6570C
200M
Mark
200A
Mark
To Next Page
