DISASSEMBLY and REPLACEMENT
4 - 141
4.7.2 2nd transfer facing roller cleaning pad
4.7.3 Transfer belt cleaning unit
(1) Take off the front lower cover.
P. 4-1"4.1.1 Front lower cover"
(2) Remove 1 screw and then take off the 2nd
transfer facing roller cleaning pad [1].

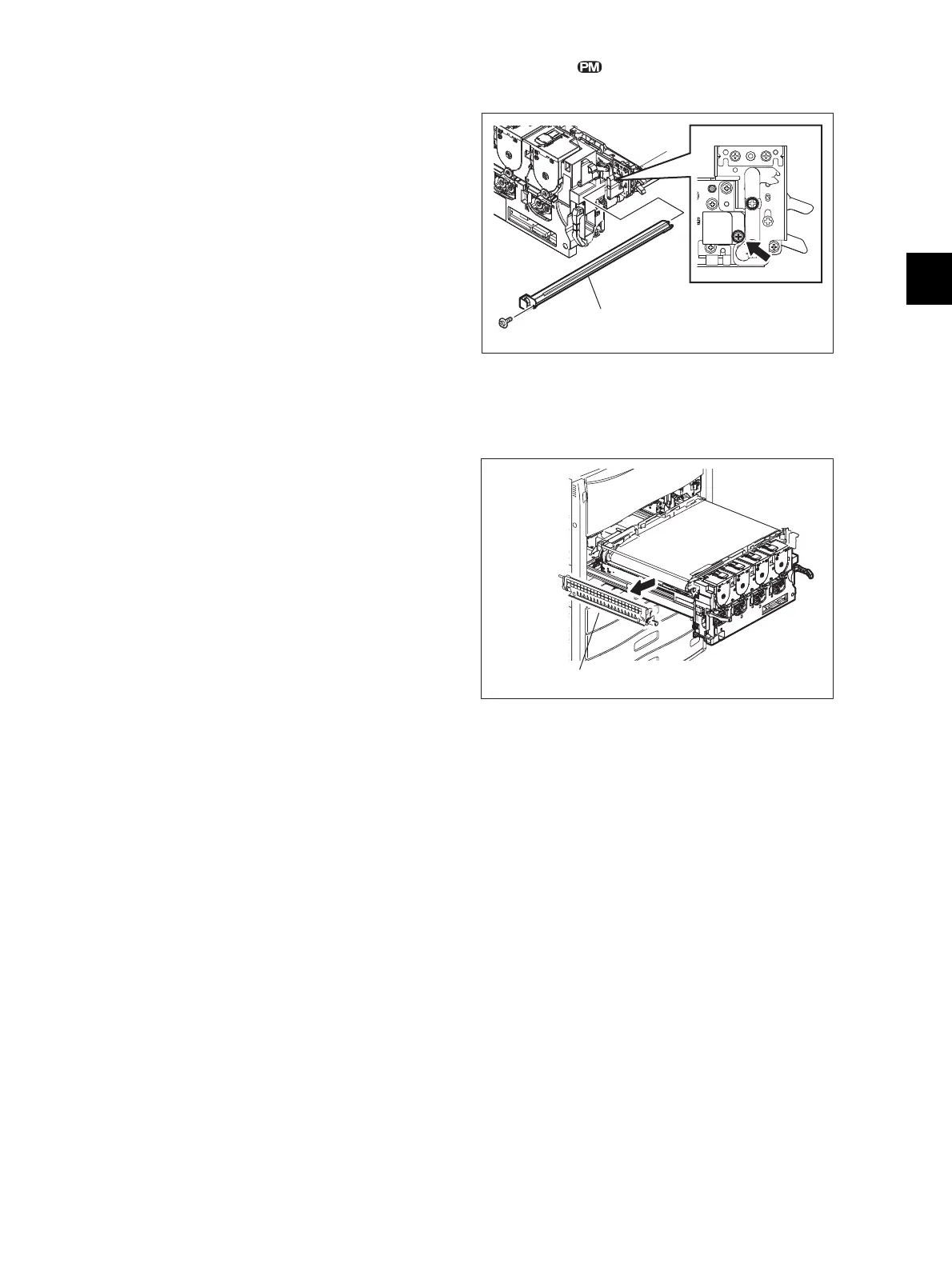

Fig. 4-412
(1) Pull out the transfer belt unit.
P. 4-139"4.7.1 Pulling out the transfer belt
unit"
(2) Take off the transfer belt cleaning unit.
Fig. 4-413
[
1
]
Transfer belt cleaning unit
