SETTING ADJUSTMENT

6 - 23

6.1.8 Scanner-related image dimensional adjustment

[A] Image distortion

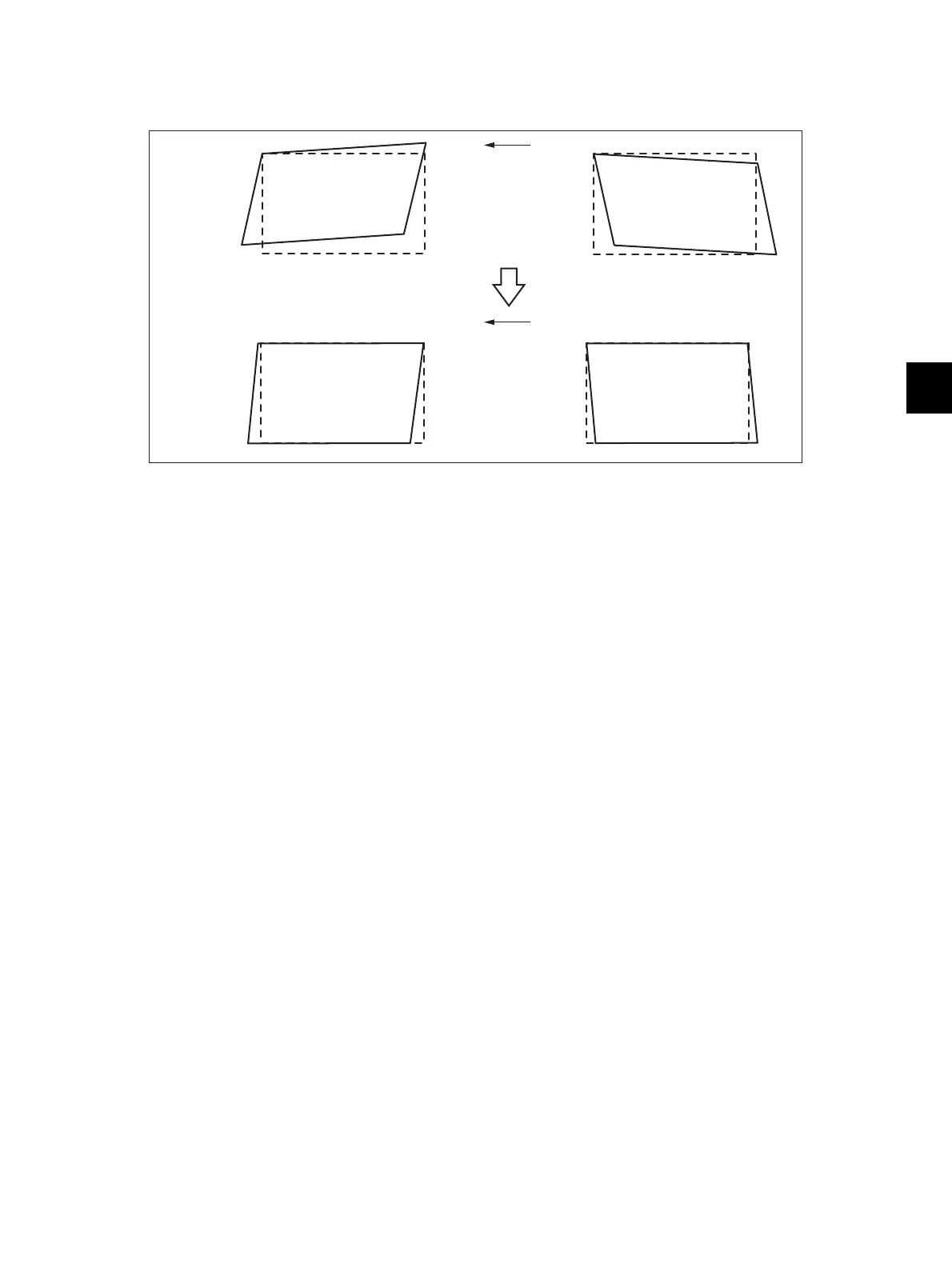

Fig.6-15

(1) While pressing [0] and [5] simultaneously, turn the power ON.

(2) Press [FAX] to make a copy of any image on a sheet of A3/LD paper.

(3) Key in [3033] and press the [START] button to move the carriage to the adjustment position.

Feeding direction

Step 1

Step 2
