Name: Toshiba e-STUDIO 6550C e-STUDIO 5560C
Brand: Toshiba
Rating: 4 (1 reviews)

To Next Page

To Previous Page

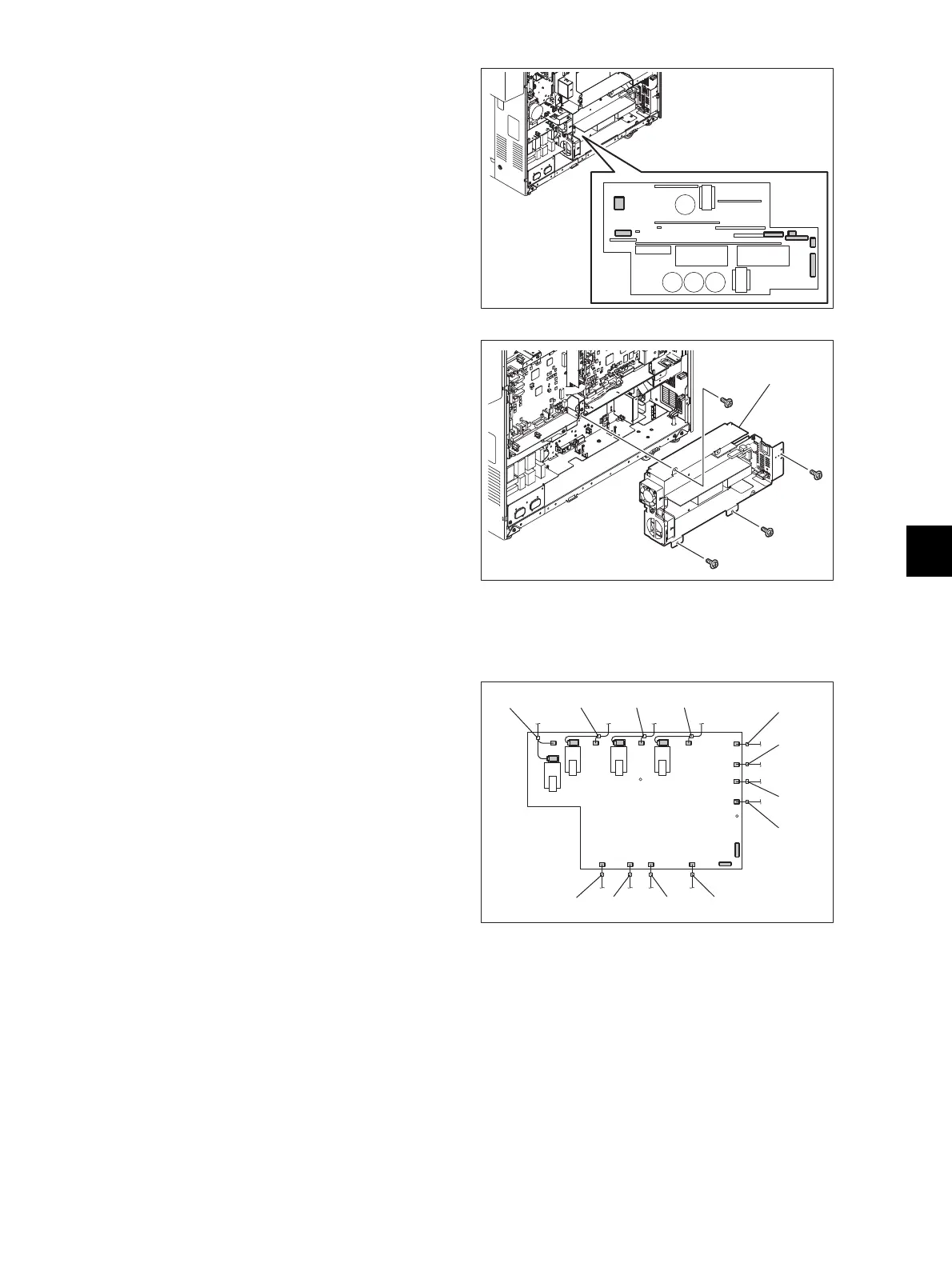

REPLACEMENT OF PC BOARDS/HDD

9 - 19

9.1.16 High-voltage transformer-1 (HVT1)

(7) Disconnect 6 connectors.

Fig. 9-55

(8) Remove 4 screws and take off the switching

regulator [1].

Fig. 9-56

(1) Take off the LGC board case.

 P. 9-6"9.1.7 LGC board case"

(2) Take off the PFC board case.

 P. 9-8"9.1.9 PFC board case"

(3) Disconnect 18 connectors.

Fig. 9-57

[

]

YellowRed

Red

BlueBlack

Blue

Black

Yellow

Red

Blue

Black

Yellow
