DISASSEMBLY and REPLACEMENT
4 - 47
4.5.5 Bypass pickup roller
(3) Disconnect 1 connector and release 3
latches. Then take off the bypass paper
sensor.

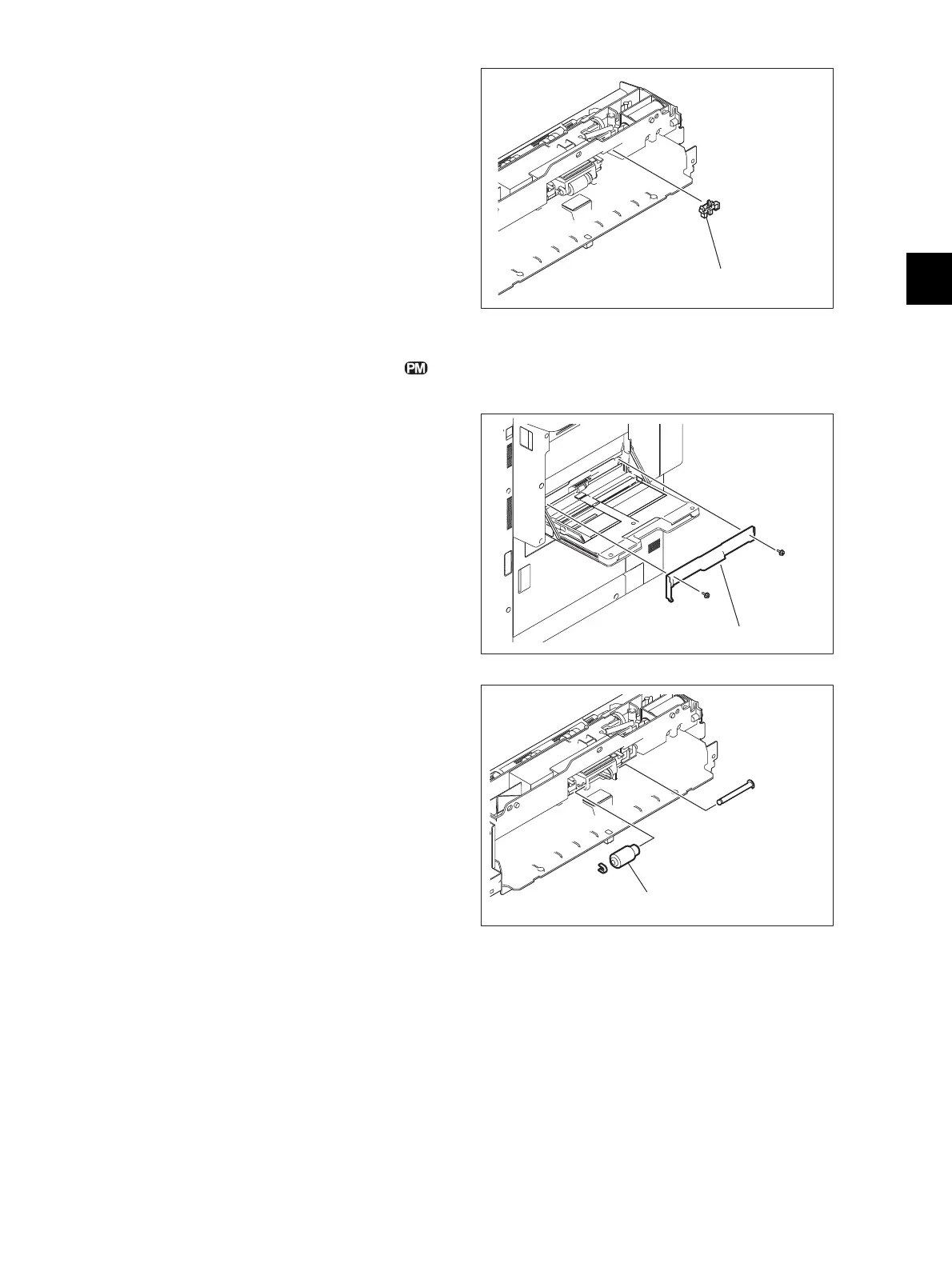

Fig. 4-132
(1) Remove 2 screws and then take off the SFB
upper cover.
Fig. 4-133
(2) Remove 1 clip and pull out the shaft. Then
take off the bypass pickup roller.
Fig. 4-134
Bypass paper sensor
SFB upper cover
Bypass pickup roller

Toshiba e-STUDIO 6550C e-STUDIO 5560C Specifications

General

Category	All in One Printer
Print Speed (Color)	55 ppm
Copy Resolution	600 x 600 dpi
Duplex Printing	Yes
Paper Capacity	3, 700 sheets
Maximum Paper Size	A3
Type	Color
Scan Resolution	600 dpi
Connectivity	USB, Ethernet
Supported Paper Sizes	A4, A5, B5
