DISASSEMBLY and REPLACEMENT
4 - 1
4. DISASSEMBLY and REPLACEMENT
4.1 Disassembly and Replacement of Covers
4.1.1 Front lower cover
4.1.2 Front cover

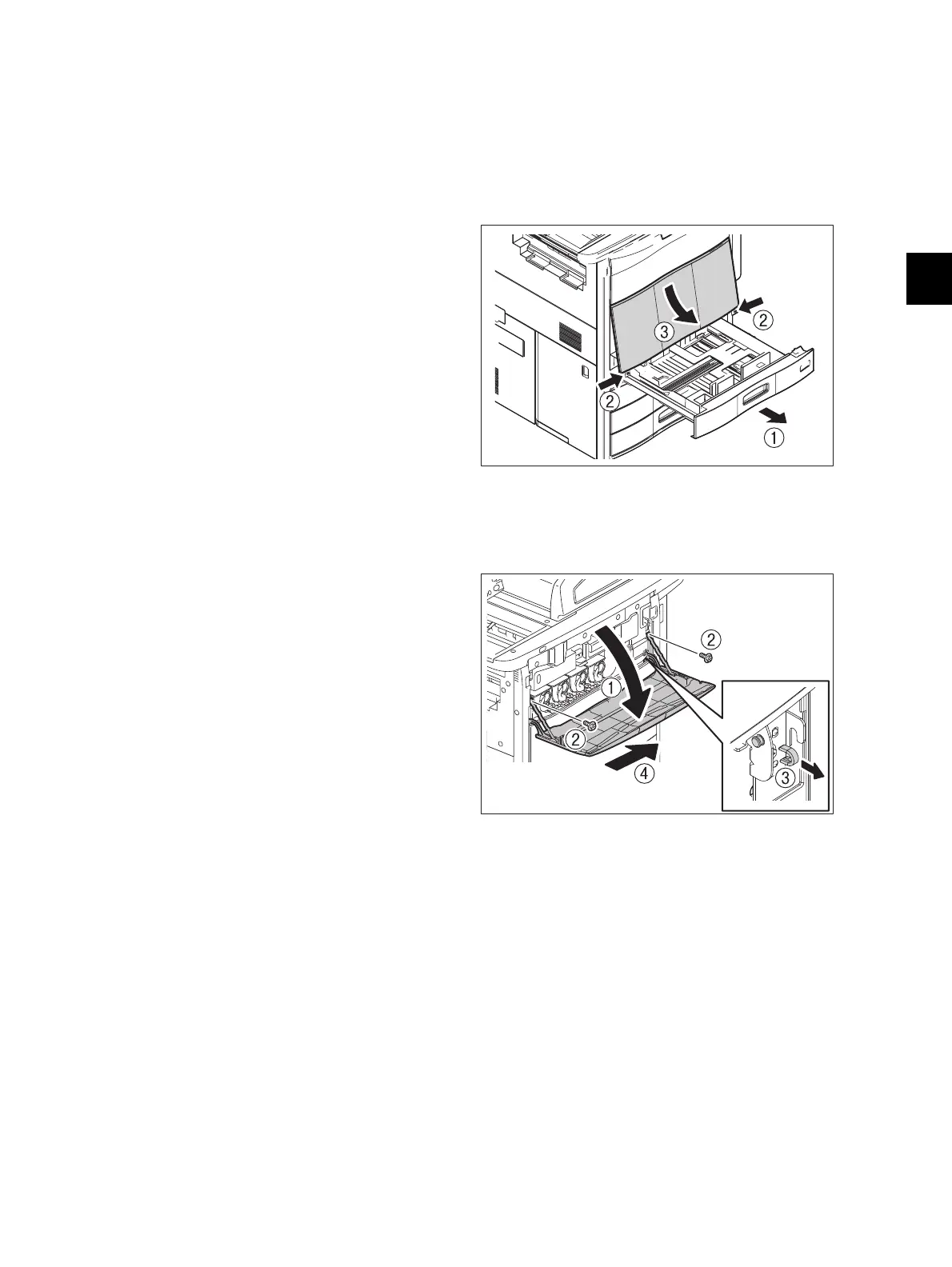

(1) Pull out the 1st drawer.
(2) Loosen 2 screws.
(3) Take off the front lower cover.
Fig. 4-1
(1) Take off the front lower cover.
 P. 4-1"4.1.1 Front lower cover"
(2) Open the front cover.
(3) Remove 2 screws and take off the cover
support.
(4) Remove 1 clip.
(5) Lift up the supporting point of the left side
hinge and move the front cover to the right
side to take it off.
Fig. 4-2
