Toshiba e-STUDIO 6550C e-STUDIO 5560C User Manual

9
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
REPLACEMENT OF PC BOARDS/HDD
9 - 13
9.1.12 HDD cooling fan (F28) (e-STUDIO5540C/6540C/6550C only)

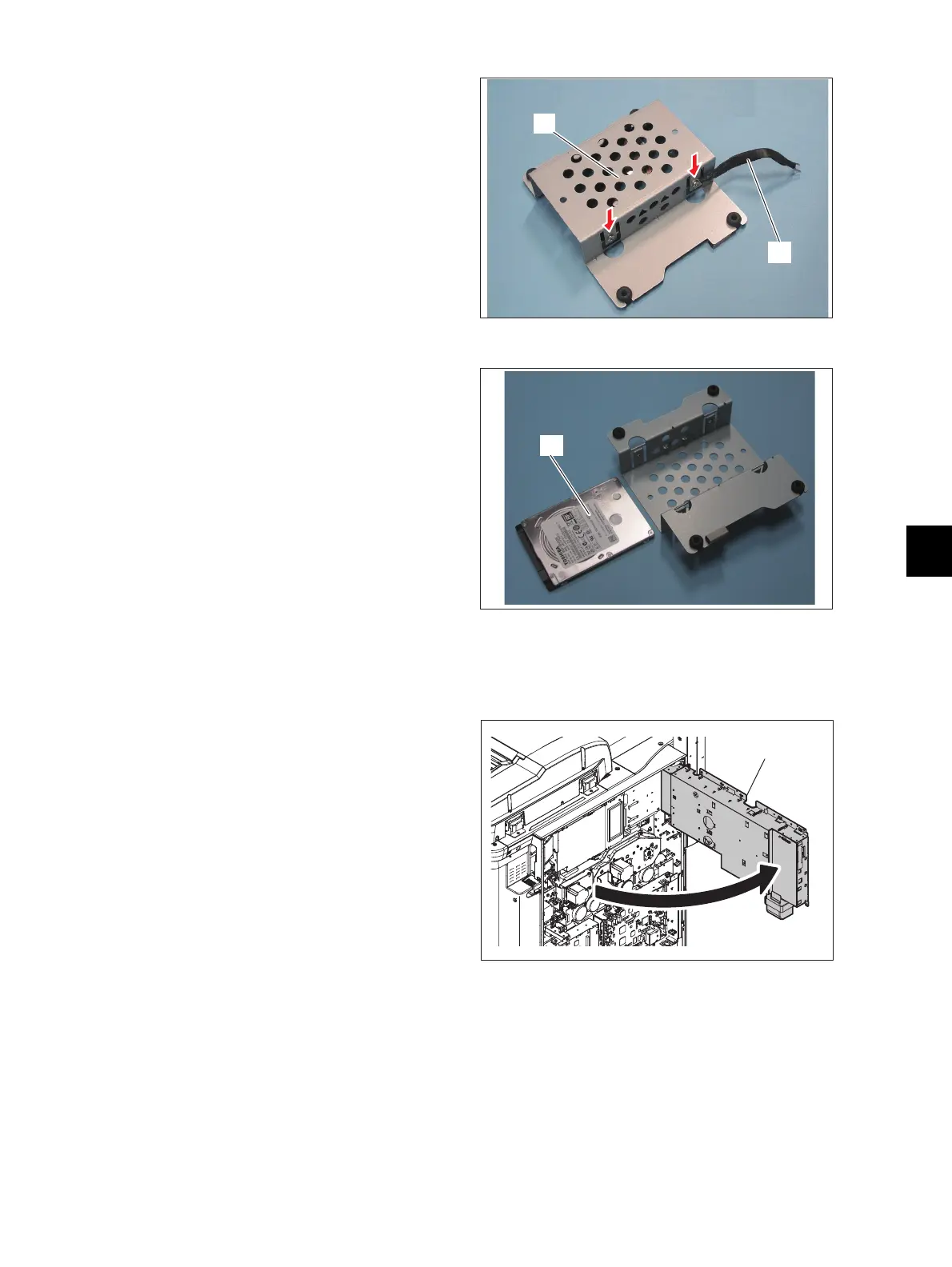

(6) Remove 1 screw and the ground wire [1].
(7) Remove 1 screw and take off the bracket [2].
Fig. 9-36
(8) Take off the hard disk [1].
Fig. 9-37
(1) Open the SYS board case [1] for approx. 90
degrees.
 P. 9-2"9.1.3 SYS board case"
Notes:
Open the board case gently during
maintenance work or similar.
Fig. 9-38
[1]
[2]
[1]
[
1
]
