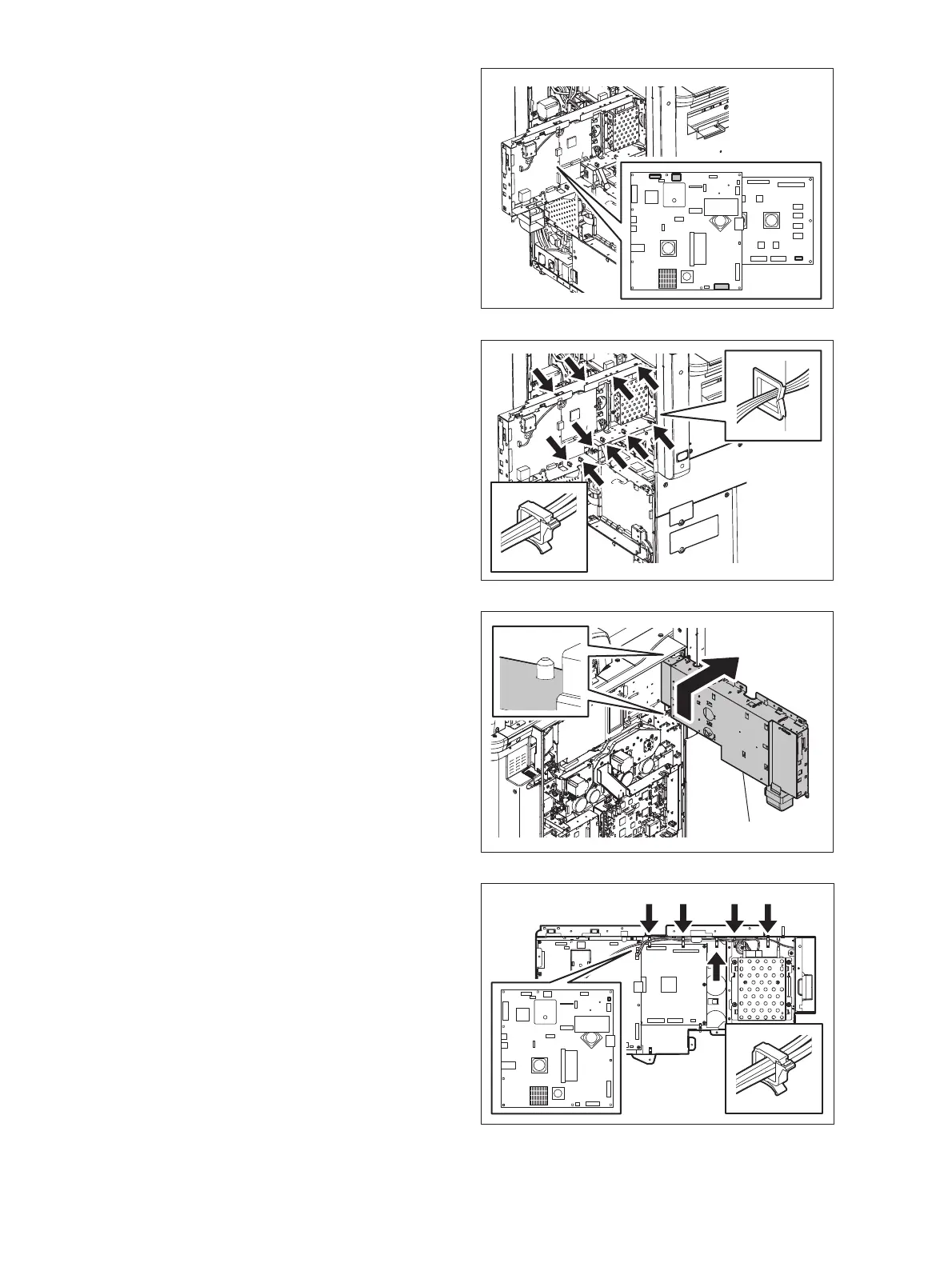

REPLACEMENT OF PC BOARDS/HDD

9 - 14

(2) Disconnect 1 USB terminal and 3

connectors.

Fig. 9-39

(3) Release a harness from 1 harness clamp

and 10 harness clamps with a lock.

Fig. 9-40

(4) Lift the SYS board case [1] to remove it.

Fig. 9-41

(5) Disconnect 1 connector.

(6) Remove 5 harness clamps with a lock.

Fig. 9-42

[

]
