Toshiba e-STUDIO 6550Ce-STUDIO 5560C - Exit Paper Cooling Fan (Front)

4
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
DISASSEMBLY and REPLACEMENT
4 - 233
4.10.29 Exit paper cooling fan (front) (F5)

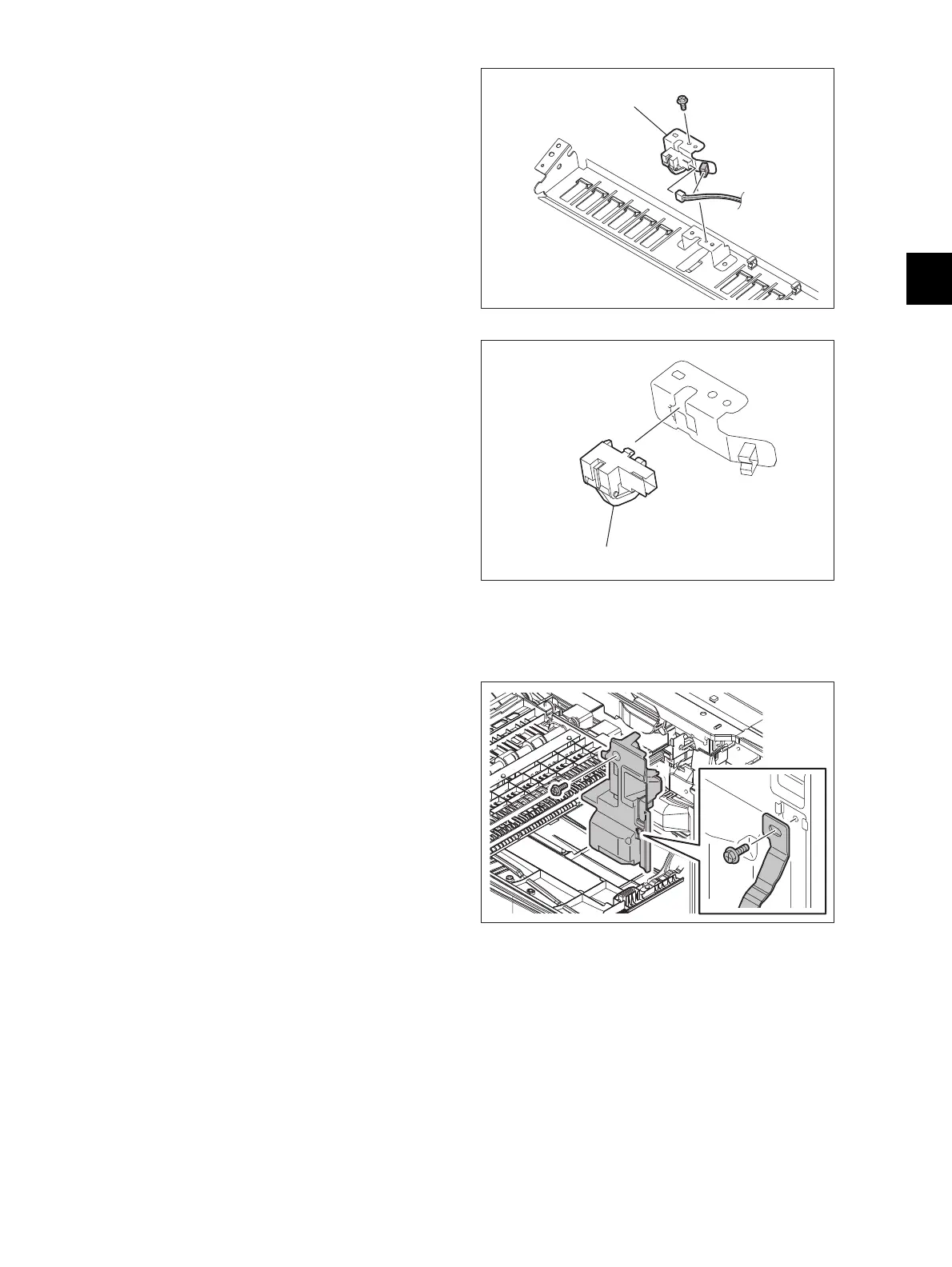

(5) Remove 1 screw and then take off the
sensor bracket.
(6) Release the harness from the clamp and
then disconnect the connector.
Fig. 4-676
(7) Take off the reverse section stationary jam
detection sensor from the sensor bracket.
Fig. 4-677
(1) Take off the top front cover.
 P. 4-2"4.1.5 Top front cover"
(2) Pull out the bridge unit.
(3) Remove 2 screws and then take off the inner
cover.
Fig. 4-678
Sensor bracket
Reverse section stationary jam detection sensor
