Toshiba e-STUDIO 6550Ce-STUDIO 5560C - Upper Exhaust Fan Cover; Top Rear Cover

4
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
DISASSEMBLY and REPLACEMENT
4 - 7

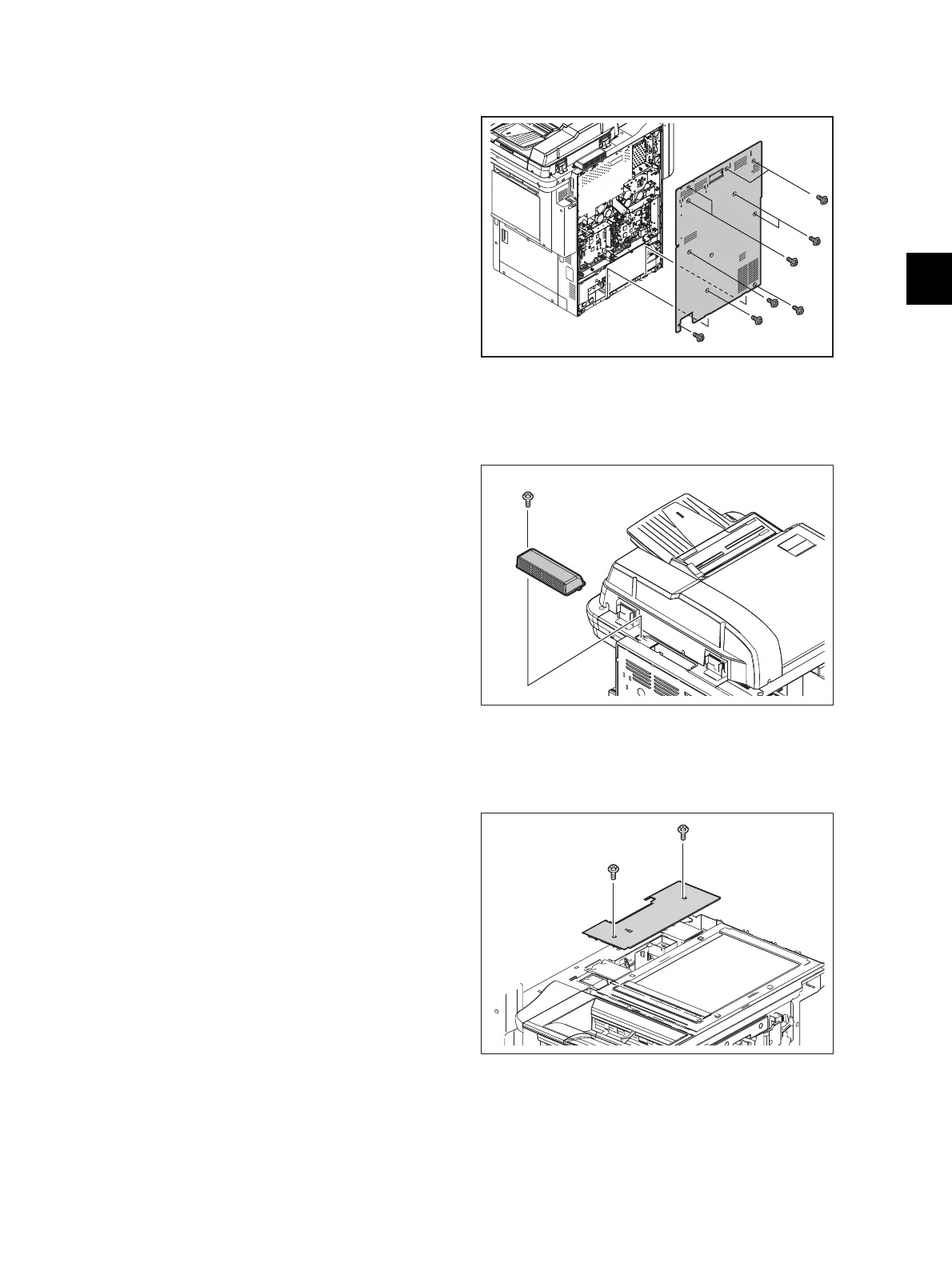

4.1.18 Rear cover
4.1.19 Upper exhaust fan cover
4.1.20 Top rear cover
(1) Remove 10 screws and take off the rear
cover.
Fig. 4-18
(1) Remove 1 screw and take off the upper
exhaust fan cover.
Fig. 4-19
(1) Take off the RADF.
 P. 4-256"4.11.1 RADF"
(2) Take off the top left cover.
 P. 4-3"4.1.6 Top left cover"
(3) Take off the upper exhaust fan cover.
 P. 4-7"4.1.19 Upper exhaust fan cover"
(4) Remove 2 screws and take off the top rear
cover.
Fig. 4-20
