DISASSEMBLY and REPLACEMENT

4 - 134

4.6.50 Toner cooling exhaust fan (F31)

(1) Take off the left top cover.

 P. 4-4"4.1.10 Left top cover"

(2) Disconnect 1 connector, remove 2 screws

and take off the duct.

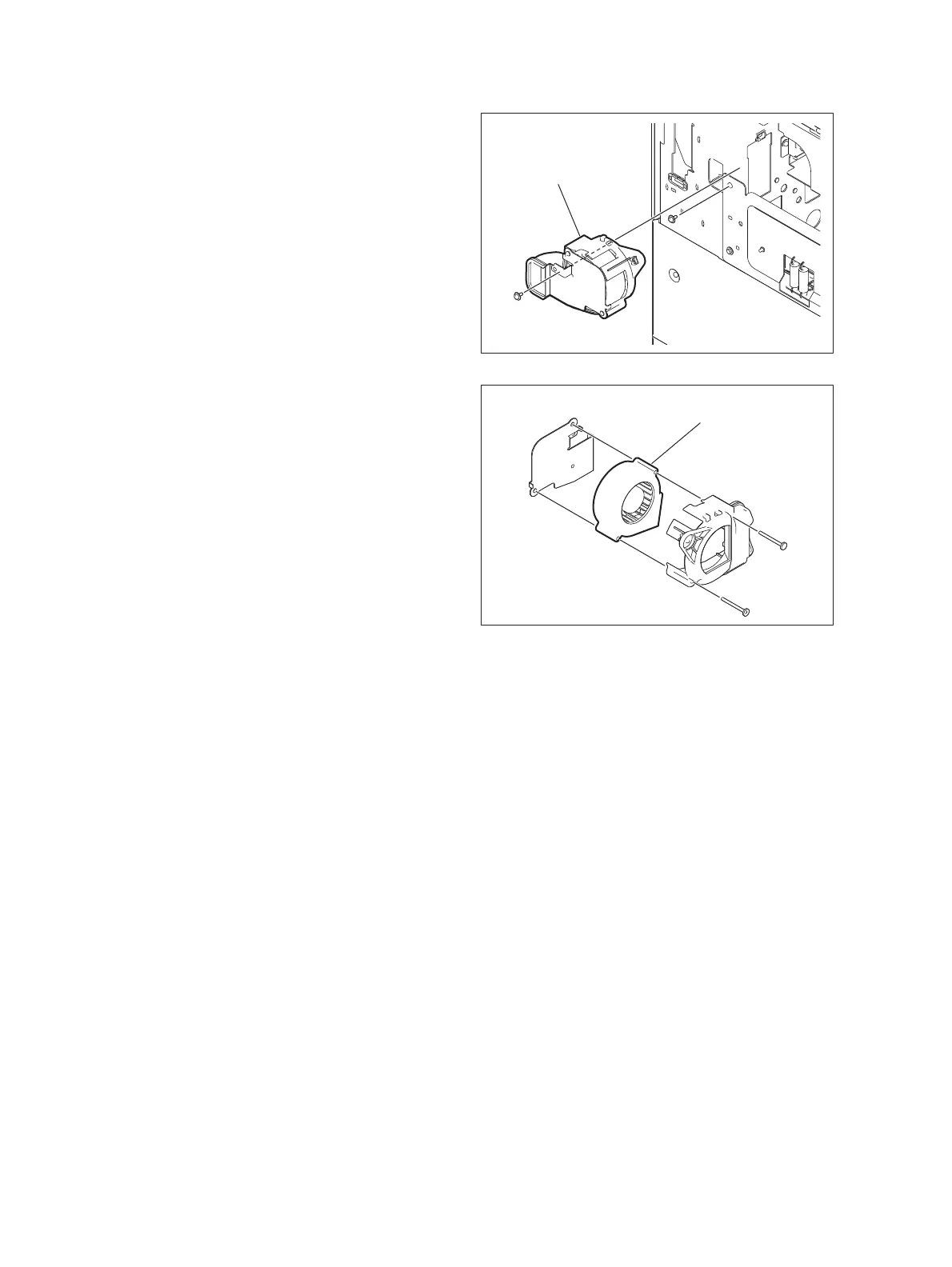

Fig. 4-392

(3) Remove 2 screws and take off the toner

cooling exhaust fan.

Fig. 4-393

Duct

Toner cooling exhaust fan
