6.6 Scanner
6.6.1 Adjustment carriages-1 and -2 positions
(1) Take off the RADF.
P. 4-256"4.11.1 RADF"
(2) Take off the original glass.
P. 4-15"4.3.1 Original glass"
(3) Take off the top right cover.
P. 4-2"4.1.3 Top right cover"
(4) Take off the top rear cover.
P. 4-7"4.1.20 Top rear cover"
(5) Move the carriage-2 toward the exit side.
Notes:
Rotate the drive pulley to move the carriage.
(6) Loosen the screws fixing the front side pulley
bracket, make the sections A and B of the
carriage-2 touch with the inside of the exit
side frame and screw them up.
Notes:
Make sure that the sections A and B of the
carriage-2 touch with the exit side frame.

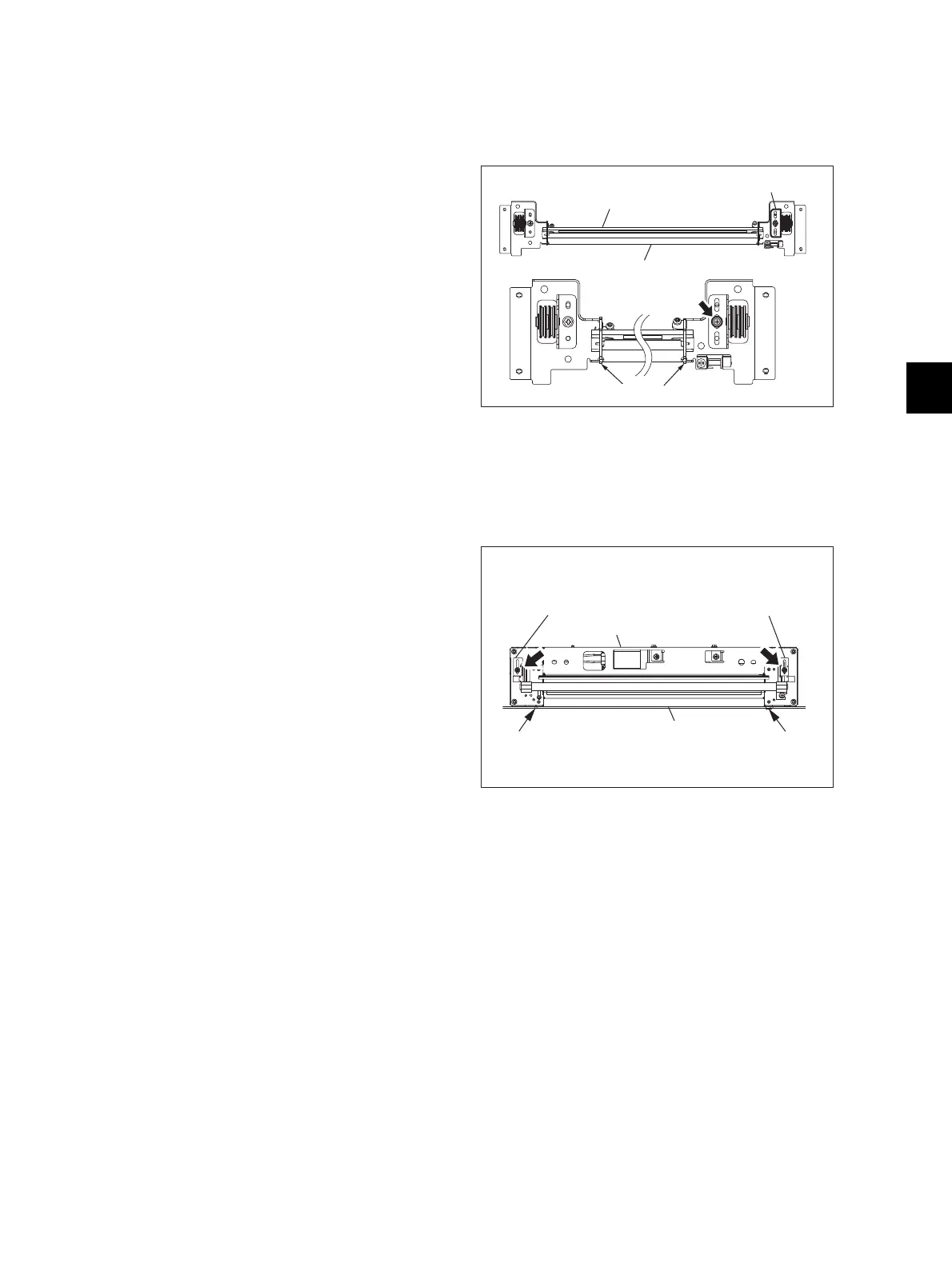

Fig.6-26
(7) Put carriage-1 on the rail. Then make
sections C and D of carriage-1 touch the
inside of the exit side frame and tighten the
front and rear sides of the bracket with the
screws.
Fig.6-27
B
A
Carriage-2
Pulley bracket
Exit side frame
Enlarged view of carriage
[
Rear
] [Front]
Carriage-1
[
Rear
]
[
Front
]
D
C
Bracket
Bracket
Exit frame
Enlarged view of carriage
