© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
DISASSEMBLY and REPLACEMENT
4 - 57

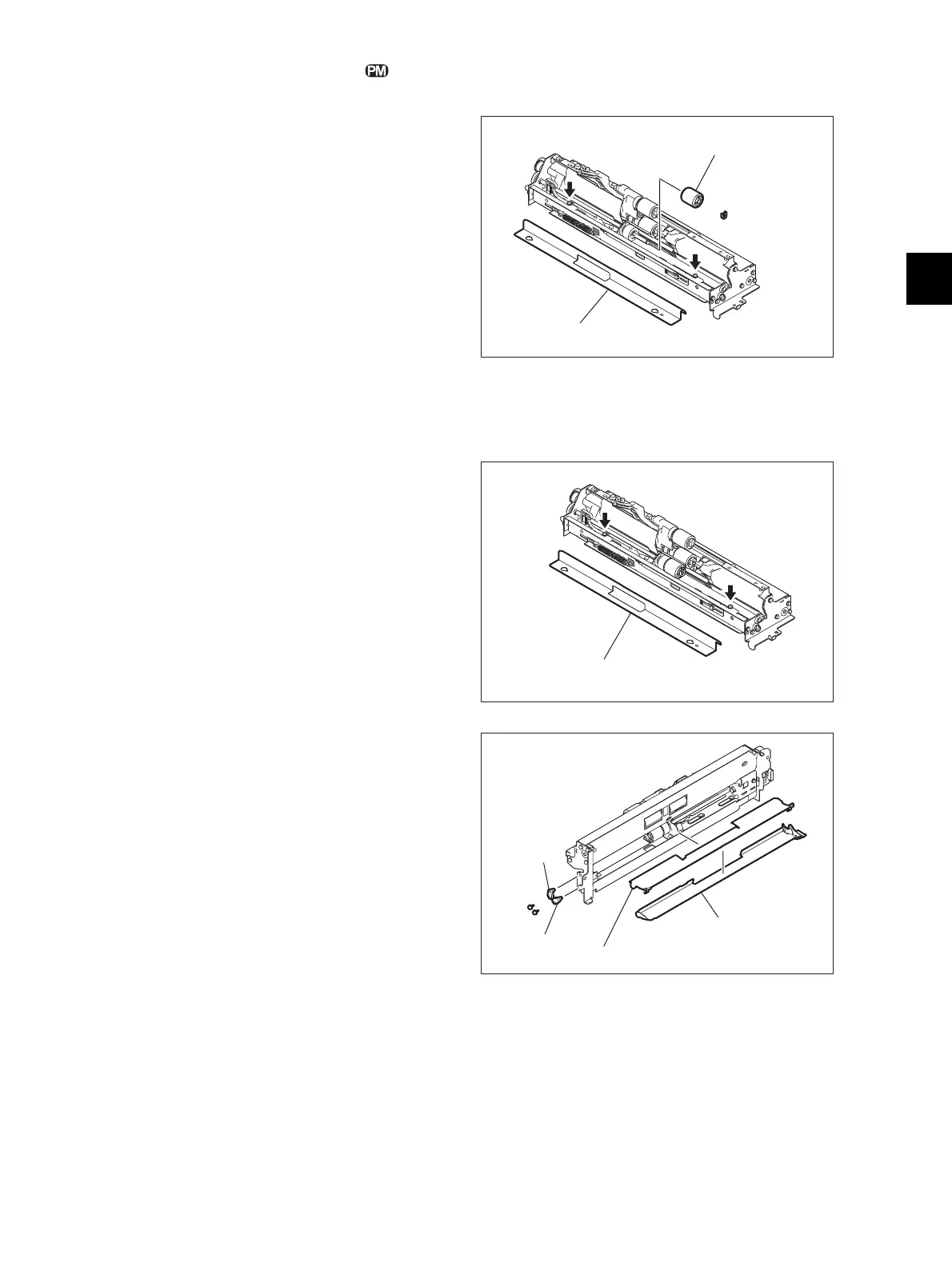

4.5.17 Separation roller
4.5.18 Transport roller
(1) Take off the drawer feeding unit.
P. 4-55"4.5.14 Drawer feeding unit"
(2) Loosen 2 screws and take off the paper
guide A.
(3) Remove 1 clip and take off the separation
roller.
Fig. 4-162
(1) Take off the drawer feeding unit.
P. 4-55"4.5.14 Drawer feeding unit"
(2) Loosen 2 screws and take off the paper
guide A.
Fig. 4-163
(3) Remove 2 screws and 2 holder, and then
take off the paper guide B and paper guide
C.
Fig. 4-164
Paper guide A
Separation roller
Paper guide C
Holder
Holder
Paper guide B
To Next Page
