Toshiba e-STUDIO 6550C e-STUDIO 5560C User Manual

e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY and REPLACEMENT
4 - 76

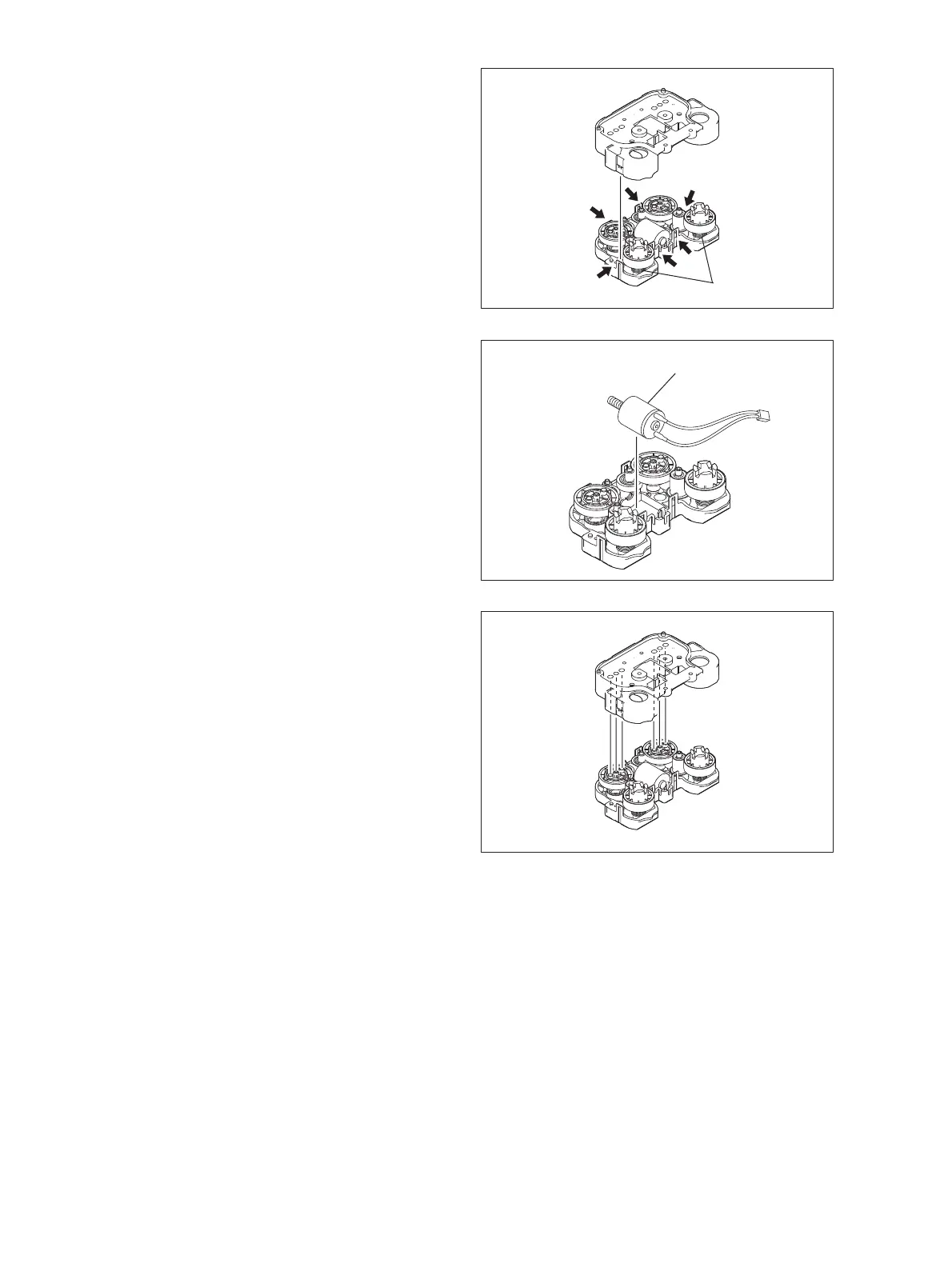

(4) Place the unit with its coupling up and
release 6 latches to take off the cover.
Notes:
Be careful in taking off the cover because
there is a spring in the tray drive unit.
Fig. 4-221
(5) Take off the tray-up motor.
Fig. 4-222
Notes:
Match the boss of the gear with the hole of
the cover when installing the motor.
Fig. 4-223
Spring
Tray-up motor
